Precise Zirconia Ceramic Rod / Pin Gauge / Oxygen Bar For Machining Ceramic Parts
Advantages of Zirconia ceramic rod / bar /pin gauge:
2. Long Service Life.
3. High polishing surface.
4. Superior Mechanical Strength.
5. High Corrosion and Wear Resistance.
6. Good Insulation Performance Precision.
7. High Temperature and Pressure Resistance.
8. High Purity Zirconia and Alumina Ceramic Material.
- High hardness, long service life, not easy to break and wear resistance.
- Non-conductive, anti-static, ceramic material itself with the insulation of electricity and magnetism properties.
- Corrosion resistance, high temperature resistance, can be applied to a specific environment, such as acid and alkali resistance.
They deliver 10 times longer working life than metal rod / tube.
|Properties||Units||95 Alumina||99 Alumina||Zirconia|
|Density||ɡ / cm3||3.65||3.92||5.95 - 6.0|
|Coefficient of Thermal Expansion||10-6 / K||7.9||8.5||10.5|
|Modulus of Elasticity Young’s Mod||Gpa||280||340||210|
|HV Hardness||Mpa||1400||1650||1300 - 1365|
|Flexural Strength @ Room Temperature||Mpa||280||310||950|
|Flexural Strength @ 700℃||Mpa||220||230||210|
|Compressive Strength@Room Temperature||Mpa||2000||2200||2000|
|Fracture Toughness||Mpa * m½||3.8||4.2||10|
|Heat Conductivity @ Room Temperature||W / m * k||18 - 25||26 - 30||2.0 - 2.2|
|Electrical Resistivity @ Room Temperature||Ω*mm2 / m||＞1015||＞1016||＞1015|
|Max Application Temperature||℃||1500||1750||1050|
|Resistance to Acid Alkaline||/||High||High||High|
|Dielectric Strength||KV / mm||16||22||/|
|Thermal Shock Resistance||Δ T ( ℃ )||220||180 - 200||282 - 350|
|Tensile Strength @ 25℃||Mpa||200||248||252|

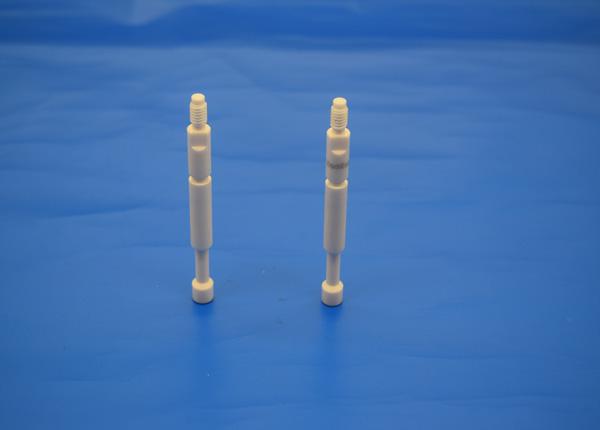

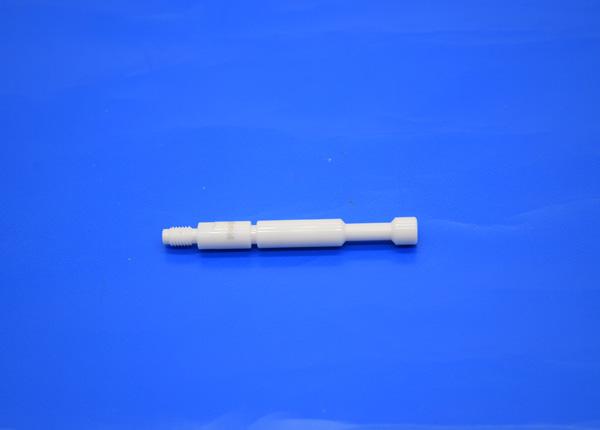

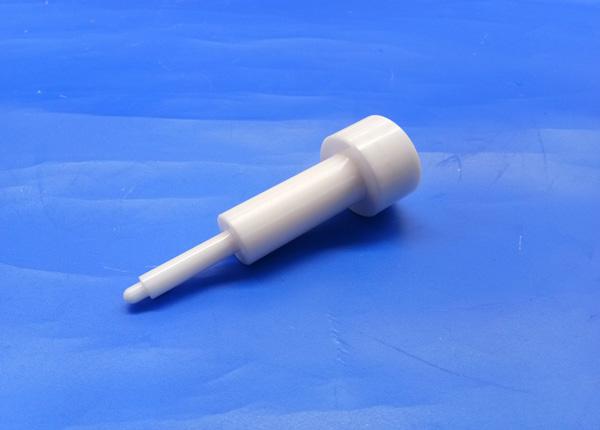

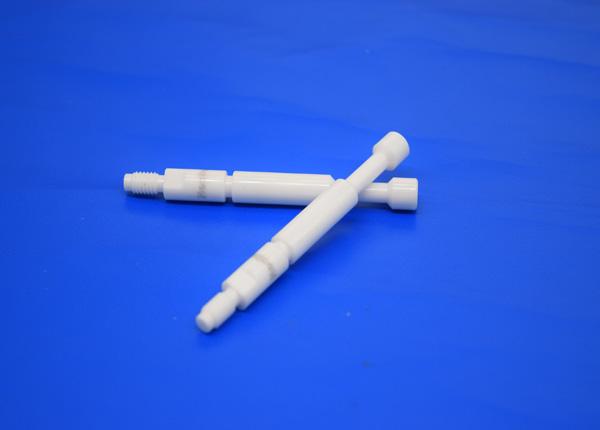

ceramic pin / pin gauge

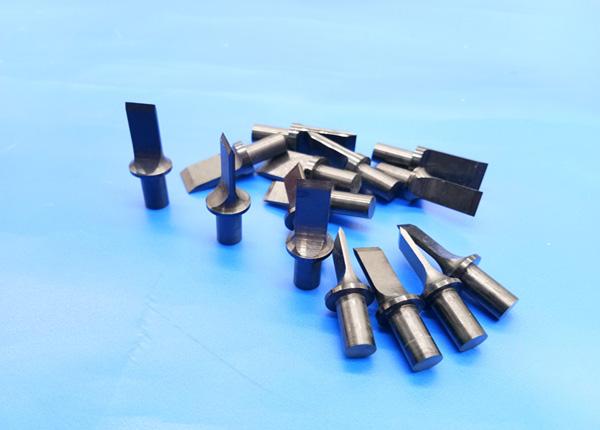

Ceramic burin / carver / graver
Packaging and Shipping
Zirconia ceramic rod / bar /pin gauge will be packed in a bubble bag individually, then separated by a foam, finally put in standard export carton packing, or OEM packing.
Shipped by Air ( DHL, TNT, UPS, Fedex, EMS ), or Sea transportation.
Who Are We?
Mingrui is a professional factory with years OEM experience in manufacturing industrial ceramic parts.
What Do We Do?
We produce (OEM ) strengthened structure zirconia and alumina ceramic rod, ring, tube, shaft, plate, sleeve, bushing, washer, valve, plunger, pin, nozzle and ceramic arm, etc., they are applicable to instruments, medical instruments, clocks and electronic products, mills, energy and power, machine and metals, autocar and military, spaceflight and some other high-end fields.
Our products with some certificates, such as , CE, TUV, etc..
Production Process Show
One-stop production, from the raw material powder to final product.
