Al2O3 Alumina Ceramic Pin Gauge Set / Spot Welding Pin With Strong Impact Resistance

Al2O3 Alumina Ceramic Pin Gauge Set / Spot Welding Pin With Strong Impact Resistance

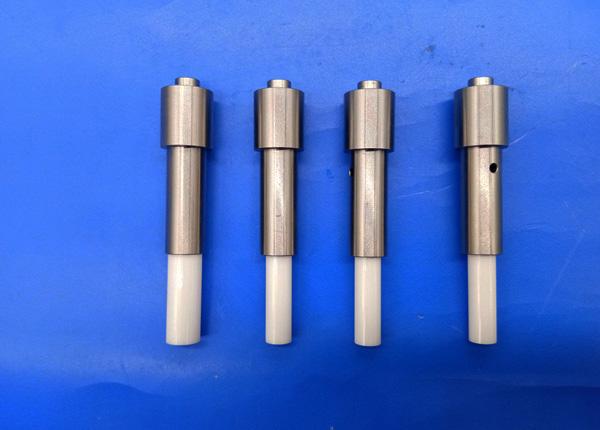

    • Al2O3 Alumina Ceramic Pin Gauge Set / Spot Welding Pin With Strong Impact Resistance

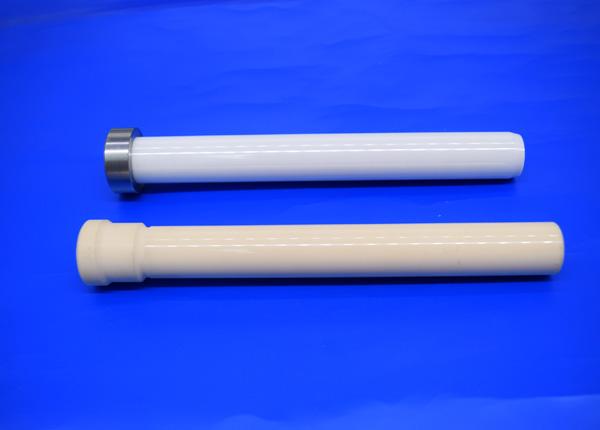

    • Al2O3 Alumina Ceramic Pin Gauge Set / Spot Welding Pin With Strong Impact Resistance

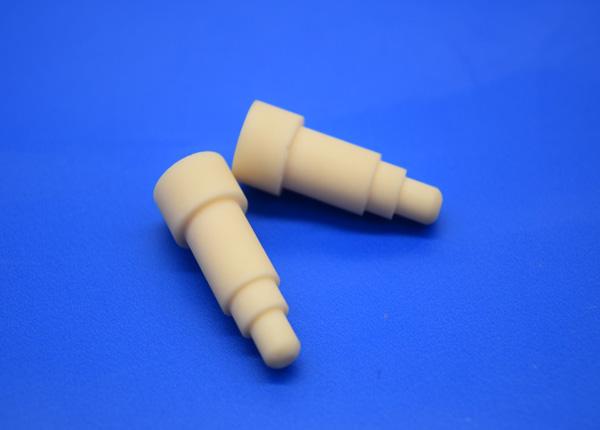

    • Al2O3 Alumina Ceramic Pin Gauge Set / Spot Welding Pin With Strong Impact Resistance

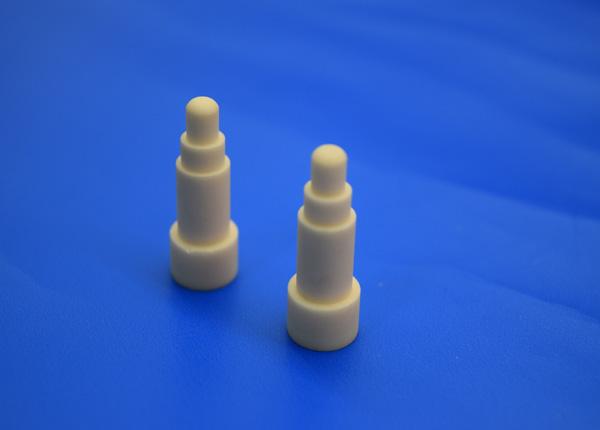

  • Al2O3 Alumina Ceramic Pin Gauge Set / Spot Welding Pin With Strong Impact Resistance

    Product Details:

    Place of Origin: Guangdong, China(mainland)
    Brand Name: Custom
    Certification: ISO, ROHS
    Model Number: Custom

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 PCS
    Price: Negotiable
    Packaging Details: Packed in PP bag or sponge tray, then put in standard export carton packing, or OEM packing.
    Delivery Time: 10-30 working days after receiving deposit
    Payment Terms: T/T, Western Union, Paypal
    Supply Ability: 3000 pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Alumina Ceramic Pin / Pin Gauge Set / Spot Welding Pin Material: High Purity Zirconia / 95 / 99 Alumina Ceramic
    Dielectric Constant: 9.5 ( 95 Alumina ), 9.8 ( 99 Alumina ), 26 ( Zirconia ) Dielectric Strength: 16 KV / Mm ( 95 Alumina ), 22KV / Mm ( 99 Alumina )
    Water Absorption: 0 Compressive Strength: 1300 - 1650 Mpa
    Fracture Toughness: 3.8 Mpa * M½ ( 95 Alumina ), 4.2 Mpa * M½ ( 99 Alumina ), 10 Mpa * M½ ( Zirconia ) Color: White, Or Customized
    Size: Customized Application: Alumina Ceramic Pin / Pin Gauge Set / Spot Welding Pin

    Al2O3 Alumina Ceramic Pin / Pin Gauge Set / Spot Welding Pin With Strong Impact Resistance




    Product Description


    Advantages of Alumina Ceramic Pin:

    1. Refractory.
    2. Isostatic Pressed.
    3. Long Service Life.
    4. Superior Mechanical Strength.
    5. High Corrosion and Wear Resistance.
    6. Good Insulation Performance Precision.
    7. High Temperature and Pressure Resistance.
    8. High Purity Zirconia and Alumina Ceramic Material.

    They are high corrosion and wear resistance and strong impact resistance and delivers 10 times longer working life than metal pins.

    Properties Sheet:


    Properties Units 95 Alumina 99 Alumina Zirconia
    Density ɡ / cm3 3.65 3.92 5.95 - 6.0
    Water Absorption 0 0 0
    Coefficient of Thermal Expansion 10-6 / K 7.9 8.5 10.5
    Modulus of Elasticity Young’s Mod Gpa 280 340 210
    Poisson’s Ratio / 0.21 0.22 0.3
    HV Hardness Mpa 1400 1650 1300 - 1365
    Flexural Strength @ Room Temperature Mpa 280 310 950
    Flexural Strength @ 700℃ Mpa 220 230 210
    Compressive Strength@Room Temperature Mpa 2000 2200 2000
    Fracture Toughness Mpa * m½ 3.8 4.2 10
    Heat Conductivity @ Room Temperature W / m * k 18 - 25 26 - 30 2.0 - 2.2
    Electrical Resistivity @ Room Temperature Ω*mm2 / m >1015 >1016 >1015
    Max Application Temperature 1500 1750 1050
    Resistance to Acid Alkaline / High High High
    Dielectric Constant / 9.5 9.8 26
    Dielectric Strength KV / mm 16 22 /
    Thermal Shock Resistance Δ T ( ℃ ) 220 180 - 200 282 - 350
    Tensile Strength @ 25℃ Mpa 200 248 252



    Detailed Images

    Al2O3 Alumina Ceramic Pin Gauge Set / Spot Welding Pin With Strong Impact ResistanceAl2O3 Alumina Ceramic Pin Gauge Set / Spot Welding Pin With Strong Impact Resistance

    Related Products


    Al2O3 Alumina Ceramic Pin Gauge Set / Spot Welding Pin With Strong Impact ResistanceAl2O3 Alumina Ceramic Pin Gauge Set / Spot Welding Pin With Strong Impact Resistance

    Packaging and Shipping

    Alumina Ceramic Pin will be packed in PP bag or sponge tray, then put in standard export carton packing, or OEM packing.

    Shipped by Air ( DHL, TNT, UPS, Fedex, EMS ), or Sea transportation.

    Al2O3 Alumina Ceramic Pin Gauge Set / Spot Welding Pin With Strong Impact Resistance
    Al2O3 Alumina Ceramic Pin Gauge Set / Spot Welding Pin With Strong Impact Resistance


    Company information

    Who Are We?

    Mingrui is a professional factory with years OEM experience in manufacturing industrial ceramic parts.

    What Do We Do?

    We produce (OEM ) strengthened structure zirconia and alumina ceramic rod, ring, tube, shaft, plate, sleeve, bushing, washer, valve, plunger, pin, nozzle and ceramic arm, etc., they are applicable to instruments, medical instruments, clocks and electronic products, mills, energy and power, machine and metals, autocar and military, spaceflight and some other high-end fields.

    All of our products with certificates, such as , CE, TUV, etc..


    Factory Show

    Al2O3 Alumina Ceramic Pin Gauge Set / Spot Welding Pin With Strong Impact Resistance


    Production Process

    One-stop production, from the raw material to final product.

    Al2O3 Alumina Ceramic Pin Gauge Set / Spot Welding Pin With Strong Impact Resistance
