Orientation Welding Position Zirconia Ceramic Pin Heat Resistance For Welding Insulation

Orientation Welding Position Zirconia Ceramic Pin Heat Resistance For Welding Insulation

    • Orientation Welding Position Zirconia Ceramic Pin Heat Resistance For Welding Insulation
    • Orientation Welding Position Zirconia Ceramic Pin Heat Resistance For Welding Insulation
    • Orientation Welding Position Zirconia Ceramic Pin Heat Resistance For Welding Insulation
  • Orientation Welding Position Zirconia Ceramic Pin Heat Resistance For Welding Insulation

    Product Details:

    Place of Origin: Guangdong, China(mainland)
    Brand Name: Custom
    Certification: ISO, ROHS, TUV
    Model Number: Custom

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 PCS
    Price: Negotiable
    Packaging Details: Packed in a bubble bag individually, then separated by a foam, finally into outer carton, or OEM packing.
    Delivery Time: 10-30 working days after receiving deposit
    Payment Terms: T/T, Western Union, Paypal
    Supply Ability: 5000 pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Zirconia Ceramic Pin Material: Zirconia / Alumina Ceramic
    Dielectric Strength: 16KV / Mm ( 95 Alumina ), 22KV / Mm ( 99 Alumina ) Dielectric Constant: 9.5 ( 95 Alumina ), 9.8 ( 99 Alumina ), 26 ( Zirconia )
    Max Application Temperature: 1500℃ ( 95 Alumina ), 1750℃ ( 99 Alumina ), 1050℃ ( Zirconia ) Compressive Strength@Room Temperature: 2000 - 2200 Mpa
    Density: 3.9g/cm3 / >6.0g/cm3, Or Customized Heat Conductivity @ Room Temperature: 18 - 25 W / M * K ( 95 Alumina ), 26 - 30 W / M * K ( 99 Alumina ), 2.0 - 2.2 W / M * K ( Zirconia )
    Size And Color: Customized Application: Zirconia Ceramic Pin For Welding Insulation

    Orientation Welding Position Zirconia Ceramic Pin Heat Resistance For Welding Insulation


    Product Description


    Advantages:

    1. Refractory.
    2. Isostatic Pressed.
    3. Long Service Life.
    4. Superior Mechanical Strength.
    5. High Corrosion and Wear Resistance.
    6. Good Insulation Performance Precision.
    7. High Temperature and Pressure Resistance.
    8. High Purity Zirconia and Alumina Ceramic Material.

    They are high corrosion and wear resistance and strong impact resistance and delivers 10 times longer working life than metal parts. They give a longer life to the sealed packing material.

    Properties Sheet:


    PropertiesUnits95 Alumina99 AluminaZirconia
    Densityɡ / cm33.653.925.95 - 6.0
    Water Absorption000
    Coefficient of Thermal Expansion10-6 / K7.98.510.5
    Modulus of Elasticity Young’s ModGpa280340210
    Poisson’s Ratio/0.210.220.3
    HV HardnessMpa140016501300 - 1365
    Flexural Strength @ Room TemperatureMpa280310950
    Flexural Strength @ 700℃Mpa220230210
    Compressive Strength@Room TemperatureMpa200022002000
    Fracture ToughnessMpa * m½3.84.210
    Heat Conductivity @ Room TemperatureW / m * k18 - 2526 - 302.0 - 2.2
    Electrical Resistivity @ Room TemperatureΩ*mm2 / m>1015>1016>1015
    Max Application Temperature150017501050
    Resistance to Acid Alkaline/HighHighHigh
    Dielectric Constant/9.59.826
    Dielectric StrengthKV / mm1622/
    Thermal Shock ResistanceΔ T ( ℃ )220180 - 200282 - 350
    Tensile Strength @ 25℃Mpa200248252

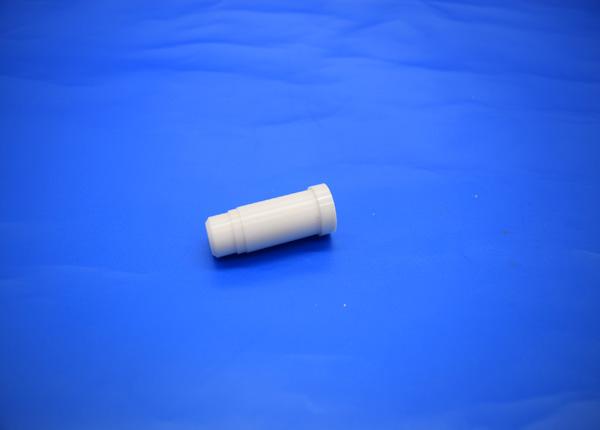

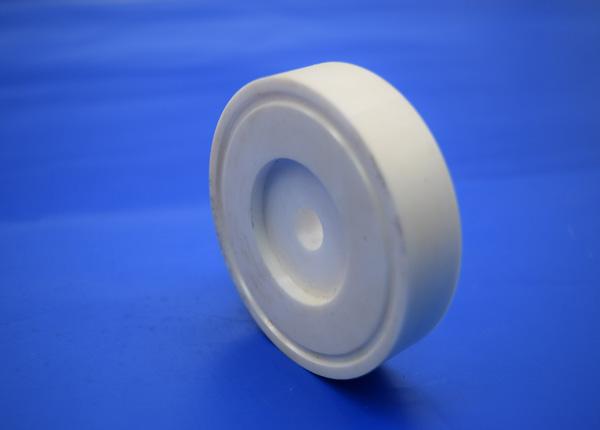

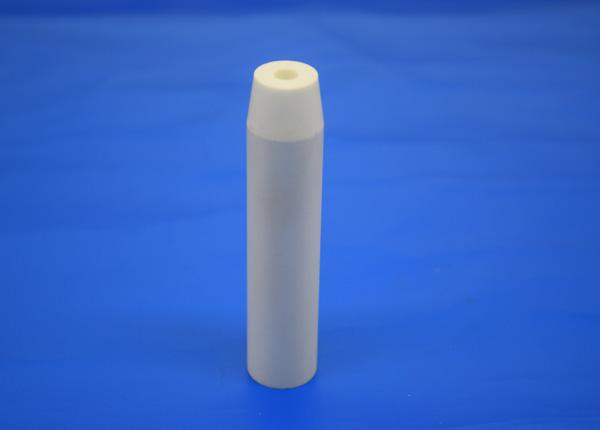

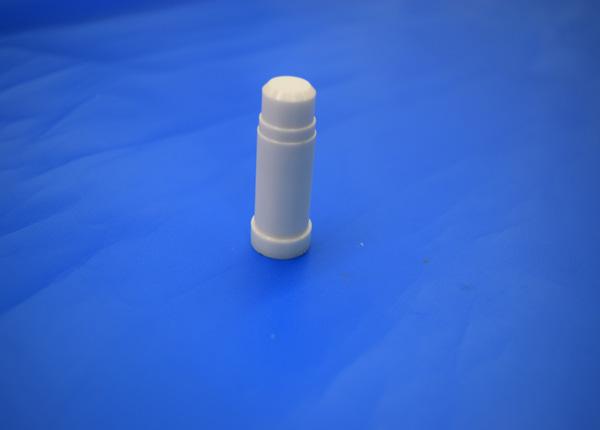

    Detailed Images

    Orientation Welding Position Zirconia Ceramic Pin Heat Resistance For Welding InsulationOrientation Welding Position Zirconia Ceramic Pin Heat Resistance For Welding InsulationOrientation Welding Position Zirconia Ceramic Pin Heat Resistance For Welding Insulation

    Related Products

    Orientation Welding Position Zirconia Ceramic Pin Heat Resistance For Welding InsulationOrientation Welding Position Zirconia Ceramic Pin Heat Resistance For Welding InsulationOrientation Welding Position Zirconia Ceramic Pin Heat Resistance For Welding Insulation


    Packaging and Shipping

    Zirconia ceramic Pin will be packed in a bubble bag individually, then separated by a foam, finally into outer carton, or OEM packing.

    Shipped by Air ( DHL, TNT, UPS, Fedex, EMS ), or Sea transportation.

    Orientation Welding Position Zirconia Ceramic Pin Heat Resistance For Welding Insulation
    Orientation Welding Position Zirconia Ceramic Pin Heat Resistance For Welding Insulation


    Company information

    Who Are We?

    Mingrui is a professional factory with years OEM experience in manufacturing industrial ceramic parts.

    What Do We Do?

    We produce (OEM ) strengthened structure zirconia and alumina ceramic rod, ring, tube, shaft, plate, sleeve, bushing, washer, valve, plunger, pin, nozzle and ceramic arm, etc., they are applicable to instruments, medical instruments, clocks and electronic products, mills, energy and power, machine and metals, autocar and military, spaceflight and some other high-end fields.

    All of our products with certificates, such as , CE, TUV, etc..


    Factory Show

    Orientation Welding Position Zirconia Ceramic Pin Heat Resistance For Welding Insulation


    Production Process Show

    One-stop production, from the raw material to final product.

    Orientation Welding Position Zirconia Ceramic Pin Heat Resistance For Welding Insulation
