Advanced Technical Ceramics Zirconia Semi-conductive Ceramic Plates

Advanced Technical Ceramics Zirconia Semi-conductive Ceramic Plates

    • Advanced Technical Ceramics Zirconia Semi-conductive Ceramic Plates
    • Advanced Technical Ceramics Zirconia Semi-conductive Ceramic Plates
    • Advanced Technical Ceramics Zirconia Semi-conductive Ceramic Plates
  • Advanced Technical Ceramics Zirconia Semi-conductive Ceramic Plates

    Product Details:

    Place of Origin: Guangdong, China(mainland)
    Brand Name: OEM
    Certification: ISO2008, TUV, CE,ROHS
    Model Number: OEM

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PC
    Price: Negotiable
    Packaging Details: Semi-conductive Ceramic Plates will be packed in PP bag or sponge tray, then put in standard export carton packing, or OEM packing.
    Delivery Time: 15-35 working days after receiving deposit
    Payment Terms: L/C, T/T, Western Union, Paypal
    Supply Ability: 500 pcs per week
    Contact Now
    Detailed Product Description
    Product Name: Semi-conductive Ceramic Plates Material: Zirconia / Alumina Ceramic
    Dielectric Strength: 16KV / Mm ( 95 Alumina ), 22KV / Mm ( 99 Alumina ) Dielectric Constant: 9.5 ( 95 Alumina ), 9.8 ( 99 Alumina ), 26 ( Zirconia )
    Bending Strength: 300 MPA, Or Customized Max Application Temperature: 1500℃ ( 95 Alumina ), 1750℃ ( 99 Alumina ), 1050℃ ( Zirconia )
    Heat Conductivity @ Room Temperature: 18 - 25 W / M * K ( 95 Alumina ), 26 - 30 W / M * K ( 99 Alumina ), 2.0 - 2.2 W / M * K ( Zirconia ) Size: Customized
    Color: White, Ivory Application: Semi-conductive Ceramic Plates

    Advanced Technical Ceramics Zirconia Semi-conductive Ceramic Plates


    Product Description


    Advantages of Semi-conductive Ceramic Plates​:

    1. Refractory.
    2. Isostatic Pressed.
    3. Long Service Life.
    4. High polishing precision.
    5. High Corrosion and Wear Resistance.
    6. Semiconductor Performance Precision.
    7. High Temperature and Pressure Resistance.
    8. High Purity Zirconia and Alumina Ceramic Material.

    They are high corrosion and wear resistance and strong impact resistance and delivers 10 times longer working life than metal semi-conductive parts.

    Properties Sheet:


    PropertiesUnits95 Alumina99 AluminaZirconia
    Densityɡ / cm33.653.925.95 - 6.0
    Water Absorption000
    Coefficient of Thermal Expansion10-6 / K7.98.510.5
    Modulus of Elasticity Young’s ModGpa280340210
    Poisson’s Ratio/0.210.220.3
    HV HardnessMpa140016501300 - 1365
    Flexural Strength @ Room TemperatureMpa280310950
    Flexural Strength @ 700℃Mpa220230210
    Compressive Strength@Room TemperatureMpa200022002000
    Fracture ToughnessMpa * m½3.84.210
    Heat Conductivity @ Room TemperatureW / m * k18 - 2526 - 302.0 - 2.2
    Electrical Resistivity @ Room TemperatureΩ*mm2 / m>1015>1016>1015
    Max Application Temperature150017501050
    Resistance to Acid Alkaline/HighHighHigh
    Dielectric Constant/9.59.826
    Dielectric StrengthKV / mm1622/
    Thermal Shock ResistanceΔ T ( ℃ )220180 - 200282 - 350
    Tensile Strength @ 25℃Mpa200248252

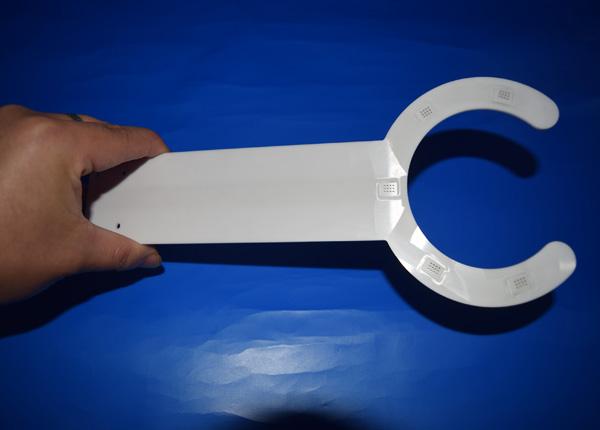

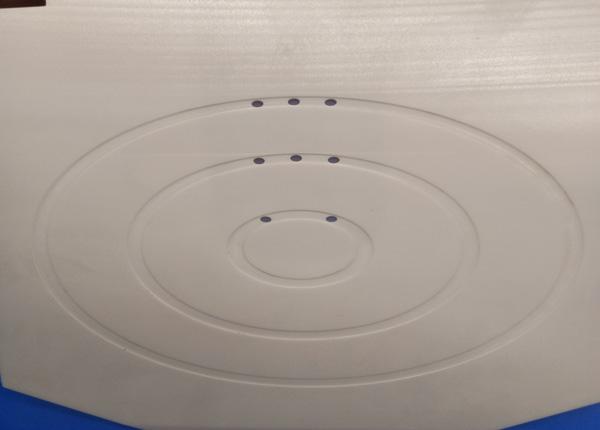

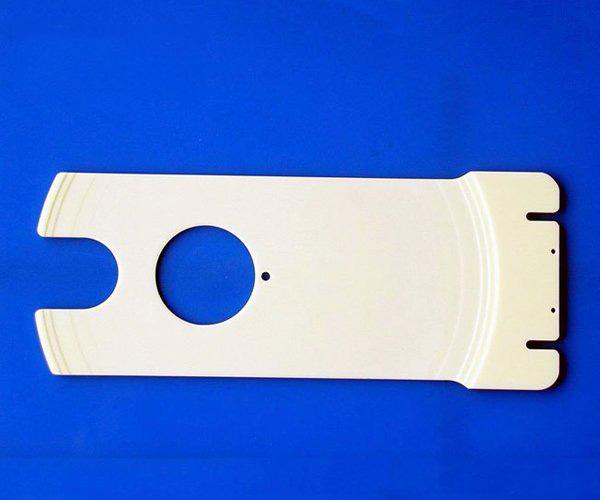

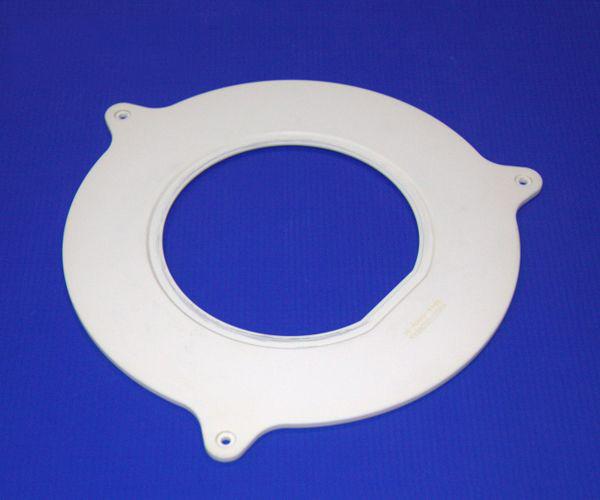

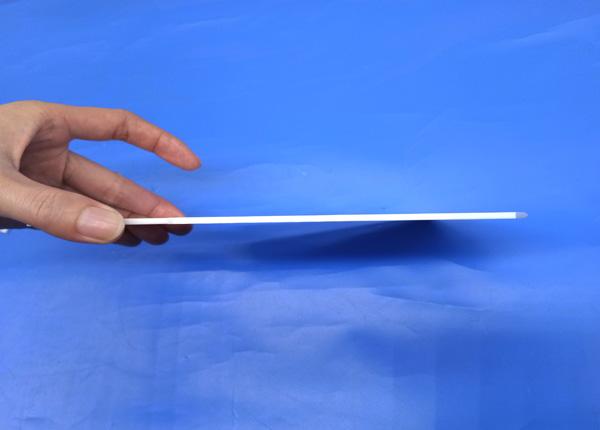

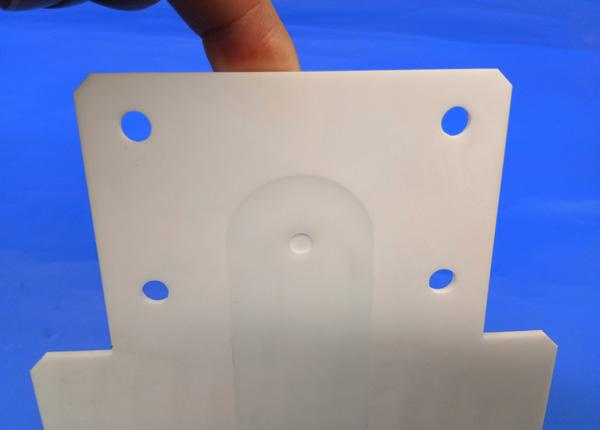

    Detailed Images

    Advanced Technical Ceramics Zirconia Semi-conductive Ceramic PlatesAdvanced Technical Ceramics Zirconia Semi-conductive Ceramic PlatesAdvanced Technical Ceramics Zirconia Semi-conductive Ceramic PlatesAdvanced Technical Ceramics Zirconia Semi-conductive Ceramic Plates

    Related Products

    Advanced Technical Ceramics Zirconia Semi-conductive Ceramic Plates
     Advanced Technical Ceramics Zirconia Semi-conductive Ceramic PlatesAdvanced Technical Ceramics Zirconia Semi-conductive Ceramic Plates

    Packaging and Shipping

    Zirconia Ceramic Pin Gauge / Dowel Pins will be packed in PP bag or sponge tray, then put in standard export carton packing, or OEM packing.

    Shipped by Air ( DHL, TNT, UPS, Fedex, EMS ), or Sea transportation.

    Advanced Technical Ceramics Zirconia Semi-conductive Ceramic Plates
    Advanced Technical Ceramics Zirconia Semi-conductive Ceramic Plates


    Company information

    Who Are We?

    Mingrui is a professional factory with years OEM experience in manufacturing industrial ceramic parts.

    What Do We Do?

    We produce (OEM ) strengthened structure zirconia and alumina ceramic rod, ring, tube, shaft, plate, sleeve, bushing, washer, valve, plunger, pin, nozzle and ceramic arm, etc., they are applicable to instruments, medical instruments, clocks and electronic products, mills, energy and power, machine and metals, autocar and military, spaceflight and some other high-end fields.

    All of our products with certificates, such as , CE, TUV, etc..


    Factory Show

    Advanced Technical Ceramics Zirconia Semi-conductive Ceramic Plates


    Production Process Show

    One-stop production, from the raw material to final product.

    Advanced Technical Ceramics Zirconia Semi-conductive Ceramic Plates
