High HV Hardness Zirconia Ceramic Parts Fire Resistance Zirconia Ceramic Washer

High HV Hardness Zirconia Ceramic Parts Fire Resistance Zirconia Ceramic Washer

    • High HV Hardness Zirconia Ceramic Parts Fire Resistance Zirconia Ceramic Washer
    • High HV Hardness Zirconia Ceramic Parts Fire Resistance Zirconia Ceramic Washer
    • High HV Hardness Zirconia Ceramic Parts Fire Resistance Zirconia Ceramic Washer
  • High HV Hardness Zirconia Ceramic Parts Fire Resistance Zirconia Ceramic Washer

    Product Details:

    Place of Origin: Guangdong, China(mainland)
    Brand Name: Customer's Requirments
    Certification: ISO2008, TUV, , ROHS
    Model Number: Custom

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PC
    Price: Negotiable
    Packaging Details: Packed in a bubble bag individually, then separated by a foam, finally put in standard export carton packing, or OEM packing.
    Delivery Time: 13-33 working days after receiving deposit
    Payment Terms: L/C, T/T, Western Union, Paypal, D/P, D/A, MoneyGram
    Supply Ability: 3000 pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Zirconia Ceramic Washer Material: Zirconia / Alumina Ceramic
    Density: 3.9g/cm3 / >6.0g/cm3 HV Hardness: 1300 - 1650 Mpa
    Dielectric Strength: 9.5 9.8 26 Compressive Strength@Room Temperature: 2000 - 2200 Mpa
    Flexural Strength @ Room Temperature: Mpa / 280 ( 95 Al3o2 ), 310 ( 99 Al3o2 ), 950 ( Zirconia ) Max Application Temperature: W / M * K / 18 - 25 ( 95 Al3o2 ), 26 - 30 ( 99 Al3o2 ), 2.0 - 2.2 ( Zro2 )
    Color And Size: Black; Customized Application: Ceramic Washer Industrial Parts

    High HV Hardness Zirconia Ceramic Parts Fire Resistance Zirconia Ceramic Washer


    Product Description

    Manufacturing of zirconia ceramics using high-purity zirconia materials, insulation at room temperature, and high temperature has electrical conductivity and other excellent properties.High temperature resistance Melting point is 2715 ℃,1200mpa hardness.
    Ceramic material composition:
    · TTZ: Magnesia partially stabilized Zirconia (ZrO2) · YTZP: Yttria partially stabilized Zirconia (ZrO2) · ZDY: Yttria fully stabilized Zirconia (ZrO2)

    Advantages of Zirconia Ceramic Washer​:

    1. Refractory.
    2. Long Service Life.
    3. Good Polished Surface.
    4. Superior Mechanical Strength.
    5. High Corrosion and Wear Resistance.
    6. Good Insulation Performance Precision.
    7. High Temperature and Pressure Resistance.
    8. High Purity Zirconia and Alumina Ceramic Material.

    • High hardness, long service life, not easy to break and wear resistance.
    • Non-conductive, anti-static, ceramic material itself with the insulation of electricity and magnetism properties.
    • Corrosion resistance, high temperature resistance, can be applied to a specific environment, such as acid and alkali resistance.

    They deliver 10 times longer working life than metal rods.

    Properties Sheet:

    ItemUnitZirconia /ZrO2
    Heat resistantºC2200
    Bulk densityg/cm36.05
    Water absorption%0
    Flexural strengthMpa1000
    Hardness vickersGpa89
    Elastic modulusGpa200
    Linear expansion(20-500 ºC) 10 -6 / ºC10
    Thermal conductivityw/(m.k)2

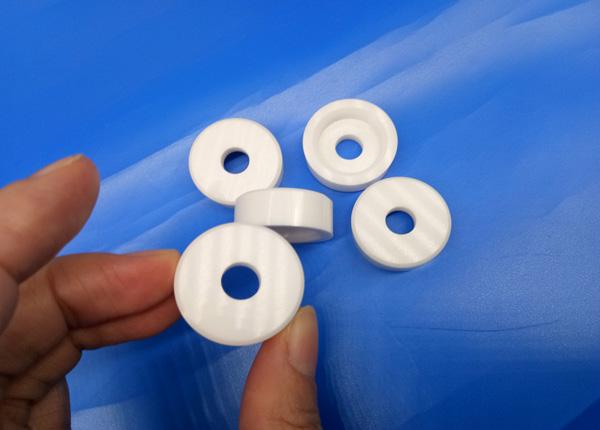

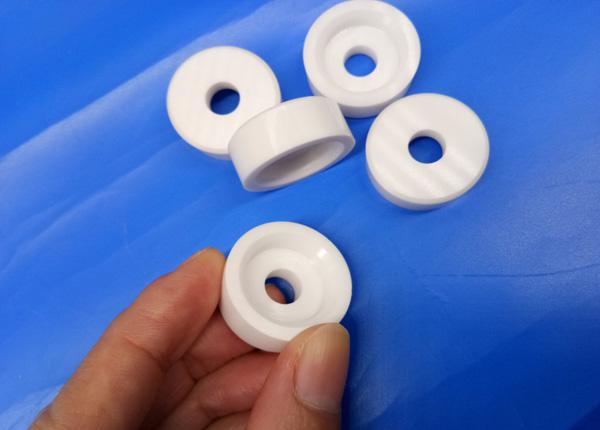

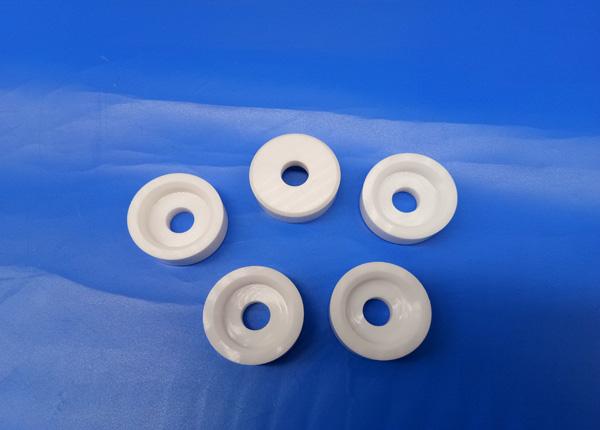

    Detailed Images

    High HV Hardness Zirconia Ceramic Parts Fire Resistance Zirconia Ceramic WasherHigh HV Hardness Zirconia Ceramic Parts Fire Resistance Zirconia Ceramic WasherHigh HV Hardness Zirconia Ceramic Parts Fire Resistance Zirconia Ceramic Washer

    Related Products
    Alumina porous ceramic plate
     High HV Hardness Zirconia Ceramic Parts Fire Resistance Zirconia Ceramic Washer

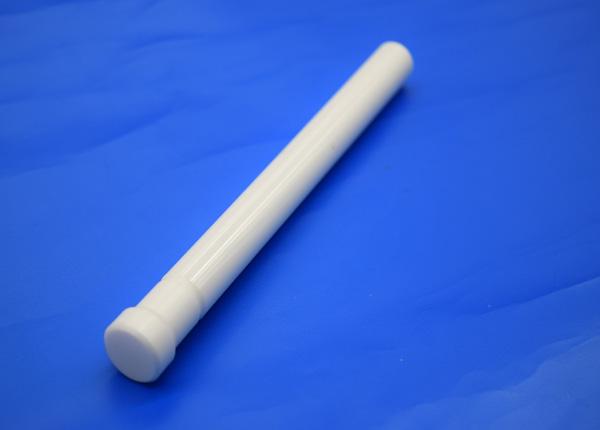

    Zirconia ceramic guide rod

    High HV Hardness Zirconia Ceramic Parts Fire Resistance Zirconia Ceramic Washer

    View More Products
    Packaging and Shipping

    Zirconia Ceramic Washer​​ will be packed in a bubble bag individually, then separated by a foam, finally put in standard export carton packing, or OEM packing.

    Shipped by Air ( DHL, TNT, UPS, Fedex, EMS ), or Sea transportation.

    High HV Hardness Zirconia Ceramic Parts Fire Resistance Zirconia Ceramic Washer
    High HV Hardness Zirconia Ceramic Parts Fire Resistance Zirconia Ceramic Washer


    Company information

    Who Are We?

    Mingrui has professional OEM experience in manufacturing industrial ceramic parts for so many
    years. We can make the products according to your drawings, custom the size, thickness and other parameters.
    .

    What Do We Do?

    We have very advanced technologies in the production of zirconia and alumina ceramic nozzle, rod, ring, tube, shaft, plate, sleeve, valve, plunger, bearing, and semiconductive ceramics etc.. They are applicable to Electrical, Appliance, Oil & Gas, Energy & Power, Food & Medical, Agriculture, Aerospace,
    even other high-end fields.
    .

    Our products with some certificates, such as , CE, TUV, etc..


    Factory Show

    High HV Hardness Zirconia Ceramic Parts Fire Resistance Zirconia Ceramic Washer


    Production Process Show

    One-stop production, from the raw material powder to final product.

    High HV Hardness Zirconia Ceramic Parts Fire Resistance Zirconia Ceramic Washer
    Delivery:
    Custom OEM will be shipped within 15 days after determining the parameters
    The samples will be shipped within 3 days
    Quick Delivery Via Fedex,DHL,UPS,TNT Etc.
    Support customer to designate shipping company
    For more informations (the price,delivery time,moq etc)about the ceramic plates, please contact us or email:admin@cerampart.com


    CEO: Admin deng
    Dongguan Mingrui Ceramic Tech. Co. Ltd.
    Add: No.21 Chuangxing Rd., 2nd Industrial Zone of Shangsha,
    Chang'an town, Dongguan city, Guangdong, China 523867
    Email: admin@cerampart.com

    FAQ
    1. Monthly Capacity: 50,000-60,000 pcs;
    2. Material: OEM or as per your suggestion;
    3. Lead time: about 7-20 days, pls confirm the quantities required;
    4. Incoterm: FOB, CFR, CIF;
    5. Delivery Cost: It is determinated by the destination port;
    6. Payment Term: PayPal; T/T; L/C.
    7. Shipment: by sea, by air, by courier, by post, etc.
