Hollow Machining Ceramic Parts Zirconia Ceramic Pressure Switch / Substrate With Groove

Hollow Machining Ceramic Parts Zirconia Ceramic Pressure Switch / Substrate With Groove

    • Hollow Machining Ceramic Parts Zirconia Ceramic Pressure Switch / Substrate With Groove
    • Hollow Machining Ceramic Parts Zirconia Ceramic Pressure Switch / Substrate With Groove
    • Hollow Machining Ceramic Parts Zirconia Ceramic Pressure Switch / Substrate With Groove
  • Hollow Machining Ceramic Parts Zirconia Ceramic Pressure Switch / Substrate With Groove

    Product Details:

    Place of Origin: Guangdong, China(mainland)
    Brand Name: Customized
    Certification: ISO2008, TUV,
    Model Number: OEM

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PC
    Price: Negotiable
    Packaging Details: Packed in a bubble bag individually, then separated by a foam, finally put in standard export carton packing, or OEM packing.
    Delivery Time: 14-34 working days after receiving deposit
    Payment Terms: L/C, T/T, Western Union, Paypal, D/P, D/A, MoneyGram
    Supply Ability: 5000 pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Zirconia Ceramic Pressure Switch / Substrate Material: Zirconia / Alumina Ceramic
    HV Hardness: 1300 - 1650 Mpa Density: 3.9g/cm3 / >6.0g/cm3
    Dielectric Strength: 9.5 9.8 26 Compressive Strength@Room Temperature: 2000 - 2200 Mpa
    Flexural Strength @ Room Temperature: Mpa / 280 ( 95 Al3o2 ), 310 ( 99 Al3o2 ), 950 ( Zirconia ) Max Application Temperature: W / M * K / 18 - 25 ( 95 Al3o2 ), 26 - 30 ( 99 Al3o2 ), 2.0 - 2.2 ( Zro2 )
    Color And Size: White; Customized Size Application: Zirconia Ceramic Pressure Switch / Substrate



    Hollow Machining Ceramic Parts Zirconia Ceramic Pressure Switch / Substrate With Groove


    Product Description

    Hollow Machining Ceramic Parts made by advance technical ceramics,like:95%--99.99% Alumina(Al2O3), Zirconia(ZrO2) ,Silicon Carbide,Silicon Nitride ...etc which have a excellent Physical properties,Mechanical properties,Electrical properties,Thermal properties. Wear hardness strength resistance.

    Advantages of Zirconia Ceramic Pressure Switch / Substrate:

    1. Refractory.
    2. Long Service Life.
    3. Good Polished Surface.
    4. Superior Mechanical Strength.
    5. High Corrosion and Wear Resistance.
    6. Good Insulation Performance Precision.
    7. High Temperature and Pressure Resistance.
    8. High Purity Zirconia and Alumina Ceramic Material.

    • High hardness, long service life, not easy to break and wear resistance.
    • Non-conductive, anti-static, ceramic material itself with the insulation of electricity and magnetism properties.
    • Corrosion resistance, high temperature resistance, can be applied to a specific environment, such as acid and alkali resistance.

    They deliver 10 times longer working life than metal rods.

    Properties Sheet:


    PropertiesUnits95 Alumina99 AluminaZirconia
    Densityɡ / cm33.653.925.95 - 6.0
    Water Absorption000
    Coefficient of Thermal Expansion10-6 / K7.98.510.5
    Modulus of Elasticity Young’s ModGpa280340210
    Poisson’s Ratio/0.210.220.3
    HV HardnessMpa140016501300 - 1365
    Flexural Strength @ Room TemperatureMpa280310950
    Flexural Strength @ 700℃Mpa220230210
    Compressive Strength@Room TemperatureMpa200022002000
    Fracture ToughnessMpa * m½3.84.210
    Heat Conductivity @ Room TemperatureW / m * k18 - 2526 - 302.0 - 2.2
    Electrical Resistivity @ Room TemperatureΩ*mm2 / m>1015>1016>1015
    Max Application Temperature150017501050
    Resistance to Acid Alkaline/HighHighHigh
    Dielectric Constant/9.59.826
    Dielectric StrengthKV / mm1622/
    Thermal Shock ResistanceΔ T ( ℃ )220180 - 200282 - 350
    Tensile Strength @ 25℃Mpa200248252



    Materials:
    · 95%--99.99% Alumina (Al2O3)
    · Silicon Carbide
    · Silicon Nitride
    · TTZ: Magnesia partially stabilized Zirconia (ZrO2)
    · YTZP: Yttria partially stabilized Zirconia (ZrO2)
    · ZDY: Yttria fully stabilized Zirconia (ZrO2)
    · Others
    Detailed Images

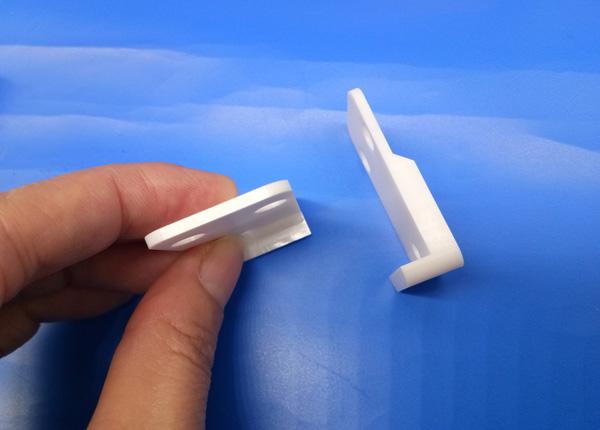

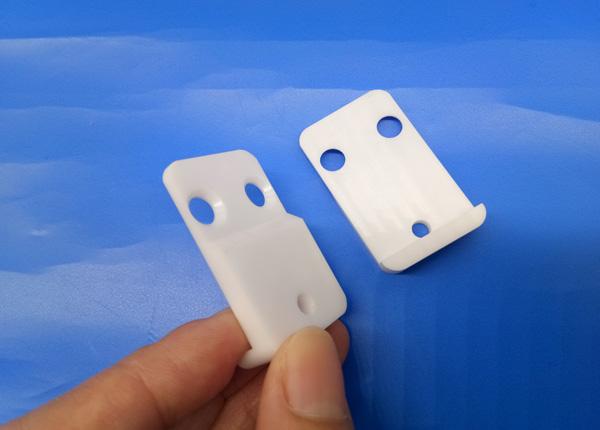

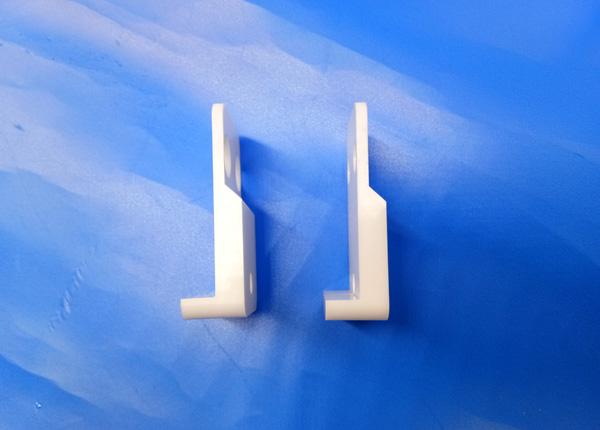

    Hollow Machining Ceramic Parts Zirconia Ceramic Pressure Switch / Substrate With GrooveHollow Machining Ceramic Parts Zirconia Ceramic Pressure Switch / Substrate With GrooveHollow Machining Ceramic Parts Zirconia Ceramic Pressure Switch / Substrate With Groove

    Related Products

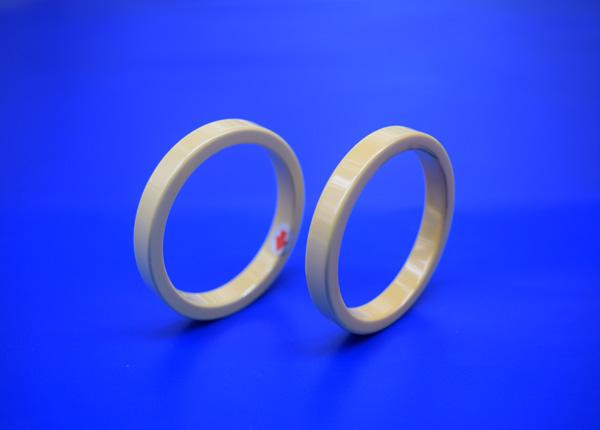

    Alumina Ceramic Rings

     Hollow Machining Ceramic Parts Zirconia Ceramic Pressure Switch / Substrate With Groove

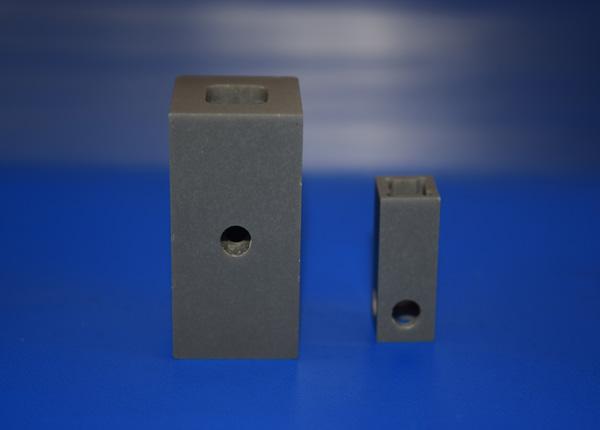

    Black Alumina Ceramic Square Tube

    Hollow Machining Ceramic Parts Zirconia Ceramic Pressure Switch / Substrate With Groove

    View More Products
    Packaging and Shipping

    Zirconia Ceramic Pressure Switch / Substrate will be packed in a bubble bag individually, then separated by a foam, finally put in standard export carton packing, or OEM packing.

    Shipped by Air ( DHL, TNT, UPS, Fedex, EMS ), or Sea transportation.

    Hollow Machining Ceramic Parts Zirconia Ceramic Pressure Switch / Substrate With Groove
    Hollow Machining Ceramic Parts Zirconia Ceramic Pressure Switch / Substrate With Groove


    Delivery:
    Custom OEM will be shipped within 15 days after determining the parameters
    The samples will be shipped within 3 days
    Quick Delivery Via Fedex,DHL,UPS,TNT Etc.
    Support customer to designate shipping company
    For more informations (the price,delivery time,moq etc)about the ceramic plates, please contact us or email:admin@cerampart.com
    CEO: Admin deng
    Dongguan Mingrui Ceramic Tech. Co. Ltd.
    Add: No.21 Chuangxing Rd., 2nd Industrial Zone of Shangsha,
    Chang'an town, Dongguan city, Guangdong, China 523867
    Email: admin@cerampart.com
    FAQ
    1. Monthly Capacity: 50,000-60,000 pcs;
    2. Material: OEM or as per your suggestion;
    3. Lead time: about 7-20 days, pls confirm the quantities required;
    4. Incoterm: FOB, CFR, CIF;
    5. Delivery Cost: It is determinated by the destination port;
    6. Payment Term: PayPal; T/T; L/C.
    7. Shipment: by sea, by air, by courier, by post, etc.
