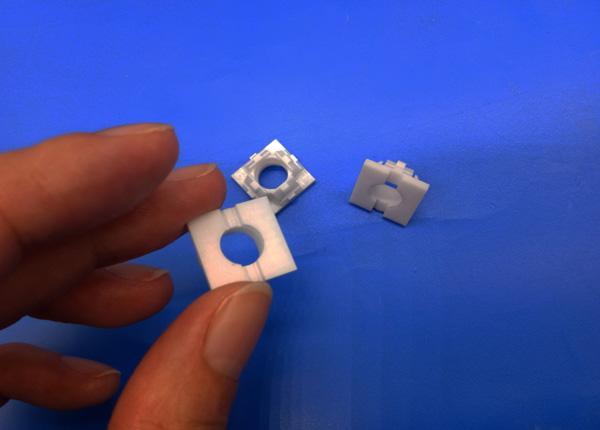

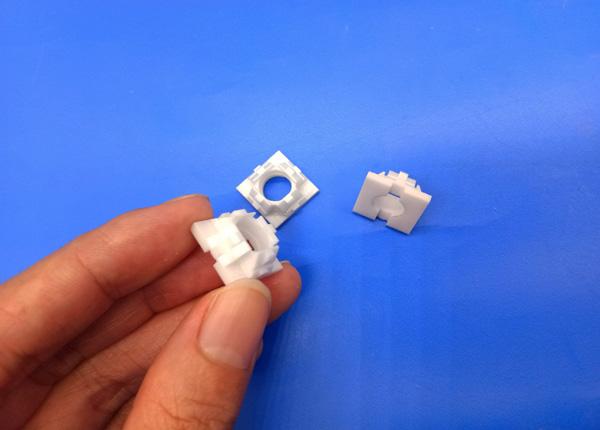

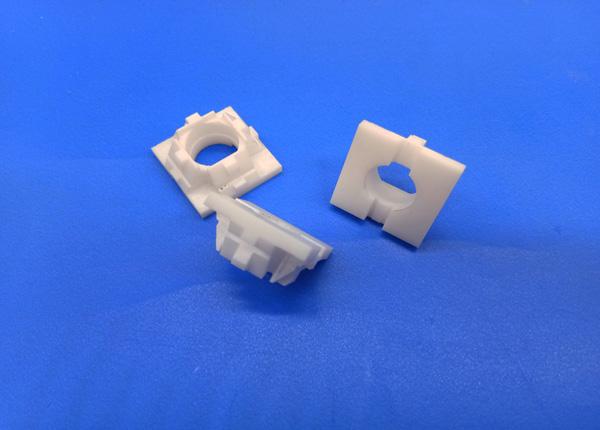

Small Size Machining Ceramic Parts Zirconia Square Shaped Lantern Ring / Piece / Parts
Square Shaped Lantern Ring made by advance technical ceramics,like:95%--99.99% Alumina(Al2O3), Zirconia(ZrO2) ,Silicon Carbide,Silicon Nitride ...etc which have a excellent Physical properties,Mechanical properties,Electrical properties,Thermal properties. Wear hardness strength resistance.
· 95%--99.99% Alumina (Al2O3)
· Silicon Carbide
· Silicon Nitride
· TTZ: Magnesia partially stabilized Zirconia (ZrO2)
· YTZP: Yttria partially stabilized Zirconia (ZrO2)
· ZDY: Yttria fully stabilized Zirconia (ZrO2)
Advantages of Zirconia Square Shaped Lantern Ring:
2. Long Service Life.
3. Good Polished Surface.
4. Superior Mechanical Strength.
5. High Corrosion and Wear Resistance.
6. Good Insulation Performance Precision.
7. High Temperature and Pressure Resistance.
8. High Purity Zirconia and Alumina Ceramic Material.
- High hardness, long service life, not easy to break and wear resistance.
- Non-conductive, anti-static, ceramic material itself with the insulation of electricity and magnetism properties.
- Corrosion resistance, high temperature resistance, can be applied to a specific environment, such as acid and alkali resistance.
They deliver 10 times longer working life than metal rods.
|Properties||Units||95 Alumina||99 Alumina||Zirconia|
|Density||ɡ / cm3||3.65||3.92||5.95 - 6.0|
|Coefficient of Thermal Expansion||10-6 / K||7.9||8.5||10.5|
|Modulus of Elasticity Young’s Mod||Gpa||280||340||210|
|HV Hardness||Mpa||1400||1650||1300 - 1365|
|Flexural Strength @ Room Temperature||Mpa||280||310||950|
|Flexural Strength @ 700℃||Mpa||220||230||210|
|Compressive Strength@Room Temperature||Mpa||2000||2200||2000|
|Fracture Toughness||Mpa * m½||3.8||4.2||10|
|Heat Conductivity @ Room Temperature||W / m * k||18 - 25||26 - 30||2.0 - 2.2|
|Electrical Resistivity @ Room Temperature||Ω*mm2 / m||＞1015||＞1016||＞1015|
|Max Application Temperature||℃||1500||1750||1050|
|Resistance to Acid Alkaline||/||High||High||High|
|Dielectric Strength||KV / mm||16||22||/|
|Thermal Shock Resistance||Δ T ( ℃ )||220||180 - 200||282 - 350|
|Tensile Strength @ 25℃||Mpa||200||248||252|
Produce and machining
We can produce different sizes and shapes of the ceramic products for specific applications to different custom products.Such as drilling, polishing, stripes, concave and convex, screw holes, metal parts position and so on

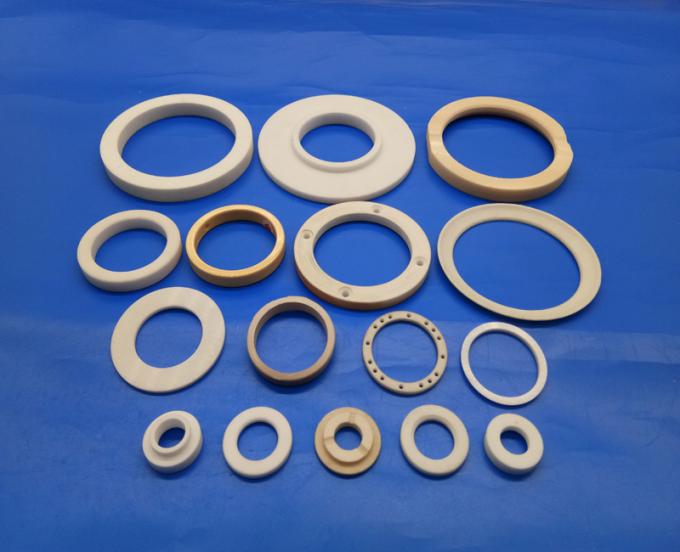

Different Size Ceramic Rings / Wahers

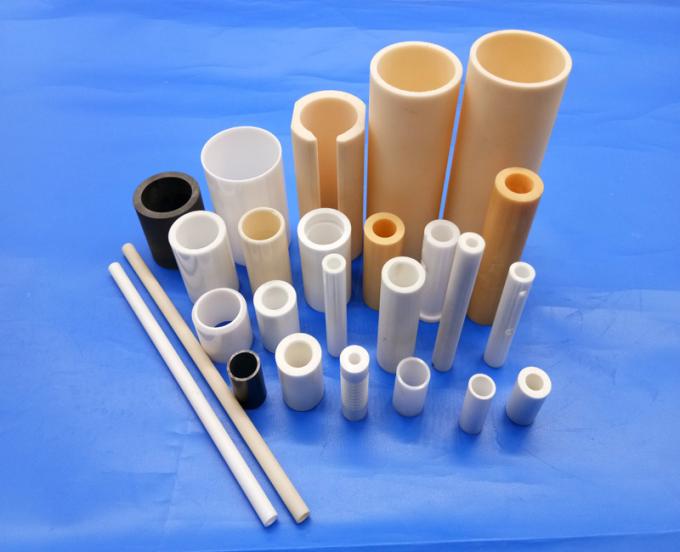

Different Size and Color Ceramic Tubes / Pipes
View More Products
Custom OEM will be shipped within 15 days after determining the parameters
The samples will be shipped within 3 days
Quick Delivery Via Fedex,DHL,UPS,TNT Etc.
Support customer to designate shipping company
For more informations (the price,delivery time,moq etc)about the ceramic plates, please contact us or email:firstname.lastname@example.org
CEO: Admin deng
Dongguan Mingrui Ceramic Tech. Co. Ltd.
Add: No.21 Chuangxing Rd., 2nd Industrial Zone of Shangsha,
Chang'an town, Dongguan city, Guangdong, China 523867
1. Monthly Capacity: 50,000-60,000 pcs;
2. Material: OEM or as per your suggestion;
3. Lead time: about 7-20 days, pls confirm the quantities required;
4. Incoterm: FOB, CFR, CIF;
5. Delivery Cost: It is determinated by the destination port;
6. Payment Term: PayPal; T/T; L/C.
7. Shipment: by sea, by air, by courier, by post, etc.
