White Polished Zirocnia Ceramic Rod / Small Ceramic Roller Pin

White Polished Zirocnia Ceramic Rod / Small Ceramic Roller Pin

    • White Polished Zirocnia Ceramic Rod / Small Ceramic Roller Pin
    • White Polished Zirocnia Ceramic Rod / Small Ceramic Roller Pin
    • White Polished Zirocnia Ceramic Rod / Small Ceramic Roller Pin
  • White Polished Zirocnia Ceramic Rod / Small Ceramic Roller Pin

    Product Details:

    Place of Origin: Guangdong, China(mainland)
    Brand Name: Custom
    Certification: ISO, ROHS
    Model Number: Custom

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 PCS
    Price: Negotiable
    Packaging Details: Zirconia Ceramic Pin / Rod / Bar will be packed in a bubble bag individually, then separated by a foam, finally into outer carton, or OEM packing.
    Delivery Time: 10-315 working days after receiving deposit
    Payment Terms: T/T, Western Union, Paypal
    Supply Ability: 5000 pcs per month
    Contact Now
    Detailed Product Description
    Material: Zirconia / Alumina Ceramic Highest Application Temperature: 2000 C, Or Customized
    Density: 3.9g/cm3 / -6.10g/cm3 Color: White, Yellow, Or Customized
    Size: As Your Drawings Precision: +/-0.001mm
    Tolerance: +/- 0.005mm Length Range: 0.3mm-500mm

    Good Polished Zirocnia Ceramic Rod / Small Ceramic pin / Ceramic Roller Pin

    Product Description

    Advantages:

    1. Refractory.
    2. Isostatic Pressed.
    3. Long Service Life.
    4. Superior Mechanical Strength.
    5. High Corrosion and Wear Resistance.
    6. Good Insulation Performance Precision.
    7. High Temperature and Pressure Resistance.
    8. High Purity Zirconia and Alumina Ceramic Material.

    They are high corrosion and wear resistance and strong impact resistance and delivers 10 times longer working life than metal parts. They give a longer life to the sealed packing material.

    Properties Sheet:

    Properties Units 95 Alumina 99 Alumina Zirconia
    Density ɡ / cm3 3.65 3.92 5.95 - 6.0
    Water Absorption 0 0 0
    Coefficient of Thermal Expansion 10-6 / K 7.9 8.5 10.5
    Modulus of Elasticity Young’s Mod Gpa 280 340 210
    Poisson’s Ratio / 0.21 0.22 0.3
    HV Hardness Mpa 1400 1650 1300 - 1365
    Flexural Strength @ Room Temperature Mpa 280 310 950
    Flexural Strength @ 700℃ Mpa 220 230 210
    Compressive Strength@Room Temperature Mpa 2000 2200 2000
    Fracture Toughness Mpa * m½ 3.8 4.2 10
    Heat Conductivity @ Room Temperature W / m * k 18 - 25 26 - 30 2.0 - 2.2
    Electrical Resistivity @ Room Temperature Ω*mm2 / m >1015 >1016 >1015
    Max Application Temperature 1500 1750 1050
    Resistance to Acid Alkaline / High High High
    Dielectric Constant / 9.5 9.8 26
    Dielectric Strength KV / mm 16 22 /
    Thermal Shock Resistance Δ T ( ℃ ) 220 180 - 200 282 - 350
    Tensile Strength @ 25℃ Mpa 200 248 252


    Detailed Images

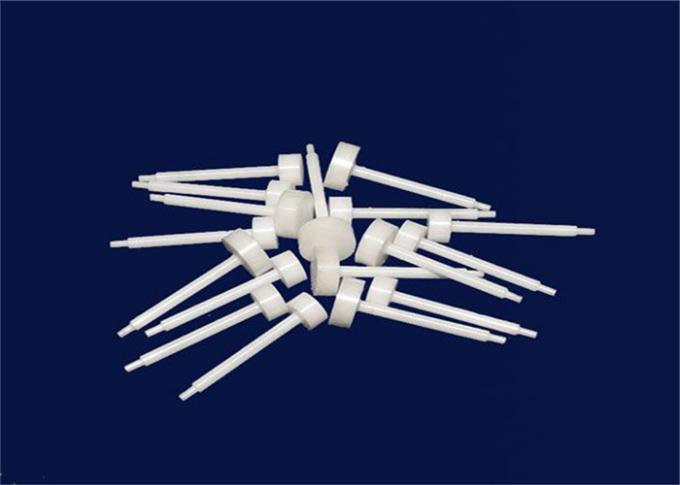

    White Polished Zirocnia Ceramic Rod / Small Ceramic Roller Pin

    White Polished Zirocnia Ceramic Rod / Small Ceramic Roller Pin

    Related Products
     White Polished Zirocnia Ceramic Rod / Small Ceramic Roller Pin


    Packaging and Shipping

    Zirconia Ceramic Pin / Rod / Bar will be packed in a bubble bag individually, then separated by a foam, finally into outer carton, or OEM packing.

    Shipped by Air ( DHL, TNT, UPS, Fedex, EMS ), or Sea transportation.

    White Polished Zirocnia Ceramic Rod / Small Ceramic Roller Pin
    White Polished Zirocnia Ceramic Rod / Small Ceramic Roller Pin


    Company information

    Who Are We?

    Mingrui is a professional factory with years OEM experience in manufacturing industrial ceramic parts.

    What Do We Do?

    We produce (OEM ) strengthened structure zirconia and alumina ceramic rod, ring, tube, shaft, plate, sleeve, bushing, washer, valve, plunger, pin, nozzle and ceramic arm, etc., they are applicable to instruments, medical instruments, clocks and electronic products, mills, energy and power, machine and metals, autocar and military, spaceflight and some other high-end fields.

    Our products with some certificates, such as , CE, TUV, etc..

    Factory Show

    White Polished Zirocnia Ceramic Rod / Small Ceramic Roller Pin


    Production Process Show

    One-stop production, from the raw material to final product.

    White Polished Zirocnia Ceramic Rod / Small Ceramic Roller Pin
