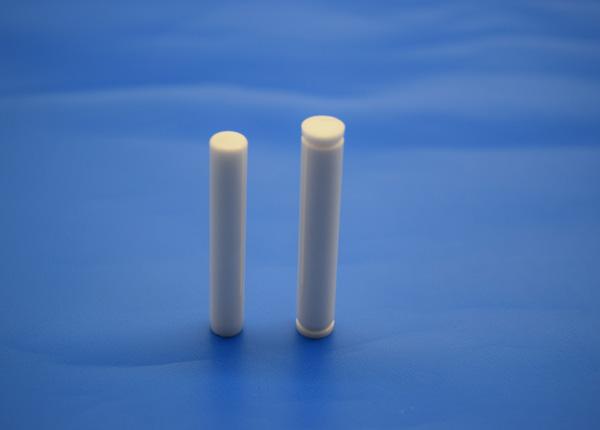

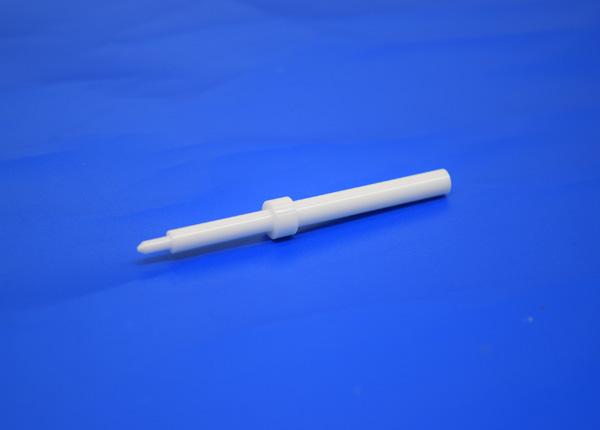

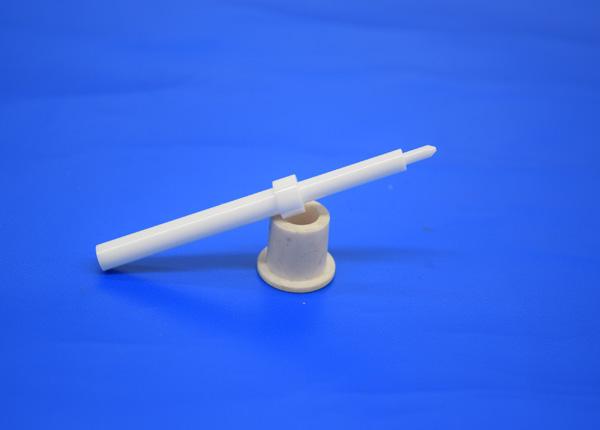

High Hardness Polished Zirconia Ceramic Pin / Rod / Bar for Industrial Machine Parts
2. Isostatic Pressed.
3. Long Service Life.
4. Superior Mechanical Strength.
5. High Corrosion and Wear Resistance.
6. Good Insulation Performance Precision.
7. High Temperature and Pressure Resistance.
8. High Purity Zirconia and Alumina Ceramic Material.
They are high corrosion and wear resistance and strong impact resistance and delivers 10 times longer working life than metal parts. They give a longer life to the sealed packing material.
|Properties||Units||95 Alumina||99 Alumina||Zirconia|
|Density||ɡ / cm3||3.65||3.92||5.95 - 6.0|
|Coefficient of Thermal Expansion||10-6 / K||7.9||8.5||10.5|
|Modulus of Elasticity Young’s Mod||Gpa||280||340||210|
|HV Hardness||Mpa||1400||1650||1300 - 1365|
|Flexural Strength @ Room Temperature||Mpa||280||310||950|
|Flexural Strength @ 700℃||Mpa||220||230||210|
|Compressive Strength@Room Temperature||Mpa||2000||2200||2000|
|Fracture Toughness||Mpa * m½||3.8||4.2||10|
|Heat Conductivity @ Room Temperature||W / m * k||18 - 25||26 - 30||2.0 - 2.2|
|Electrical Resistivity @ Room Temperature||Ω*mm2 / m||＞1015||＞1016||＞1015|
|Max Application Temperature||℃||1500||1750||1050|
|Resistance to Acid Alkaline||/||High||High||High|
|Dielectric Strength||KV / mm||16||22||/|
|Thermal Shock Resistance||Δ T ( ℃ )||220||180 - 200||282 - 350|
|Tensile Strength @ 25℃||Mpa||200||248||252|
Packaging and Shipping
Zirconia Ceramic Pin / Rod / Bar will be packed in a bubble bag individually, then separated by a foam, finally into outer carton, or OEM packing.
Shipped by Air ( DHL, TNT, UPS, Fedex, EMS ), or Sea transportation.
Who Are We?
Mingrui is a professional factory with years OEM experience in manufacturing industrial ceramic parts.
What Do We Do?

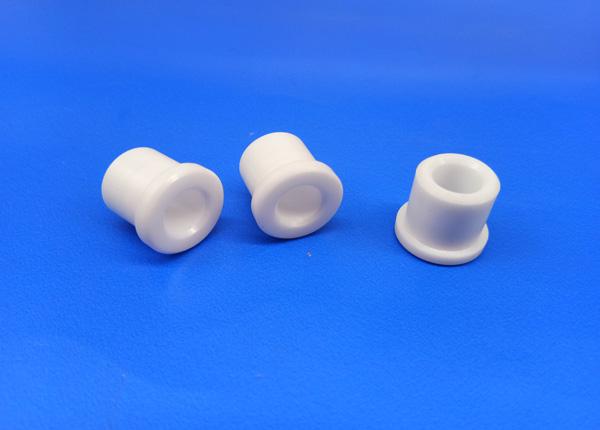

We produce (OEM ) strengthened structure zirconia and alumina ceramic rod, ring, tube, shaft, plate, sleeve, bushing, washer, valve, plunger, pin, nozzle and ceramic arm, etc., they are applicable to instruments, medical instruments, clocks and electronic products, mills, energy and power, machine and metals, autocar and military, spaceflight and some other high-end fields.
Our products with some certificates, such as , CE, TUV, etc..
Production Process Show
One-stop production, from the raw material to final product.
