Fire Resistance Zirconia Ceramic Pin Gauge, Size Customized Ceramic Dowel Pins

Fire Resistance Zirconia Ceramic Pin Gauge, Size Customized Ceramic Dowel Pins

    • Fire Resistance Zirconia Ceramic Pin Gauge, Size Customized Ceramic Dowel Pins
    • Fire Resistance Zirconia Ceramic Pin Gauge, Size Customized Ceramic Dowel Pins
    • Fire Resistance Zirconia Ceramic Pin Gauge, Size Customized Ceramic Dowel Pins
  • Fire Resistance Zirconia Ceramic Pin Gauge, Size Customized Ceramic Dowel Pins

    Product Details:

    Place of Origin: Guangdong, China(mainland)
    Brand Name: Custom
    Certification: ISO, ROHS,
    Model Number: Custom

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 PCS
    Price: Negotiable
    Packaging Details: Packed in PP bag or sponge tray, then put in standard export carton packing, or OEM packing.
    Delivery Time: 10-30 working days after receiving deposit
    Payment Terms: T/T, Western Union, Paypal
    Supply Ability: 5000 pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Zirconia Ceramic Pin Gauge / Dowel Pins Material: Zirconia / Alumina Ceramic
    Dielectric Constant: 9.5 ( 95 Alumina ), 9.8 ( 99 Alumina ), 26 ( Zirconia ) Dielectric Strength: 16KV / Mm ( 95 Alumina ), 22KV / Mm ( 99 Alumina )
    Max Application Temperature: 1500℃ ( 95 Alumina ), 1750℃ ( 99 Alumina ), 1050℃ ( Zirconia ) Compressive Strength@Room Temperature: 2000 - 2200 Mpa
    Heat Conductivity @ Room Temperature: 18 - 25 W / M * K ( 95 Alumina ), 26 - 30 W / M * K ( 99 Alumina ), 2.0 - 2.2 W / M * K ( Zirconia ) Color: White, Or Customized
    Size: Customized Application: Alumina Ceramic Dowel Pin Gauge

    Fire Resistance Zirconia Ceramic Pin Gauge, Size Customized Ceramic Dowel Pins


    Product Description


    Advantages of Zirconia Ceramic Pin Gauge / Dowel Pins​:

    1. Refractory.
    2. Isostatic Pressed.
    3. Long Service Life.
    4. Superior Mechanical Strength.
    5. High Corrosion and Wear Resistance.
    6. Good Insulation Performance Precision.
    7. High Temperature and Pressure Resistance.
    8. High Purity Zirconia and Alumina Ceramic Material.

    They are high corrosion and wear resistance and strong impact resistance and delivers 10 times longer working life than metal parts. They give a longer life to the sealed packing material.

    Properties Sheet:


    PropertiesUnits95 Alumina99 AluminaZirconia
    Densityɡ / cm33.653.925.95 - 6.0
    Water Absorption000
    Coefficient of Thermal Expansion10-6 / K7.98.510.5
    Modulus of Elasticity Young’s ModGpa280340210
    Poisson’s Ratio/0.210.220.3
    HV HardnessMpa140016501300 - 1365
    Flexural Strength @ Room TemperatureMpa280310950
    Flexural Strength @ 700℃Mpa220230210
    Compressive Strength@Room TemperatureMpa200022002000
    Fracture ToughnessMpa * m½3.84.210
    Heat Conductivity @ Room TemperatureW / m * k18 - 2526 - 302.0 - 2.2
    Electrical Resistivity @ Room TemperatureΩ*mm2 / m>1015>1016>1015
    Max Application Temperature150017501050
    Resistance to Acid Alkaline/HighHighHigh
    Dielectric Constant/9.59.826
    Dielectric StrengthKV / mm1622/
    Thermal Shock ResistanceΔ T ( ℃ )220180 - 200282 - 350
    Tensile Strength @ 25℃Mpa200248252

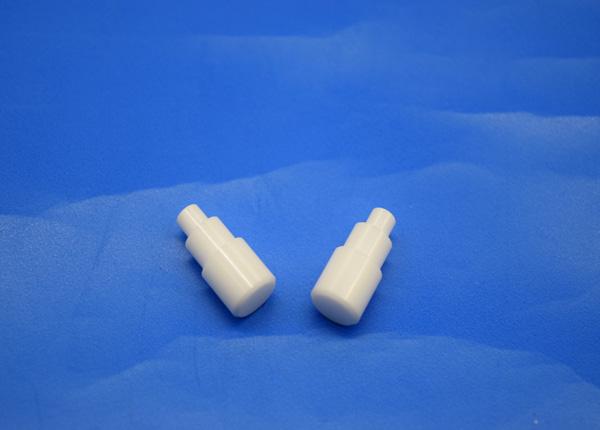

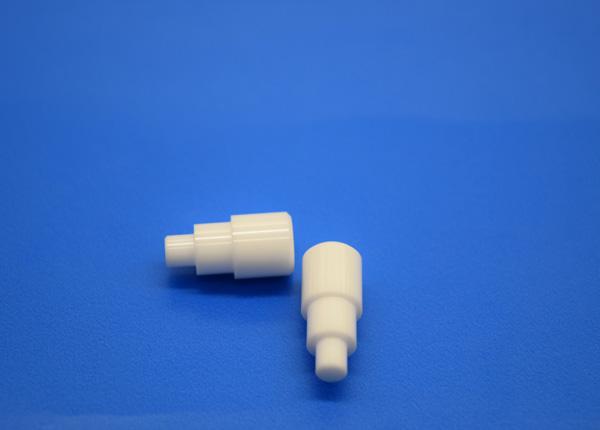

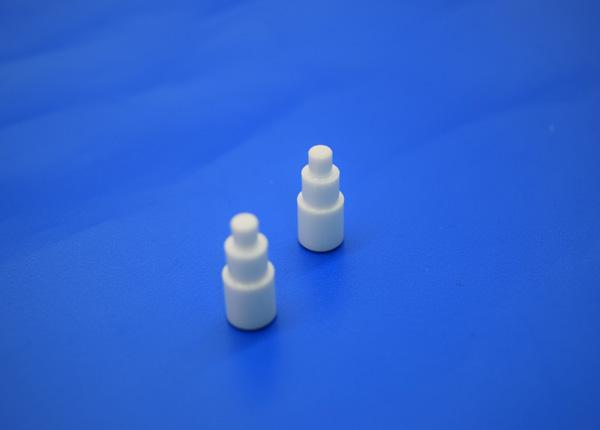

    Detailed Images

    Fire Resistance Zirconia Ceramic Pin Gauge, Size Customized Ceramic Dowel PinsFire Resistance Zirconia Ceramic Pin Gauge, Size Customized Ceramic Dowel PinsFire Resistance Zirconia Ceramic Pin Gauge, Size Customized Ceramic Dowel Pins

    Related Products

    Fire Resistance Zirconia Ceramic Pin Gauge, Size Customized Ceramic Dowel PinsFire Resistance Zirconia Ceramic Pin Gauge, Size Customized Ceramic Dowel Pins


    Packaging and Shipping

    Zirconia Ceramic Pin Gauge / Dowel Pins will be packed in PP bag or sponge tray, then put in standard export carton packing, or OEM packing.

    Shipped by Air ( DHL, TNT, UPS, Fedex, EMS ), or Sea transportation.

    Fire Resistance Zirconia Ceramic Pin Gauge, Size Customized Ceramic Dowel Pins
    Fire Resistance Zirconia Ceramic Pin Gauge, Size Customized Ceramic Dowel Pins


    Company information

    Who Are We?

    Mingrui is a professional factory with years OEM experience in manufacturing industrial ceramic parts.

    What Do We Do?

    We produce (OEM ) strengthened structure zirconia and alumina ceramic rod, ring, tube, shaft, plate, sleeve, bushing, washer, valve, plunger, pin, nozzle and ceramic arm, etc., they are applicable to instruments, medical instruments, clocks and electronic products, mills, energy and power, machine and metals, autocar and military, spaceflight and some other high-end fields.

    All of our products with certificates, such as , CE, TUV, etc..


    Factory Show

    Fire Resistance Zirconia Ceramic Pin Gauge, Size Customized Ceramic Dowel Pins


    Production Process Show

    One-stop production, from the raw material to final product.

    Fire Resistance Zirconia Ceramic Pin Gauge, Size Customized Ceramic Dowel Pins
