High Precision Zirconia Ceramic Threaded Rod , Aluminum Threaded Rod / Tubes Rods Pipes

High Precision Zirconia Ceramic Threaded Rod , Aluminum Threaded Rod / Tubes Rods Pipes

    • High Precision Zirconia Ceramic Threaded Rod , Aluminum Threaded Rod / Tubes Rods Pipes
    • High Precision Zirconia Ceramic Threaded Rod , Aluminum Threaded Rod / Tubes Rods Pipes
    • High Precision Zirconia Ceramic Threaded Rod , Aluminum Threaded Rod / Tubes Rods Pipes
  • High Precision Zirconia Ceramic Threaded Rod , Aluminum Threaded Rod / Tubes Rods Pipes

    Product Details:

    Place of Origin: Guangdong, China(mainland)
    Brand Name: OEM
    Certification: ISO2008, TUV, CE,ROHS
    Model Number: Customer's requirment

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 PCS
    Price: Negotiable
    Packaging Details: Packed in a bubble bag individually, then separated by a foam, finally put in standard export carton packing, or OEM packing.
    Delivery Time: 15-30 working days after receiving deposit
    Payment Terms: T/T, Western Union, Paypal
    Supply Ability: 5000 pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Zirconia Ceramic Threaded Rod Material: Zirconia / Alumina Ceramic
    HV Hardness: 1300 - 1650 Mpa Max Application Temperature: ℃ / 1500 ( 95 Alumina ), 1750 ( 99 Alumina ), 1050 ( Zirconia )
    Fracture Toughness: Mpa * M½ / 3.8 ( 95 Alumina ), 4.2 ( 99 Alumina ), 10 ( Zirconia ) Compressive Strength@Room Temperature: 2000 - 2200 Mpa
    Heat Conductivity @ Room Temperature: W / M * K / 18 - 25 ( 95 Alumina ), 26 - 30 ( 99 Alumina ), 2.0 - 2.2 ( Zirconia ) Color: White, Or Customized
    Size: Customized Application: High Precision Alumina Zirconia Ceramic Threaded Rods Tubes Pipes

    High Precision Zirconia Ceramic Threaded Rod , Aluminum Threaded Rod / Tubes Rods Pipes


    Product Description

    Advantages of Zirconia Ceramic Threaded Rod​​:

    1. Refractory.
    2. Long Service Life.
    3. High polishing surface.
    4. Superior Mechanical Strength.
    5. High Corrosion and Wear Resistance.
    6. Good Insulation Performance Precision.
    7. High Temperature and Pressure Resistance.
    8. High Purity Zirconia and Alumina Ceramic Material.

    They are high corrosion and wear resistance and strong impact resistance and delivers 10 times longer working life than metal rods / tubes.

    Properties Sheet:


    PropertiesUnits95 Alumina99 AluminaZirconia
    Densityɡ / cm33.653.925.95 - 6.0
    Water Absorption000
    Coefficient of Thermal Expansion10-6 / K7.98.510.5
    Modulus of Elasticity Young’s ModGpa280340210
    Poisson’s Ratio/0.210.220.3
    HV HardnessMpa140016501300 - 1365
    Flexural Strength @ Room TemperatureMpa280310950
    Flexural Strength @ 700℃Mpa220230210
    Compressive Strength@Room TemperatureMpa200022002000
    Fracture ToughnessMpa * m½3.84.210
    Heat Conductivity @ Room TemperatureW / m * k18 - 2526 - 302.0 - 2.2
    Electrical Resistivity @ Room TemperatureΩ*mm2 / m>1015>1016>1015
    Max Application Temperature150017501050
    Resistance to Acid Alkaline/HighHighHigh
    Dielectric Constant/9.59.826
    Dielectric StrengthKV / mm1622/
    Thermal Shock ResistanceΔ T ( ℃ )220180 - 200282 - 350
    Tensile Strength @ 25℃Mpa200248252

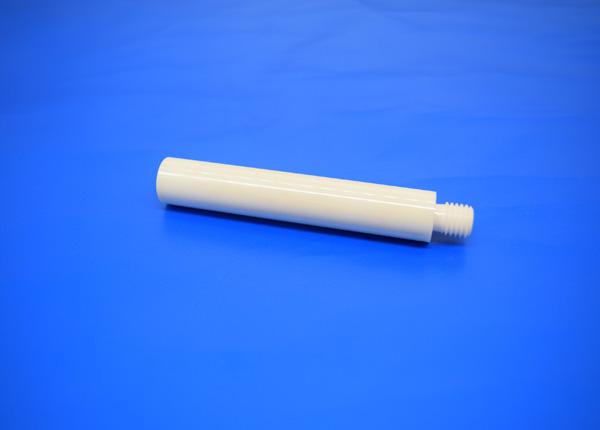

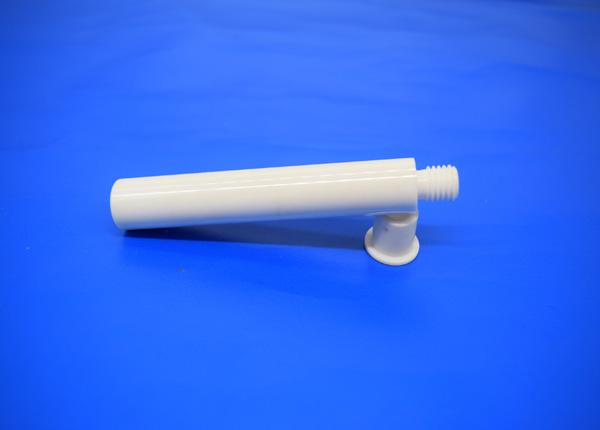

    Detailed Images

    High Precision Zirconia Ceramic Threaded Rod , Aluminum Threaded Rod / Tubes Rods PipesHigh Precision Zirconia Ceramic Threaded Rod , Aluminum Threaded Rod / Tubes Rods Pipes

    Related Products
    High Precision Zirconia Ceramic Threaded Rod , Aluminum Threaded Rod / Tubes Rods PipesHigh Precision Zirconia Ceramic Threaded Rod , Aluminum Threaded Rod / Tubes Rods Pipes


    Packaging and Shipping

    Zirconia Ceramic Threaded Rod​​ will be packed in a bubble bag individually, then separated by a foam, finally put in standard export carton packing, or OEM packing.

    Shipped by Air ( DHL, TNT, UPS, Fedex, EMS ), or Sea transportation.

    High Precision Zirconia Ceramic Threaded Rod , Aluminum Threaded Rod / Tubes Rods Pipes
    High Precision Zirconia Ceramic Threaded Rod , Aluminum Threaded Rod / Tubes Rods Pipes


    Company information

    Who Are We?

    Mingrui is a professional factory with years OEM experience in manufacturing industrial ceramic parts.

    What Do We Do?

    We produce (OEM ) strengthened structure zirconia and alumina ceramic rod, ring, tube, shaft, plate, sleeve, bushing, washer, valve, plunger, pin, nozzle and ceramic arm, etc., they are applicable to instruments, medical instruments, clocks and electronic products, mills, energy and power, machine and metals, autocar and military, spaceflight and some other high-end fields.

    Our products with some certificates, such as , CE, TUV, etc..


    Factory Show

    High Precision Zirconia Ceramic Threaded Rod , Aluminum Threaded Rod / Tubes Rods Pipes


    Production Process Show

    One-stop production, from the raw material powder to final product.

    High Precision Zirconia Ceramic Threaded Rod , Aluminum Threaded Rod / Tubes Rods Pipes
