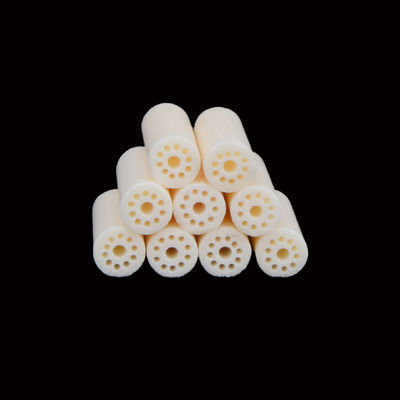

Heat Exchange Alumina High Temperature Ceramic Tube Thermocouple Ceramic Insulation Tube
| Place of Origin | CHINA |
|---|---|
| Brand Name | MH |
| Certification | ISO9001 ROHS |
| Model Number | MH05 |
| Minimum Order Quantity | 100 PCS |
| Price | USD 0.1-3 PCS5 |
| Packaging Details | CARTON/WOODEN BOX |
| Delivery Time | 15-20DAYS |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 5000 PCS PER WEEK |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | 99% Alumina Ceramic | Color | Light Yellow |
|---|---|---|---|
| Density | 3.9 G/cm³ | Certifications | ROHS ISO9001 |
| Hardness | 10.7 Gpa | Size | Customized |
| Flexural Strength | 300 Mpa | Thermal Conductivity | 25 W/(m.k) |
| Insulation Breakdown Intensity | 18 KT/mm | OEM,ODM | Acceptable |
| High Light | Heat Exchange high temperature ceramic tube,18KT/mm high temperature ceramic tube,Light yellow ceramic laser tube |
||
Product Description
Heat exchange alumina thermocouple ceramic insulation tube
Alumina Ceramic
Alumina ceramic is a kind of material based on alumina (Al2O3), which is used in thick film integrated circuit. Alumina ceramics have good conductivity, mechanical strength and high temperature resistance. It needs to be noted that ultrasonic cleaning is needed.
Features & Advantages
1. High hardness.
2. High heat resistance: alumina ceramic has excellentthermal stability,which means that it is widely used in areas where resistance to high temperatures is essential.
3. Good wear resistance: alumina ceramic is the material of choice for alumina wear parts.
4. High electrical resistivity: alumina is an electrically insulating material.
5. High corrosion resistance: it is insoluble in water and only slightly soluble in strong acid and alkaline solutions. Good chemical stability of alumina leads to high corrosion resistance.
| Properties | Unit | Steatite ceramic | 95% Al2O3 | 99% Al2O3 | Zirconia Ceramic |
| Density | g/cm³ | 2.8 | 3.6 | 3.8 | 5.6 |
| Flexural strength | Mpa | 145 | 300 | 300 | 354 |
| Max Working Temperature | ℃ | 1100 | 1400 | 1600 | 1400 |
| Sintering temperature | ℃ | 1350 | 1700 | 1750 | 1550 |
| Heat resistance | T(℃) | 200 | 220 | 200 | 350 |
| Hardness | Gpa | 5.7 | 7 | 10.7 | 12.3 |
| Elastic modulus | Gpa | 120 | 275 | 320 | 205 |
| Poissons ratio | - | 0.21 | 0.22 | 0.22 | 0.30 |
| Linear expansion coefficient | x 10-6/℃ | 7.9 | 7.1 | 7.8 | 9 |
| Insulation breakdown Intensity | KT/mm | 10 | 16 | 18 | 15 |
| Thermal conductivity | w/(m.k) | 2.5 | 20 | 25 | 2.5 |
| Specific Heat | *10-3J/(kg*K) | 0.75 | 0.78 | 0.78 | 0.4 |
