Wear Resistant 99% Alumina Ceramic Plate Grinded Heat Resistant Ceramic Substrate

Product Details

Place of Origin: CHINA

Brand Name: MH

Certification: ISO9001 ROHS

Model Number: MH01

Payment & Shipping Terms

Minimum Order Quantity: 100 PCS

Price: USD 0.1-10PCS

Packaging Details: CARTON/WOODEN BOX

Delivery Time: 15-20DAYS

Payment Terms: L/C, T/T, Western Union

Supply Ability: 5000 PCS PER WEEK

Get Best Price
High Light:

99% Alumina Ceramic Plate

,

Alumina Ceramic Plate Wear resistant

,

heat resistant ceramic substrate

Material:
99% Alumina Ceramic
Color:
Light Yellow
Density:
3.9 G/cm³
Certifications:
ROHS ISO9001
Hardness:
10.7 Gpa
Size:
Customized
Flexural Strength:
300 Mpa
Thermal Conductivity:
25 W/(m.k)
Insulation Breakdown Intensity:
18 KT/mm
OEM,ODM:
Acceptable
Material:
99% Alumina Ceramic
Color:
Light Yellow
Density:
3.9 G/cm³
Certifications:
ROHS ISO9001
Hardness:
10.7 Gpa
Size:
Customized
Flexural Strength:
300 Mpa
Thermal Conductivity:
25 W/(m.k)
Insulation Breakdown Intensity:
18 KT/mm
OEM,ODM:
Acceptable
Wear Resistant 99% Alumina Ceramic Plate Grinded Heat Resistant Ceramic Substrate



Wear resistant 99% alumina ceramic plate grinded heat resistant ceramic substrate


Our ceramic plate sheet substrate disc made by advance ceramic like 95%-99.99% aluminium oxide ceramics, zircomium oxide ceramic etc which have high temperature resisting, corrosion resistance, chemical resisting, thermal conducitity, insulating etc best performance.





Properties Unit Steatite ceramic 95% Al2O3 99% Al2O3 Zirconia Ceramic
Density g/cm³ 2.8 3.6 3.8 5.6
Flexural strength Mpa 145 300 300 354
Max Working Temperature 1100 1400 1600 1400
Sintering temperature 1350 1700 1750 1550
Heat resistance T(℃) 200 220 200 350
Hardness Gpa 5.7 7 10.7 12.3
Elastic modulus Gpa 120 275 320 205
Poissons ratio - 0.21 0.22 0.22 0.30
Linear expansion coefficient x 10-6/℃ 7.9 7.1 7.8 9
Insulation breakdown Intensity KT/mm 10 16 18 15
Thermal conductivity w/(m.k) 2.5 20 25 2.5
Specific Heat *10-3J/(kg*K) 0.75 0.78 0.78 0.4

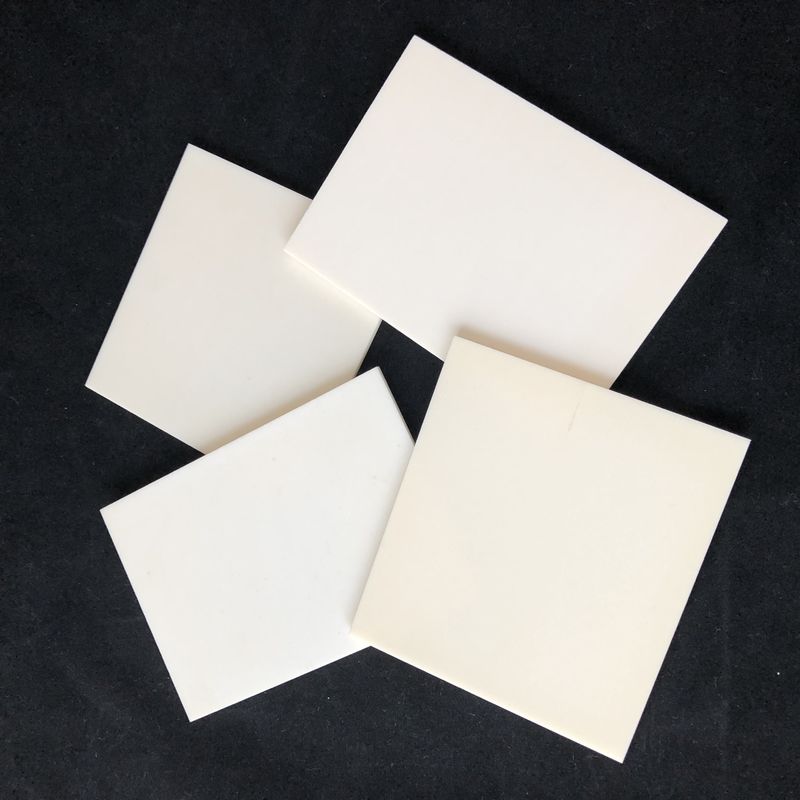

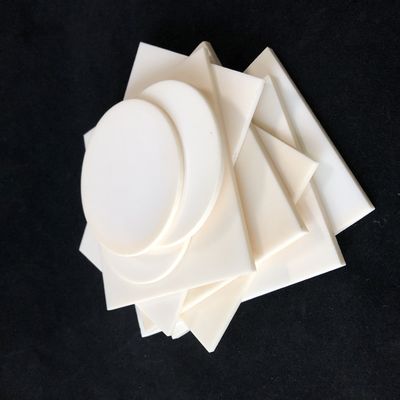

Wear Resistant 99% Alumina Ceramic Plate Grinded Heat Resistant Ceramic Substrate 0Wear Resistant 99% Alumina Ceramic Plate Grinded Heat Resistant Ceramic Substrate 1Wear Resistant 99% Alumina Ceramic Plate Grinded Heat Resistant Ceramic Substrate 2
