Product Details
Place of Origin: China
Brand Name: MH
Certification: ISO9001 RoHS
Payment & Shipping Terms
Minimum Order Quantity: 100 pcs
Price: USD 6.00 pcs
Packaging Details: Export carton
Delivery Time: 15-25 work days
Payment Terms: L/C, T/T
Supply Ability: 10000
Color: |
Yellow |
Density: |
3.8 G/cm3 |
Suface Treatment: |
Finish Grinding |
OEM,ODM: |
Accept |
Material: |
Alumina Ceramic |
Hardness: |
10.7 Gpa |
Flexural Strength: |
300 Mpa |
Thermal Conductivity: |
25 W/(m.k) |
Insulation Breakdown Intensity: |
18 KT/mm |
Certifications: |
ISO9001 RoHS |
Color: |
Yellow |
Density: |
3.8 G/cm3 |
Suface Treatment: |
Finish Grinding |
OEM,ODM: |
Accept |
Material: |
Alumina Ceramic |
Hardness: |
10.7 Gpa |
Flexural Strength: |
300 Mpa |
Thermal Conductivity: |
25 W/(m.k) |
Insulation Breakdown Intensity: |
18 KT/mm |
Certifications: |
ISO9001 RoHS |

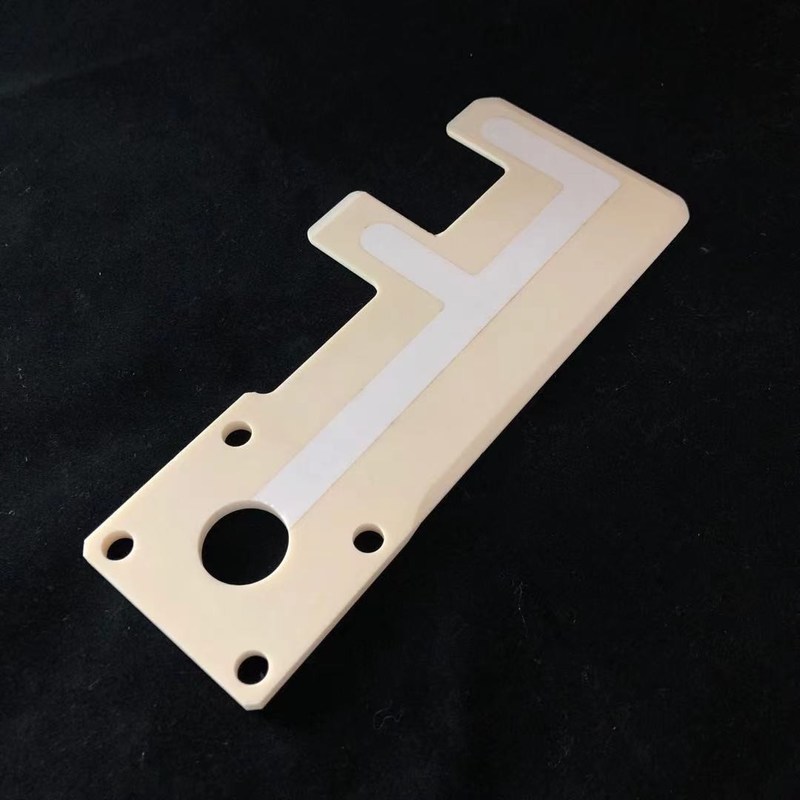

finish machining al2o3 ceramic vacuum suction 99 alumina ceramic plate
Alumina Ceramic
Alumina ceramic is a kind of material based on alumina (Al2O3), which is used in thick film integrated circuit. Alumina ceramics have good conductivity, mechanical strength and high temperature resistance. It needs to be noted that ultrasonic cleaning is needed.Because of its superior performance, it has been widely used in modern society, meeting the needs of daily use and special performance.
The applications for alumina advanced ceramics are heavy-duty forming tools, substrates and resistor cores in the electronics industry, tiles for wear protection and ballistics, thread guides in textile engineering, seal and regulator discs for valves, heat-sinks for lighting systems, protection tubes in thermal processes or catalyst carriers for the chemicals industry.
Features & Advantages
1. High hardness.
2. High heat resistance: alumina ceramic has excellent thermal stability,which means that it is widely used in areas where resistance to high temperatures is essential.
3. Good wear resistance: alumina ceramic is the material of choice for alumina wear parts.
4. High electrical resistivity: alumina is an electrically insulating material.
5. High corrosion resistance: it is insoluble in water and only slightly soluble in strong acid and alkaline solutions. Good chemical stability of alumina leads to high corrosion resistance.
| Properties | Unit | Steatite ceramic | 95% Al2O3 | 99% Al2O3 | Zirconia Ceramic |
| Density | g/cm³ | 2.7 | 3.6 | 3.8 | 5.6 |
| Flexural strength | Mpa | 145 | 300 | 300 | 354 |
| Max Working Temperature | ℃ | 1200 | 1400 | 1500 | 1400 |
| Sintering temperature | ℃ | 1350 | 1700 | 1750 | 1600 |
| Heat resistance | T(℃) | 200 | 220 | 200 | 350 |
| Hardness | Gpa | 5.7 | 7 | 10.7 | 12.3 |
| Elastic modulus | Gpa | 120 | 275 | 320 | 205 |
| Poissons ratio | - | 0.21 | 0.22 | 0.22 | 0.30 |
| Linear expansion coefficient | x 10-6/℃ | 7.9 | 7.1 | 7.8 | 9 |
Packing & Delivery
