Product Details
Place of Origin: CHINA
Brand Name: MH
Certification: ISO9001 ROHS
Payment & Shipping Terms
Minimum Order Quantity: 100
Price: USD 1-6 PCS
Packaging Details: CARTON/WOODEN BOX
Delivery Time: 15-20DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 PCS WEEK
Material: |
99% Alumina Ceramic |
Color: |
Light Yellow |
Density: |
3.9 G/cm³ |
Certificate: |
ROHS ISO9001 |
Hardness: |
10.7 Gpa |
Size: |
Customers' Requests |
Flexural Strength: |
300 Mpa |
Thermal Conductivity: |
25 W/(m.k) |
Insulation Breakdown Intensity: |
18 KT/mm |
OEM,ODM: |
Accept |
Material: |
99% Alumina Ceramic |
Color: |
Light Yellow |
Density: |
3.9 G/cm³ |
Certificate: |
ROHS ISO9001 |
Hardness: |
10.7 Gpa |
Size: |
Customers' Requests |
Flexural Strength: |
300 Mpa |
Thermal Conductivity: |
25 W/(m.k) |
Insulation Breakdown Intensity: |
18 KT/mm |
OEM,ODM: |
Accept |

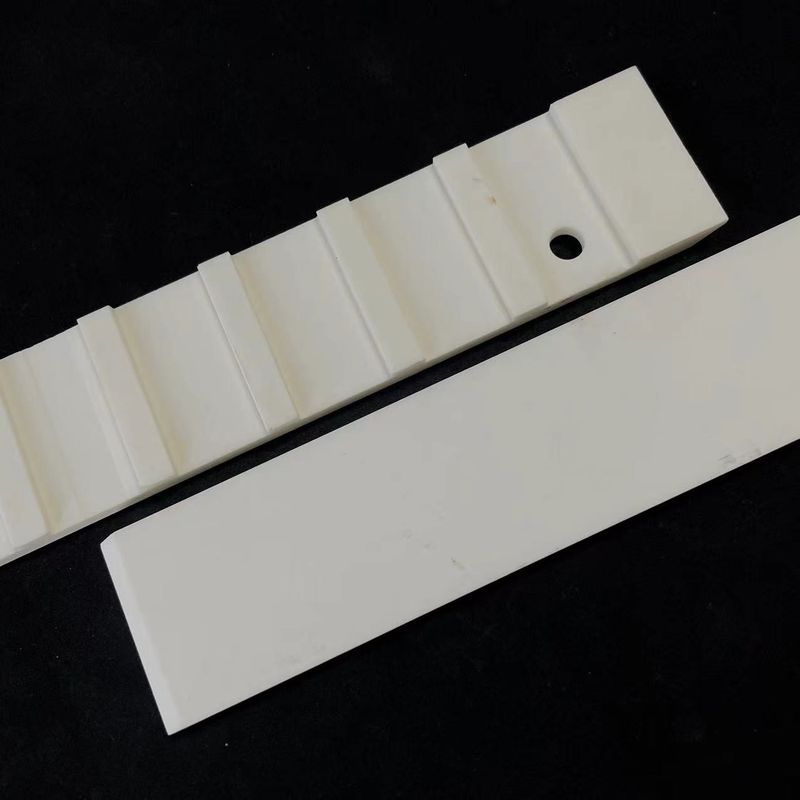

Semiconductor ceramic wafer insulating electronic ceramic parts
Features
✔High mechanical strength and hardness
✔Good electrical insulation
✔Low dielectric constant and dielectric loss
✔Similar thermal expansion with Si
✔High thermal conductivity
✔Excellent corrosion resistance
✔Non-toxic
✔Available for surface metalization
Alumina Ceramic
Alumina ceramic is the most mature of the engineering ceramics, offering excellent electrical insulation properties together with high hardness and good wear resistance,but relatively low strength and fracture toughness.Alumina ceramic is generally white but may also be pink or ivory.The color is derived from either the sintering additives or impurities in the raw materials.
| Properties | Unit | Steatite ceramic | 95% Al2O3 | 99% Al2O3 | Zirconia Ceramic |
| Density | g/cm³ | 2.8 | 3.6 | 3.8 | 5.6 |
| Flexural strength | Mpa | 145 | 300 | 300 | 354 |
| Max Working Temperature | ℃ | 1100 | 1400 | 1600 | 1400 |
| Sintering temperature | ℃ | 1350 | 1700 | 1750 | 1550 |
| Heat resistance | T(℃) | 200 | 220 | 200 | 350 |
| Hardness | Gpa | 5.7 | 7 | 10.7 | 12.3 |
| Elastic modulus | Gpa | 120 | 275 | 320 | 205 |
| Poissons ratio | - | 0.21 | 0.22 | 0.22 | 0.30 |
| Linear expansion coefficient | x 10-6/℃ | 7.9 | 7.1 | 7.8 | 9 |
| Insulation breakdown Intensity | KT/mm | 10 | 16 | 18 | 15 |
| Thermal conductivity | w/(m.k) | 2.5 | 20 | 25 | 2.5 |
| Specific Heat | *10-3J/(kg*K) | 0.75 | 0.78 | 0.78 | 0.4 |
