Product Details
Place of Origin: china
Brand Name: MH
Certification: Rohs
Model Number: MH65125
Payment & Shipping Terms
Minimum Order Quantity: 1000
Price: usd + 0.4-0.5+ pcs
Packaging Details: use export carton which is secure against breakager
Supply Ability: 10000+pcs+week
Materlai: |
95% Alumina Ceramic |
Color: |
White |
Density: |
3.6 G/cm3 |
MOQ: |
500 |
OEM,ODM: |
Acceptable |
Hardness: |
1500 |
Max Operating Temp: |
1400 |
Origin: |
China |
Materlai: |
95% Alumina Ceramic |
Color: |
White |
Density: |
3.6 G/cm3 |
MOQ: |
500 |
OEM,ODM: |
Acceptable |
Hardness: |
1500 |
Max Operating Temp: |
1400 |
Origin: |
China |

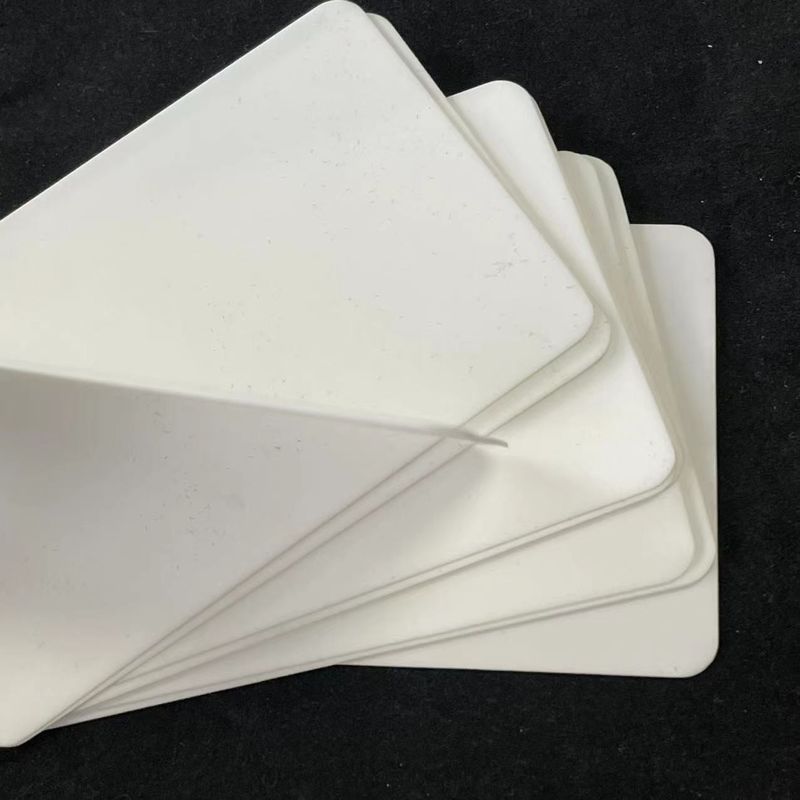

ceramic bookmark ceramic business card customizable pattern
Alumina Ceramic
Alumina ceramic is the most mature of the engineering ceramics, offering excellent electrical insulation properties together with high hardness and good wear resistance,but relatively low strength and fracture toughness.Alumina ceramic is generally white but may also be pink or ivory.The color is derived from either the sintering additives or impurities in the raw materials.
Features & Advantages
1. High hardness.
2. High heat resistance: alumina ceramic has excellentthermal stability,which means that it is widely used in areas where resistance to high temperatures is essential.
3. Good wear resistance: alumina ceramic is the material of choice for alumina wear parts.
4. High electrical resistivity: alumina is an electrically insulating material.
5. High corrosion resistance: it is insoluble in water and only slightly soluble in strong acid and alkaline solutions. Good chemical stability of alumina leads to high corrosion resistance.
| Properties | Unit | Steatite ceramic | 95% Al2O3 | 99% Al2O3 | Zirconia Ceramic |
| Density | g/cm³ | 2.7 | 3.6 | 3.8 | 5.6 |
| Flexural strength | Mpa | 145 | 300 | 300 | 354 |
| Max Working Temperature | ℃ | 1100 | 1400 | 1500 | 1500 |
| Sintering temperature | ℃ | 1350 | 1700 | 1750 | 1600 |
| Heat resistance | T(℃) | 200 | 220 | 200 | 350 |
| Hardness | Gpa | 5.7 | 7 | 10.7 | 12.3 |
| Elastic modulus | Gpa | 120 | 275 | 320 | 205 |
| Poissons ratio | - | 0.21 | 0.22 | 0.22 | 0.30 |
| Linear expansion coefficient | x 10-6/℃ | 7.9 | 7.1 | 7.8 | 9 |
| Insulation breakdown Intensity | KT/mm | 10 | 16 | 18 | 15 |
| Thermal conductivity | w/(m.k) | 2.5 | 20 | 25 | 2.5 |
| Specific Heat | *10-3J/(kg*K) | 0.75 | 0.78 | 0.78 | 0.4 |
