Kiln Al2O3 Aluminum Oxide Ceramic High Temperature Resistance Alumina Ceramic Roller

Product Details

Place of Origin: CHINA

Brand Name: MH

Certification: ISO9001 ROHS

Model Number: MH01

Payment & Shipping Terms

Minimum Order Quantity: 100 PCS

Price: USD 0.5-3 PCS

Packaging Details: CARTON/WOODEN BOX

Delivery Time: 15-20DAYS

Payment Terms: L/C, T/T, Western Union

Supply Ability: 5000 PCS PER WEEK

Get Best Price
High Light:

kiln Aluminum Oxide Ceramic

,

Al2O3 Aluminum Oxide Ceramic

,

High Temperature Resistance alumina ceramic roller

Material:
Alumina Ceramic
Color:
Light Yellow
Density:
3.9 G/cm³
Certifications:
ROHS ISO9001
Hardness:
10.7 Gpa
Size:
Customized
Flexural Strength:
300 Mpa
Thermal Conductivity:
25 W/(m.k)
Insulation Breakdown Intensity:
18 KT/mm
OEM,ODM:
Acceptable
Material:
Alumina Ceramic
Color:
Light Yellow
Density:
3.9 G/cm³
Certifications:
ROHS ISO9001
Hardness:
10.7 Gpa
Size:
Customized
Flexural Strength:
300 Mpa
Thermal Conductivity:
25 W/(m.k)
Insulation Breakdown Intensity:
18 KT/mm
OEM,ODM:
Acceptable
Kiln Al2O3 Aluminum Oxide Ceramic High Temperature Resistance Alumina Ceramic Roller

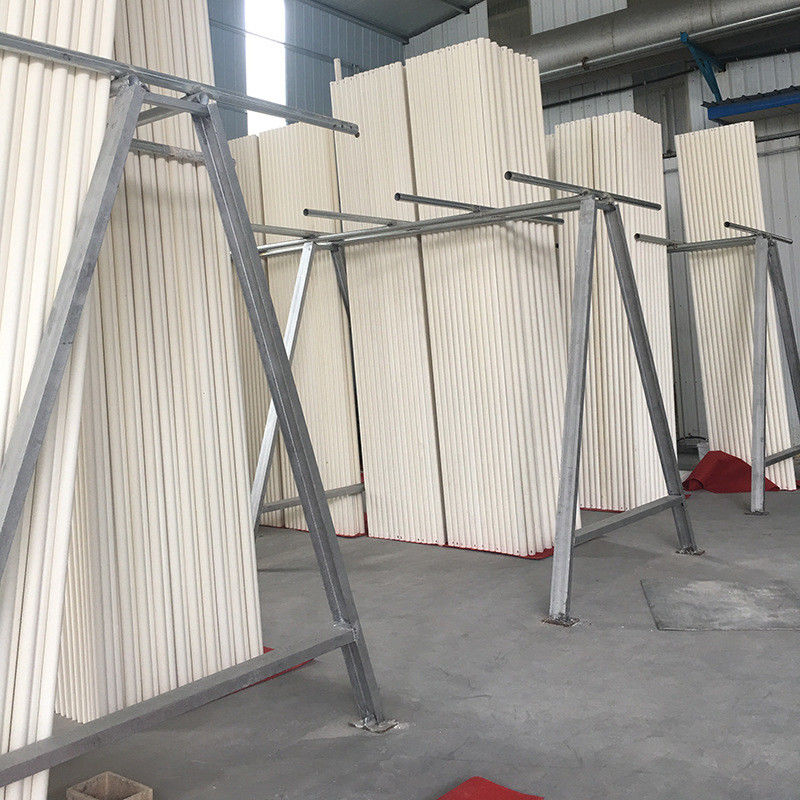

High quality alumina ceramic roller high temperature resistance ceramic roller used in the kiln



Alumina Ceramic
Alumina ceramic is the most mature of the engineering ceramics, offering excellent electrical insulation properties together with high hardness and good wear resistance,but relatively low strength and fracture toughness.Alumina ceramic is generally white but may also be pink or ivory.The color is derived from either the sintering additives or impurities in the raw materials.

Features & Advantages
1. High hardness.
2. High heat resistance: alumina ceramic has excellentthermal stability,which means that it is widely used in areas where resistance to high temperatures is essential.
3. Good wear resistance: alumina ceramic is the material of choice for alumina wear parts.
4. High electrical resistivity: alumina is an electrically insulating material.
5. High corrosion resistance: it is insoluble in water and only slightly soluble in strong acid and alkaline solutions. Good chemical stability of alumina leads to high corrosion resistance.









Properties Unit Steatite ceramic 95% Al2O3 99% Al2O3 Zirconia Ceramic
Density g/cm³ 2.8 3.6 3.8 5.6
Flexural strength Mpa 145 300 300 354
Max Working Temperature 1100 1400 1600 1400
Sintering temperature 1350 1700 1750 1550
Heat resistance T(℃) 200 220 200 350
Hardness Gpa 5.7 7 10.7 12.3
Elastic modulus Gpa 120 275 320 205
Poissons ratio - 0.21 0.22 0.22 0.30
Linear expansion coefficient x 10-6/℃ 7.9 7.1 7.8 9
Insulation breakdown Intensity KT/mm 10 16 18 15
Thermal conductivity w/(m.k) 2.5 20 25 2.5
Specific Heat *10-3J/(kg*K) 0.75 0.78 0.78 0.4
