Product Details
Place of Origin: CHINA
Brand Name: MH
Certification: ISO9001 ROHS
Model Number: MH01
Payment & Shipping Terms
Minimum Order Quantity: 1000 pcs
Price: USD 0.05-0.2/PCS
Packaging Details: Export carton
Delivery Time: 15-20DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 PCS WEEK
Material: |
Steatite Ceramic |
Color: |
White |
Density: |
2.8g/cm³ |
Working Temperature: |
1100℃ |
OEM,ODM: |
Acceptable |
MOQ: |
1000 Pcs |
Package: |
Carton |
Material: |
Steatite Ceramic |
Color: |
White |
Density: |
2.8g/cm³ |
Working Temperature: |
1100℃ |
OEM,ODM: |
Acceptable |
MOQ: |
1000 Pcs |
Package: |
Carton |

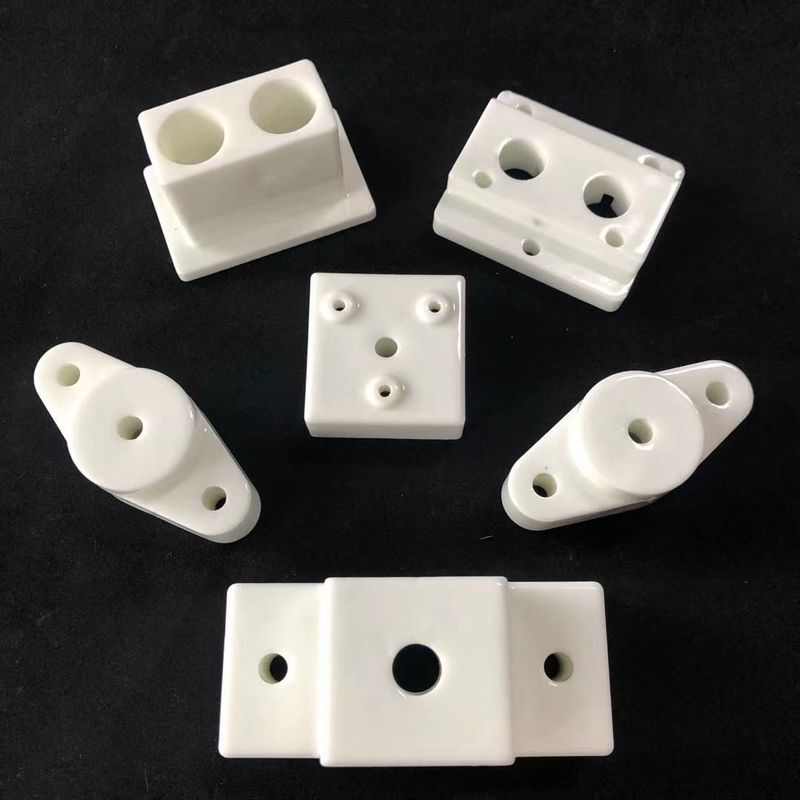

Factory price steatite ceramic insulator heat resistant ceramic parts
Properties:
* Good electrical insulation
* High dimensional tolerances
* Excellent corrosion resistance
* Very high working temperatures
* Excellent thermal shock properties
Features:
1) A variety of specifications available.
2) Satisfy various technical request
3) Lower medium spoilage
4) Good insulation performance and high temperature resistance
5) Stiffness texture
6) Used in all electric products, electric heating products and wear resistant machinery parts.
We can supply the products according to customer's drawings, samples and performance requirement.
| Properties | Unit | Steatite ceramic | 95% Al2O3 | 99% Al2O3 | Zirconia Ceramic |
| Density | g/cm³ | 2.8 | 3.6 | 3.8 | 5.6 |
| Flexural strength | Mpa | 145 | 300 | 300 | 354 |
| Max Working Temperature | ℃ | 1100 | 1400 | 1600 | 1400 |
| Sintering temperature | ℃ | 1350 | 1700 | 1750 | 1550 |
| Heat resistance | T(℃) | 200 | 220 | 200 | 350 |
| Hardness | Gpa | 5.7 | 7 | 10.7 | 12.3 |
| Elastic modulus | Gpa | 120 | 275 | 320 | 205 |
| Poissons ratio | - | 0.21 | 0.22 | 0.22 | 0.30 |
| Linear expansion coefficient | x 10-6/℃ | 7.9 | 7.1 | 7.8 | 9 |
| Insulation breakdown Intensity | KT/mm | 10 | 16 | 18 | 15 |
| Thermal conductivity | w/(m.k) | 2.5 | 20 | 25 | 2.5 |
| Specific Heat | *10-3J/(kg*K) | 0.75 | 0.78 | 0.78 | 0.4 |
