Product Details
Place of Origin: CHINA
Brand Name: MH
Certification: ISO9001 ROHS
Model Number: MH01
Payment & Shipping Terms
Minimum Order Quantity: 500 pcs
Price: USD 0.1-0.25/PCS
Packaging Details: Export carton
Delivery Time: 15-20DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 PCS WEEK
Material: |
Steatite Ceramic |
Color: |
White |
Density: |
2.8g/cm³ |
Working Temperature: |
1000℃ |
OEM,ODM: |
Acceptable |
Origin: |
China |
MOQ: |
500 Pcs |
Package: |
Carton |
Material: |
Steatite Ceramic |
Color: |
White |
Density: |
2.8g/cm³ |
Working Temperature: |
1000℃ |
OEM,ODM: |
Acceptable |
Origin: |
China |
MOQ: |
500 Pcs |
Package: |
Carton |

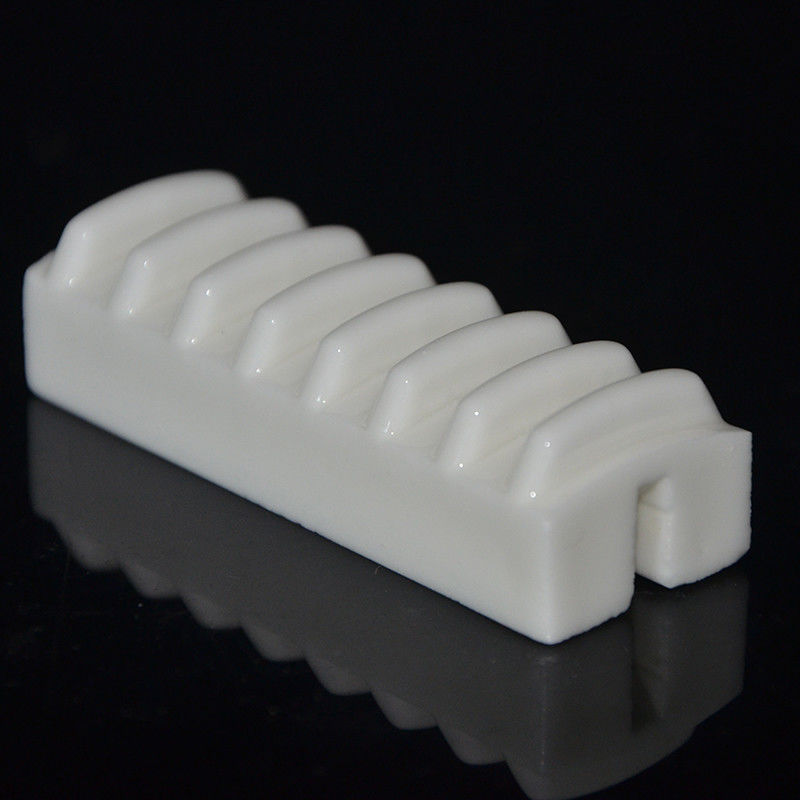

Structural Ceramic Insulators Electronic Ceramic Steatite Ceramic Housing
Steatite Ceramic
Features & Advantages
1. Good dielectric strength
2. Heat resistance and form stability up to 1000°C
3. High mechanical strength
4. Non-combustible
5. Resistant to UV radiation
Steatite is an inorganic material based on natural raw materials consisting predominantly of magnesium silicate. It is marked by a high heat resistance, resistance to leakage current and dielectric strength. It is recommended as an insulation material in electrical engineering.
| Properties | Unit | Steatite ceramic | 95% Al2O3 | 99% Al2O3 | Zirconia Ceramic |
| Density | g/cm³ | 2.8 | 3.6 | 3.8 | 5.6 |
| Flexural strength | Mpa | 145 | 300 | 300 | 354 |
| Max Working Temperature | ℃ | 1100 | 1400 | 1600 | 1400 |
| Sintering temperature | ℃ | 1350 | 1700 | 1750 | 1550 |
| Heat resistance | T(℃) | 200 | 220 | 200 | 350 |
| Hardness | Gpa | 5.7 | 7 | 10.7 | 12.3 |
| Elastic modulus | Gpa | 120 | 275 | 320 | 205 |
| Poissons ratio | - | 0.21 | 0.22 | 0.22 | 0.30 |
| Linear expansion coefficient | x 10-6/℃ | 7.9 | 7.1 | 7.8 | 9 |
| Insulation breakdown Intensity | KT/mm | 10 | 16 | 18 | 15 |
| Thermal conductivity | w/(m.k) | 2.5 | 20 | 25 | 2.5 |
| Specific Heat | *10-3J/(kg*K) | 0.75 | 0.78 | 0.78 | 0.4 |
