Product Details
Place of Origin: China
Brand Name: MH
Certification: ROHS ISO9001
Model Number: MH-65215
Payment & Shipping Terms
Minimum Order Quantity: 1000
Price: 0.2-1usd
Packaging Details: Use export carton on the pallet
Delivery Time: 8-10
Supply Ability: 10000 pcs /day
Material: |
Steatite Ceramic |
Color: |
White Yellow |
Size: |
Size Customized |
Usage: |
Industrial Ceramic |
Working Temperature: |
1300 ℃ |
Sample: |
Free Sample |
MOQ: |
1000 |
Density: |
2.8 G/cm3 |
Origin: |
China |
OEM,ODM: |
Accept |
Material: |
Steatite Ceramic |
Color: |
White Yellow |
Size: |
Size Customized |
Usage: |
Industrial Ceramic |
Working Temperature: |
1300 ℃ |
Sample: |
Free Sample |
MOQ: |
1000 |
Density: |
2.8 G/cm3 |
Origin: |
China |
OEM,ODM: |
Accept |

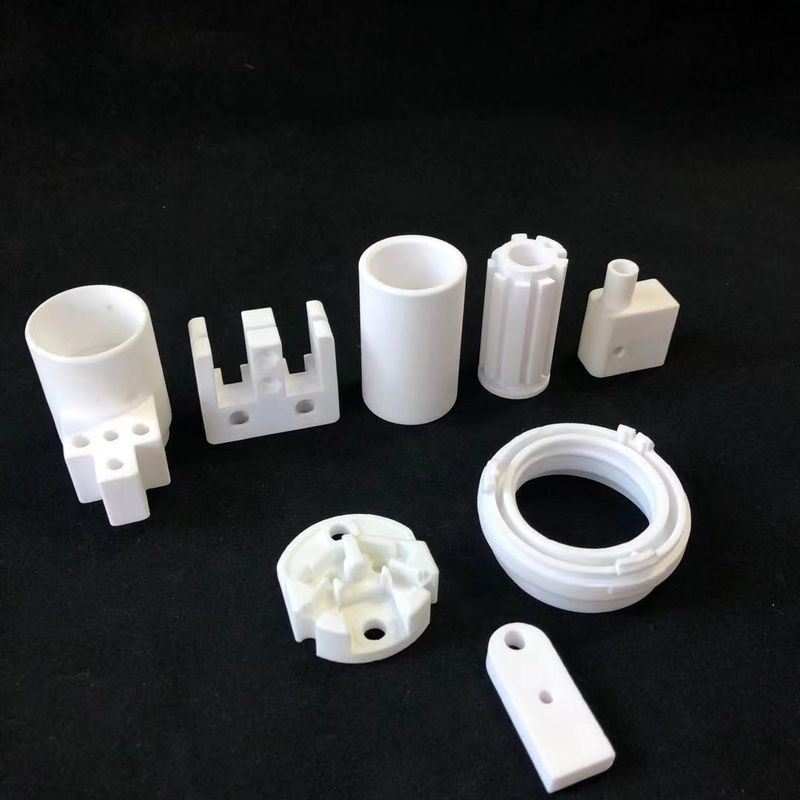

High quality ceramic structural parts steatite ceramic insulated parts
Steatite Ceramic
Steatite is a crystalline form of magnesium silicate. It is a low loss, low cost, relatively good strength insulating material which can function safely at temperatures up to 2,000°F. Applications include high frequency insulation, resistor cores and casings, and appliance insulators.
Features
1) A variety of specifications available.
2) Satisfy various technical request
3) Lower medium spoilage
4) Good insulation performance and high temperature resistance
5) Stiffness texture
6) Used in all electric products,
| Properties | Unit | Steatite ceramic | 95% Al2O3 | 99% Al2O3 | Zirconia Ceramic |
| Density | g/cm³ | 2.8 | 3.6 | 3.8 | 5.6 |
| Flexural strength | Mpa | 145 | 300 | 300 | 354 |
| Max Working Temperature | ℃ | 1100 | 1400 | 1600 | 1400 |
| Sintering temperature | ℃ | 1350 | 1700 | 1750 | 1550 |
| Heat resistance | T(℃) | 200 | 220 | 200 | 350 |
| Hardness | Gpa | 5.7 | 7 | 10.7 | 12.3 |
| Elastic modulus | Gpa | 120 | 275 | 320 | 205 |
| Poissons ratio | - | 0.21 | 0.22 | 0.22 | 0.30 |
| Linear expansion coefficient | x 10-6/℃ | 7.9 | 7.1 | 7.8 | 9 |
| Insulation breakdown Intensity | KT/mm | 10 | 16 | 18 | 15 |
| Thermal conductivity | w/(m.k) | 2.5 | 20 | 25 | 2.5 |
| Specific Heat | *10-3J/(kg*K) | 0.75 | 0.78 | 0.78 | 0.4 |
