Product Details
Place of Origin: CHINA
Brand Name: MH
Model Number: MH3651
Payment & Shipping Terms
Minimum Order Quantity: 1000 PCS
Price: USD 0.1-0.9PCS
Packaging Details: CARTON/WOODEN BOX
Delivery Time: 15-20DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 PCS WEEK
Certification: |
RoHS ISO9001 |
Material: |
Steatite Ceramic |
Color: |
White |
Density: |
2.8 G/cm³ |
Size: |
Customers' Requests |
MOQ: |
1000 |
Certification: |
RoHS ISO9001 |
Material: |
Steatite Ceramic |
Color: |
White |
Density: |
2.8 G/cm³ |
Size: |
Customers' Requests |
MOQ: |
1000 |

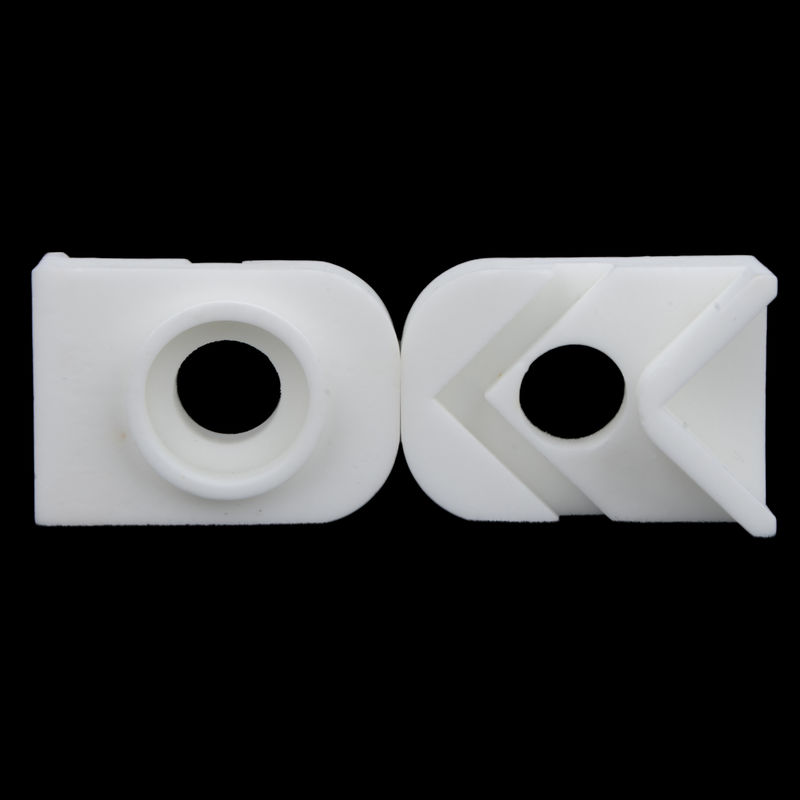

Industrial steatite ceramic part heat resistant seatite ceramic insulator
Steatite is used to support heating elements in electric heaters, toasters, and ovens.
Steatite is a good high voltage insulator. It holds up under thousands of volts without breaking down.
Steatite ceramic parts are usually small and are formed from dry powder in a compaction press. The parts are then fired in the kiln. Diamond abrasives are used to grind parts to size for high tolerance applications.
| Properties | Unit | Steatite ceramic | 95% Al2O3 | 99% Al2O3 | Zirconia Ceramic |
| Density | g/cm³ | 2.8 | 3.6 | 3.8 | 5.6 |
| Flexural strength | Mpa | 145 | 300 | 300 | 354 |
| Max Working Temperature | ℃ | 1100 | 1400 | 1600 | 1400 |
| Sintering temperature | ℃ | 1350 | 1700 | 1750 | 1550 |
| Heat resistance | T(℃) | 200 | 220 | 200 | 350 |
| Hardness | Gpa | 5.7 | 7 | 10.7 | 12.3 |
| Elastic modulus | Gpa | 120 | 275 | 320 | 205 |
| Poissons ratio | - | 0.21 | 0.22 | 0.22 | 0.30 |
| Linear expansion coefficient | x 10-6/℃ | 7.9 | 7.1 | 7.8 | 9 |
| Insulation breakdown Intensity | KT/mm | 10 | 16 | 18 | 15 |
| Thermal conductivity | w/(m.k) | 2.5 | 20 | 25 | 2.5 |
| Specific Heat | *10-3J/(kg*K) | 0.75 | 0.78 | 0.78 | 0.4 |
