60w 80w Steatite Properties Ceramic Shell Steatite 1300 ℃ Structural Parts
| Place of Origin | China |
|---|---|
| Brand Name | MH |
| Certification | ROHS ISO9001 |
| Model Number | MH-65215 |
| Minimum Order Quantity | 1000 |
| Price | 0.5-1usd /pcs |
| Packaging Details | export carton |
| Delivery Time | 8-10 |
| Payment Terms | D/A, D/P, T/T, D/A |
| Supply Ability | 3000 pcs /day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Steatite Ceramic | Color | White Yellow |
|---|---|---|---|
| Size | Size Customized | Usage | Industrial Ceramic |
| Working Temperature | 1300 ℃ | Sample | Free Sample |
| MOQ | 1000 | Density | 2.8 G/cm3 |
| Origin | China | OEM,ODM | Accept |
| High Light | 60w steatite properties,80w steatite properties,ceramic shell steatite 1300 ℃ |
||
Product Description

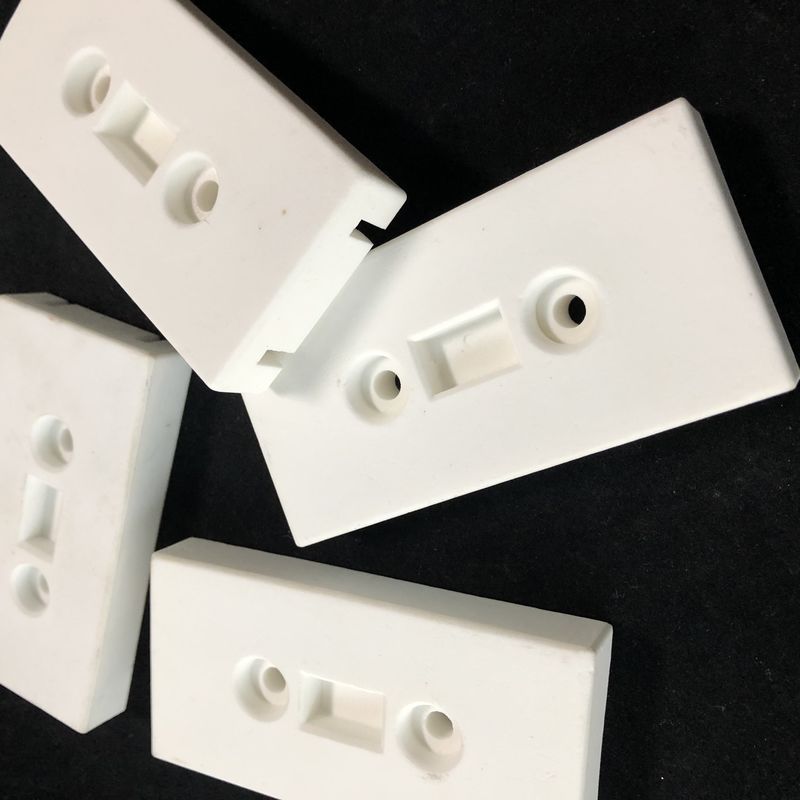

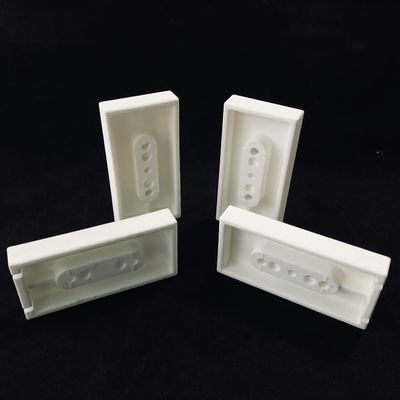

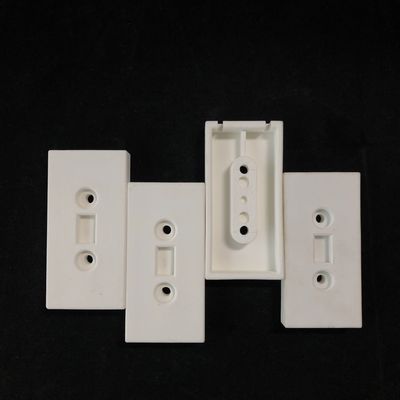

60W 80W steatite ceramic shell high quality ceramic structural parts
Steatite Ceramic
Steatite is an inorganic material based on natural raw materials consisting predominantly of magnesium silicate. It is marked by a high heat resistance, resistance to leakage current and dielectric strength. It is recommended as an insulation material in electrical engineering.
Main Applications:
1). Shaft, Plunger
2). High-pressure cleaning machines
3). Sealing structure
4). Auto mobile industry
5). Oil drilling equipment
6). Insulation parts in electrical equipment
7). Ceramic knife
8). Ceramic hair clipper spare parts
| Properties | Unit | Steatite ceramic | 95% Al2O3 | 99% Al2O3 | Zirconia Ceramic |
| Density | g/cm³ | 2.8 | 3.6 | 3.8 | 5.6 |
| Flexural strength | Mpa | 145 | 300 | 300 | 354 |
| Max Working Temperature | ℃ | 1100 | 1400 | 1600 | 1400 |
| Sintering temperature | ℃ | 1350 | 1700 | 1750 | 1550 |
| Heat resistance | T(℃) | 200 | 220 | 200 | 350 |
| Hardness | Gpa | 5.7 | 7 | 10.7 | 12.3 |
| Elastic modulus | Gpa | 120 | 275 | 320 | 205 |
| Poissons ratio | - | 0.21 | 0.22 | 0.22 | 0.30 |
| Linear expansion coefficient | x 10-6/℃ | 7.9 | 7.1 | 7.8 | 9 |
| Insulation breakdown Intensity | KT/mm | 10 | 16 | 18 | 15 |
| Thermal conductivity | w/(m.k) | 2.5 | 20 | 25 | 2.5 |
| Specific Heat | *10-3J/(kg*K) | 0.75 | 0.78 | 0.78 | 0.4 |
