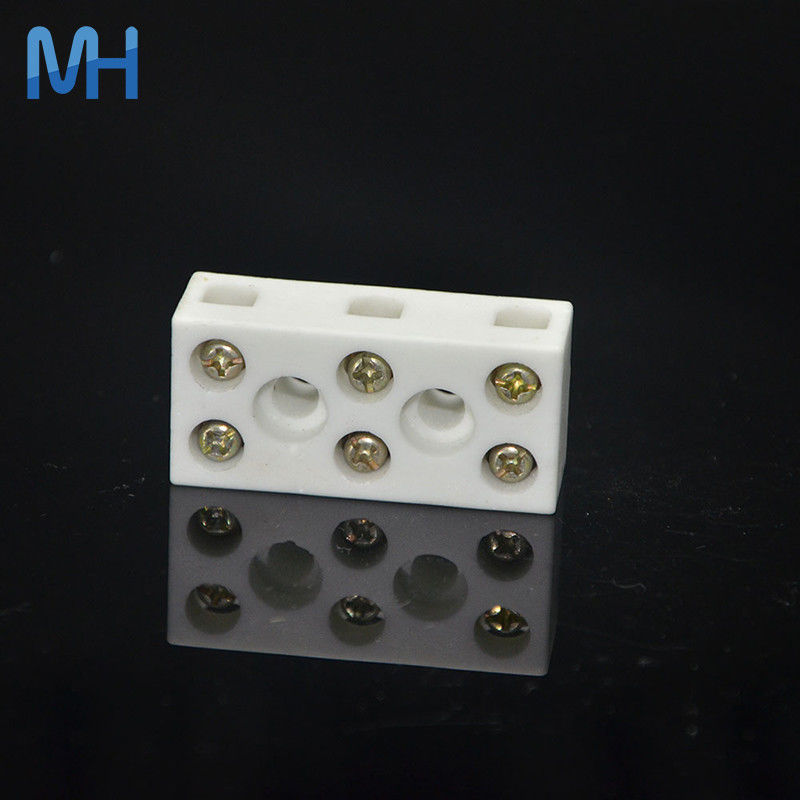

Structural Steatite Ceramic 800C Wire Terminal Block Custom Ceramic Parts
| Place of Origin | China |
|---|---|
| Brand Name | MH |
| Certification | ROHS ISO9001 |
| Model Number | MH-8152 |
| Minimum Order Quantity | 2000PCS |
| Price | 0.2-1USD/PCS |
| Packaging Details | export carton |
| Delivery Time | 10-15days |
| Payment Terms | D/A, D/P, T/T, D/A |
| Supply Ability | 5000 PCS /Per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Steatite Ceramic | Color | White |
|---|---|---|---|
| Size | Size Customized | Usage | Industrial Ceramic |
| Working Temperature | 800 ℃ | Sample | Free Sample |
| MOQ | 2000 | Density | 2.8 G/cm3 |
| Origin | China | OEM,ODM | Accept |
| High Light | Steatite Ceramic 800C,structural Steatite Ceramic,wire terminal block custom ceramic parts |
||
Product Description
Steatite material ceramic wire terminal block ceramic structural parts
Steatite Ceramic
Features:
1) Good insulation, good safety, and long service life
2) Keep it from deforming and have sufficient strength; Corrosion resistance
3) Good heat dissipation, small size, more environmentally friendly and energy-saving
4) Good thermal shock resistance5) High hardness; Excellent wear resistanceUsage:
Electrical industry, Electric heating industry, Electronics Industry, Auto industry, Petroleum industry, Textile industry, Lighting industry, Metallurgical industry.
| Properties | Unit | Steatite ceramic | 95% Al2O3 | 99% Al2O3 | Zirconia Ceramic |
| Density | g/cm³ | 2.8 | 3.6 | 3.8 | 5.6 |
| Flexural strength | Mpa | 145 | 300 | 300 | 354 |
| Max Working Temperature | ℃ | 1100 | 1400 | 1600 | 1400 |
| Sintering temperature | ℃ | 1350 | 1700 | 1750 | 1550 |
| Heat resistance | T(℃) | 200 | 220 | 200 | 350 |
| Hardness | Gpa | 5.7 | 7 | 10.7 | 12.3 |
| Elastic modulus | Gpa | 120 | 275 | 320 | 205 |
| Poissons ratio | - | 0.21 | 0.22 | 0.22 | 0.30 |
| Linear expansion coefficient | x 10-6/℃ | 7.9 | 7.1 | 7.8 | 9 |
| Insulation breakdown Intensity | KT/mm | 10 | 16 | 18 | 15 |
| Thermal conductivity | w/(m.k) | 2.5 | 20 | 25 | 2.5 |
| Specific Heat | *10-3J/(kg*K) | 0.75 | 0.78 | 0.78 | 0.4 |
