Product Details
Place of Origin: China
Brand Name: MH
Certification: ROHS ISO9001
Model Number: MH-929
Payment & Shipping Terms
Minimum Order Quantity: 2000PCS
Price: 0.2-3USD/PCS
Packaging Details: export carton
Delivery Time: 10-15days
Payment Terms: D/A, D/P, T/T, D/A
Supply Ability: 5000 PCS /Per week
Material: |
Steatite Ceramic |
Color: |
White |
Size: |
Size Customized |
Usage: |
Industrial Ceramic |
Working Temperature: |
800 ℃ |
Sample: |
Free Sample |
MOQ: |
2000 |
Density: |
2.8 G/cm3 |
Origin: |
China |
OEM,ODM: |
Accept |
Material: |
Steatite Ceramic |
Color: |
White |
Size: |
Size Customized |
Usage: |
Industrial Ceramic |
Working Temperature: |
800 ℃ |
Sample: |
Free Sample |
MOQ: |
2000 |
Density: |
2.8 G/cm3 |
Origin: |
China |
OEM,ODM: |
Accept |

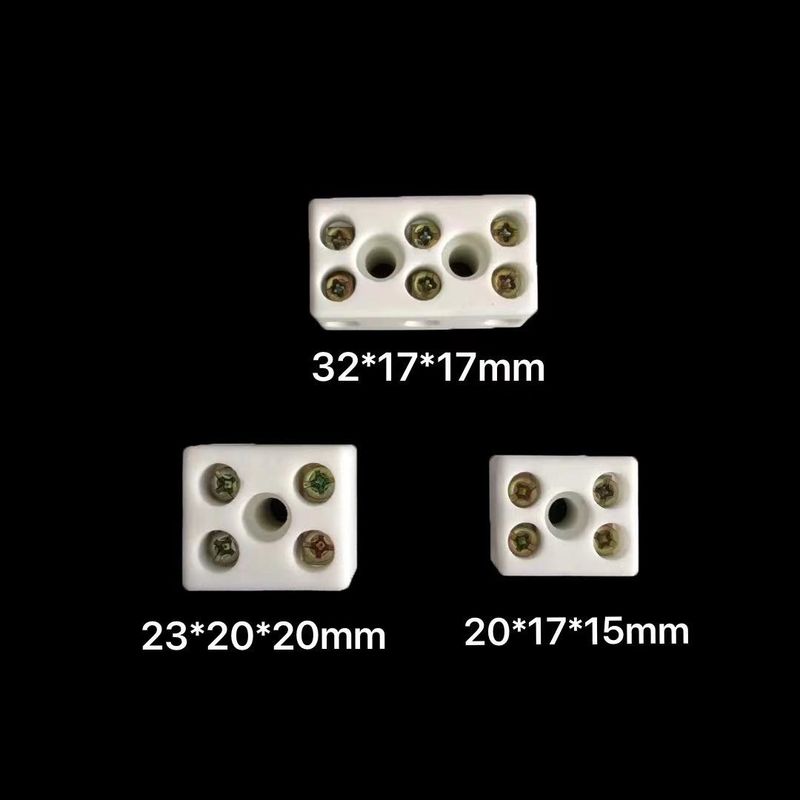

brass screw terminal block steatite ceramic connector
Steatite Ceramic
Steatite is an inorganic material based on natural raw materials consisting predominantly of magnesium silicate. It is marked by a high heat resistance, resistance to leakage current and dielectric strength. It is recommended as an insulation material in electrical engineering.
The manufactured products are widely used in medical devices, electrical insulation applications and other wear protection, sealing and heat sink applications.
| Properties | Unit | Steatite ceramic | 95% Al2O3 | 99% Al2O3 | Zirconia Ceramic |
| Density | g/cm³ | 2.8 | 3.6 | 3.8 | 5.6 |
| Flexural strength | Mpa | 145 | 300 | 300 | 354 |
| Max Working Temperature | ℃ | 1100 | 1400 | 1600 | 1400 |
| Sintering temperature | ℃ | 1350 | 1700 | 1750 | 1550 |
| Heat resistance | T(℃) | 200 | 220 | 200 | 350 |
| Hardness | Gpa | 5.7 | 7 | 10.7 | 12.3 |
| Elastic modulus | Gpa | 120 | 275 | 320 | 205 |
| Poissons ratio | - | 0.21 | 0.22 | 0.22 | 0.30 |
| Linear expansion coefficient | x 10-6/℃ | 7.9 | 7.1 | 7.8 | 9 |
| Insulation breakdown Intensity | KT/mm | 10 | 16 | 18 | 15 |
| Thermal conductivity | w/(m.k) | 2.5 | 20 | 25 | 2.5 |
| Specific Heat | *10-3J/(kg*K) | 0.75 | 0.78 | 0.78 | 0.4 |
