2 Pin 3 Pin Electric Ceramic Terminal Screw Block Connector
| Place of Origin | China |
|---|---|
| Brand Name | MH |
| Certification | ROHS ISO9001 |
| Model Number | MH-916 |
| Minimum Order Quantity | 2000PCS |
| Price | 0.2-3USD/PCS |
| Packaging Details | export carton |
| Delivery Time | 10-15days |
| Payment Terms | D/A, D/P, T/T, D/A |
| Supply Ability | 5000 PCS /Per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Steatite Ceramic | Color | White |
|---|---|---|---|
| Size | Size Customized | Usage | Industrial Ceramic |
| Working Temperature | 800 ℃ | Sample | Free Sample |
| MOQ | 2000 | Density | 2.8 G/cm3 |
| Origin | China | OEM,ODM | Accept |
| High Light | 2 pin Steatite Ceramic,3 pin Steatite Ceramic,3 pin terminal screw block connector |
||
Product Description

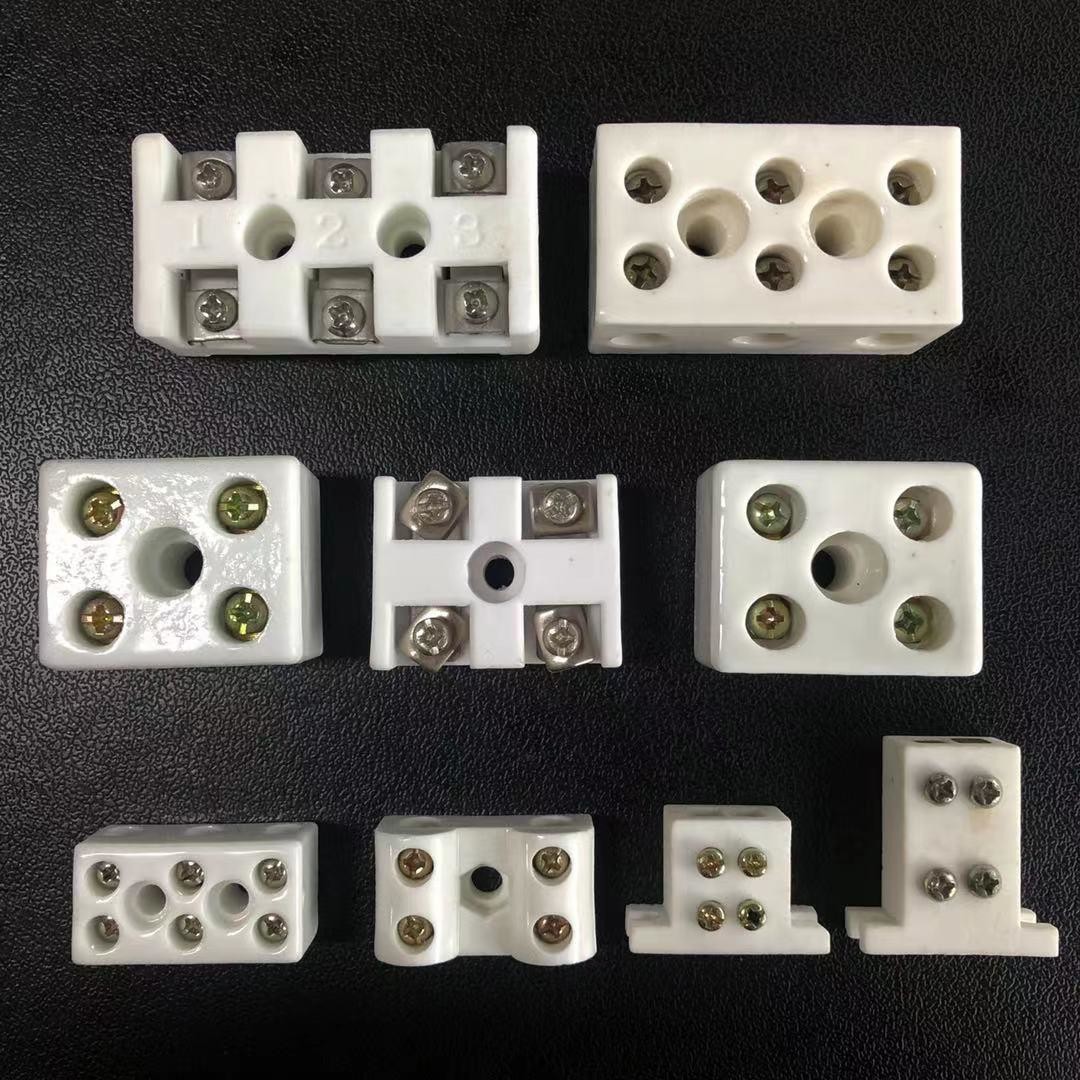

2 pin 3 pin electric ceramic terminal screw block connector
Steatite Ceramic
Steatite is an inorganic material based on natural raw materials consisting predominantly of magnesium silicate. It is marked by a high heat resistance, resistance to leakage current and dielectric strength. It is recommended as an insulation material in electrical engineering.
Structural ceramics have the characteristics of wear resistance,superior strength, hardness, insulation, heat conduction, high temperature resistance, corrosion resistance, high temperature refractory, etc.
| Properties | Unit | Steatite ceramic | 95% Al2O3 | 99% Al2O3 | Zirconia Ceramic |
| Density | g/cm³ | 2.8 | 3.6 | 3.8 | 5.6 |
| Flexural strength | Mpa | 145 | 300 | 300 | 354 |
| Max Working Temperature | ℃ | 1100 | 1400 | 1600 | 1400 |
| Sintering temperature | ℃ | 1350 | 1700 | 1750 | 1550 |
| Heat resistance | T(℃) | 200 | 220 | 200 | 350 |
| Hardness | Gpa | 5.7 | 7 | 10.7 | 12.3 |
| Elastic modulus | Gpa | 120 | 275 | 320 | 205 |
| Poissons ratio | - | 0.21 | 0.22 | 0.22 | 0.30 |
| Linear expansion coefficient | x 10-6/℃ | 7.9 | 7.1 | 7.8 | 9 |
| Insulation breakdown Intensity | KT/mm | 10 | 16 | 18 | 15 |
| Thermal conductivity | w/(m.k) | 2.5 | 20 | 25 | 2.5 |
| Specific Heat | *10-3J/(kg*K) | 0.75 | 0.78 | 0.78 | 0.4 |
