95 Percent Alumina Ceramic Components High Temperature Resistance Alumina Custom Parts
| Place of Origin | CHINA |
|---|---|
| Brand Name | MH |
| Certification | ISO9001 ROHS |
| Model Number | MH01 |
| Minimum Order Quantity | 1000 pcs |
| Price | USD 0.1-1 PCS |
| Packaging Details | Export carton |
| Delivery Time | 15-20DAYS |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 5000 PCS WEEK |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | 95% Alumina Ceramic | Color | White Or Pink |
|---|---|---|---|
| Density | 3.6g/cm³ | Hardness | 10.7 Gpa |
| Insulation Breakdown Intensity | 16 KT/mm | Thermal Conductivity | 20 W/(m.k) |
| Flexural Strength | 300 Mpa | Working Temperature | 1300℃ |
| OEM,ODM | Acceptable | Origin | China |
| High Light | 95 percent alumina ceramic components,1300 deg alumina ceramic components,alumina custom parts OEM |
||
Product Description

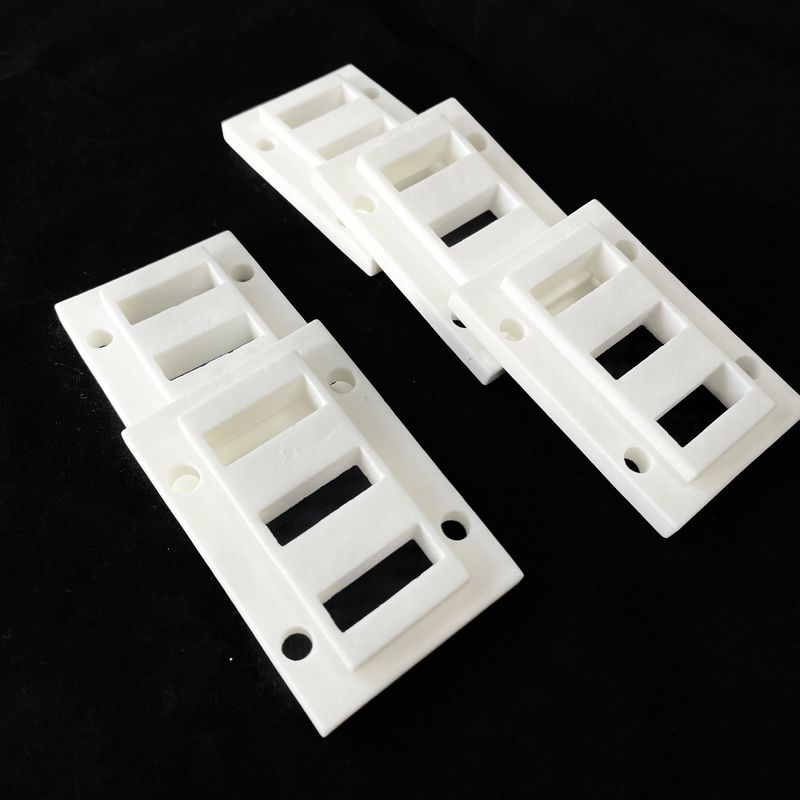

95% alumina ceramic insulating part high temperature resistance alumina ceramic
Alumina ceramic parts
Alumina ceramic parts are made of aluminum oxide ceramics. Alumina is a ceramic material with high thermal conductivity, compressive strength, and thermal shock resistance. It also has a low thermal expansion, making it a suitable material for furnace use in the crucible, tube, and thermo couple sheath form. Aluminum oxide is high hardness and good wear resistance, making it a suitable material for ball valves, piston pumps, and deep drawing tools. In addition, alumina ceramic parts can be easily combined with metals and other ceramic materials using brazing techniques and metallization.
Structural ceramics have the characteristics of wear resistance,superior strength, hardness, insulation, heat conduction, high temperature resistance, corrosion resistance, high temperature refractory, etc.The manufactured products are widely used in medical devices, electrical insulation applications and other wear protection, sealing and heat sink applications.
| Properties | Unit | Steatite ceramic | 95% Al2O3 | 99% Al2O3 | Zirconia Ceramic |
| Density | g/cm³ | 2.8 | 3.6 | 3.8 | 5.6 |
| Flexural strength | Mpa | 145 | 300 | 300 | 354 |
| Max Working Temperature | ℃ | 1100 | 1400 | 1600 | 1400 |
| Sintering temperature | ℃ | 1350 | 1700 | 1750 | 1550 |
| Heat resistance | T(℃) | 200 | 220 | 200 | 350 |
| Hardness | Gpa | 5.7 | 7 | 10.7 | 12.3 |
| Elastic modulus | Gpa | 120 | 275 | 320 | 205 |
| Poissons ratio | - | 0.21 | 0.22 | 0.22 | 0.30 |
| Linear expansion coefficient | x 10-6/℃ | 7.9 | 7.1 | 7.8 | 9 |
| Insulation breakdown Intensity | KT/mm | 10 | 16 | 18 | 15 |
| Thermal conductivity | w/(m.k) | 2.5 | 20 | 25 | 2.5 |
| Specific Heat | *10-3J/(kg*K) | 0.75 | 0.78 | 0.78 | 0.4 |
