3.6g/Cm3 95 Ceramic Parts Ring High Insulation Heat Resistant Alumina Ceramic Ring

Place of Origin CHINA
Brand Name MH
Certification ISO9001 ROHS
Model Number MH01
Minimum Order Quantity 100 pcs
Price USD 0.1-0.5/PCS
Packaging Details Export carton
Delivery Time 15-20DAYS
Payment Terms L/C, T/T, Western Union
Supply Ability 5000 PCS WEEK

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material 95% Alumina Ceramic Color White
Density 3.6g/cm³ Working Temperature 1500℃
OEM,ODM Acceptable Origin China
MOQ 100 Pcs Package Carton
High Light

3.6g/cm3 95 ceramic parts

,

95 ceramic parts Ring

,

Heat Resistant alumina ceramic ring

Leave a Message
Product Description

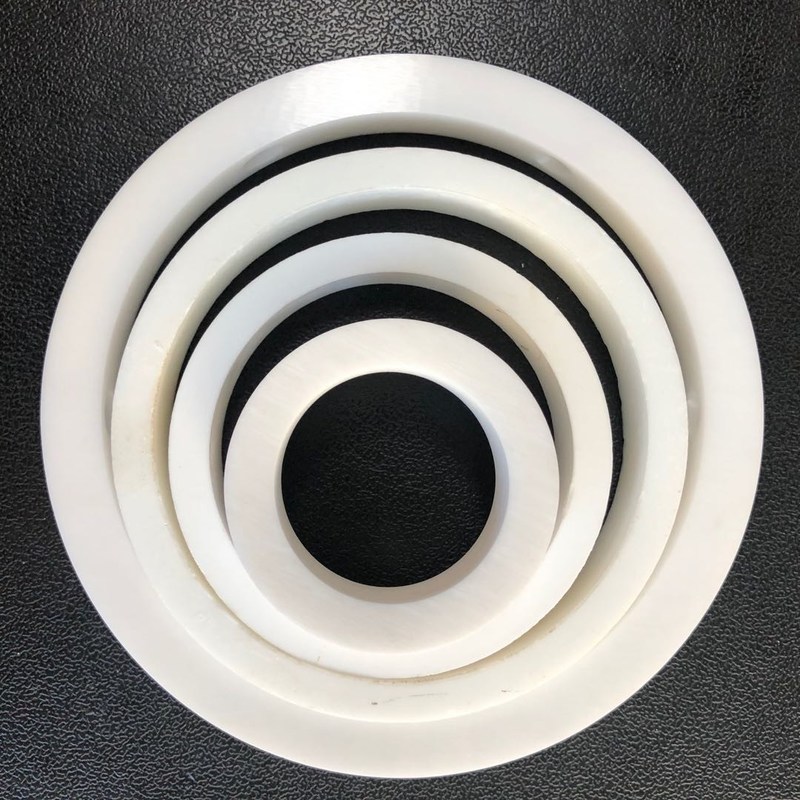

95% Alumina Ceramic Ring High Insulation Heat Resistant Ceramic Ring



MINGHAO manufactures and provides alumina ceramic components for a wide range of application like Mechanical Equipment, Electronic & Electrical, Oil Drilling, Medical, Chemical Industry etc. According to actual application and customer's requirement, the purities vary from 95%-99.7% and the forming methods will be different. The forming methods applied in our plant include dry pressing, isostatic pressing, injection moulding, extrusion moulding. With experienced engineers and talented workers, we are confident to offer high quality, high precision, complex components for customers worldwide.







Properties Unit Steatite ceramic 95% Al2O3 99% Al2O3 Zirconia Ceramic
Density g/cm³ 2.8 3.6 3.8 5.6
Flexural strength Mpa 145 300 300 354
Max Working Temperature 1100 1400 1600 1400
Sintering temperature 1350 1700 1750 1550
Heat resistance T(℃) 200 220 200 350
Hardness Gpa 5.7 7 10.7 12.3
Elastic modulus Gpa 120 275 320 205
Poissons ratio - 0.21 0.22 0.22 0.30
Linear expansion coefficient x 10-6/℃ 7.9 7.1 7.8 9
Insulation breakdown Intensity KT/mm 10 16 18 15
Thermal conductivity w/(m.k) 2.5 20 25 2.5
Specific Heat *10-3J/(kg*K) 0.75 0.78 0.78 0.4
