1400 Deg Customization 95 Alumina Ceramic Tube For Temperature Sensor
| Place of Origin | CHINA |
|---|---|
| Brand Name | MH |
| Certification | ISO9001 ROHS |
| Model Number | MH01 |
| Minimum Order Quantity | 1000 pcs |
| Price | USD 0.8-5 PCS |
| Packaging Details | Export carton |
| Delivery Time | 15-20DAYS |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 5000 PCS WEEK |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | 95% Alumina Ceramic | Color | White Or Pink |
|---|---|---|---|
| Density | 3.6g/cm³ | Hardness | 10.7 Gpa |
| Insulation Breakdown Intensity | 16 KT/mm | Thermal Conductivity | 20 W/(m.k) |
| Flexural Strength | 300 Mpa | Working Temperature | 1300℃ |
| OEM,ODM | Acceptable | Origin | China |
| High Light | 1400 deg 95 Alumina Ceramic,customization 95 Alumina Ceramic,alumina ceramic tube for temperature sensor |
||
Product Description
Professional customization 95% alumina ceramic tube

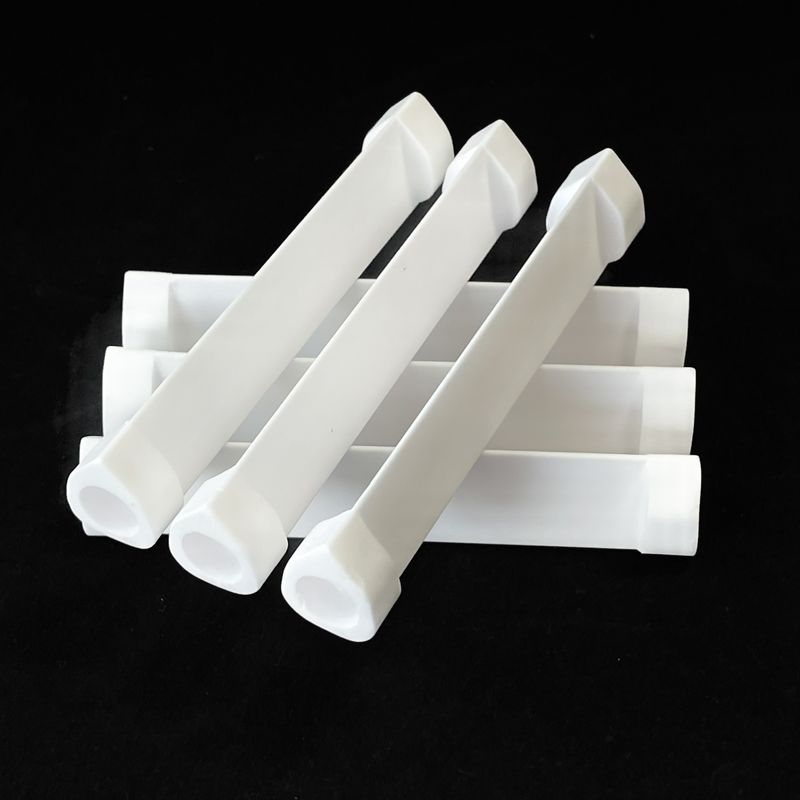

Alumina ceramic tube
Mainly used for the protection of the temperature sensor, make the temperature sensor and outside isolation, decrease or prevent components in use process by foreign materials, eroded oxidation and touch the worse.
| Properties | Unit | Steatite ceramic | 95% Al2O3 | 99% Al2O3 | Zirconia Ceramic |
| Density | g/cm³ | 2.8 | 3.6 | 3.8 | 5.6 |
| Flexural strength | Mpa | 145 | 300 | 300 | 354 |
| Max Working Temperature | ℃ | 1100 | 1400 | 1600 | 1400 |
| Sintering temperature | ℃ | 1350 | 1700 | 1750 | 1550 |
| Heat resistance | T(℃) | 200 | 220 | 200 | 350 |
| Hardness | Gpa | 5.7 | 7 | 10.7 | 12.3 |
| Elastic modulus | Gpa | 120 | 275 | 320 | 205 |
| Poissons ratio | - | 0.21 | 0.22 | 0.22 | 0.30 |
| Linear expansion coefficient | x 10-6/℃ | 7.9 | 7.1 | 7.8 | 9 |
| Insulation breakdown Intensity | KT/mm | 10 | 16 | 18 | 15 |
| Thermal conductivity | w/(m.k) | 2.5 | 20 | 25 | 2.5 |
| Specific Heat | *10-3J/(kg*K) | 0.75 | 0.78 | 0.78 | 0.4 |
