Product Details
Place of Origin: CHINA
Brand Name: MH
Certification: ISO9001 ROHS
Model Number: MH091
Payment & Shipping Terms
Minimum Order Quantity: 1000pcs
Price: USD 0.3-1/PCS
Packaging Details: Export carton
Delivery Time: 15DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 PCS WEEK
Material: |
95% Alumina Ceramic |
Color: |
White |
Density: |
3.6g/cm³ |
Working Temperature: |
1500℃ |
OEM,ODM: |
Acceptable |
Origin: |
China |
MOQ: |
1000 Pcs |
Package: |
Carton |
Material: |
95% Alumina Ceramic |
Color: |
White |
Density: |
3.6g/cm³ |
Working Temperature: |
1500℃ |
OEM,ODM: |
Acceptable |
Origin: |
China |
MOQ: |
1000 Pcs |
Package: |
Carton |

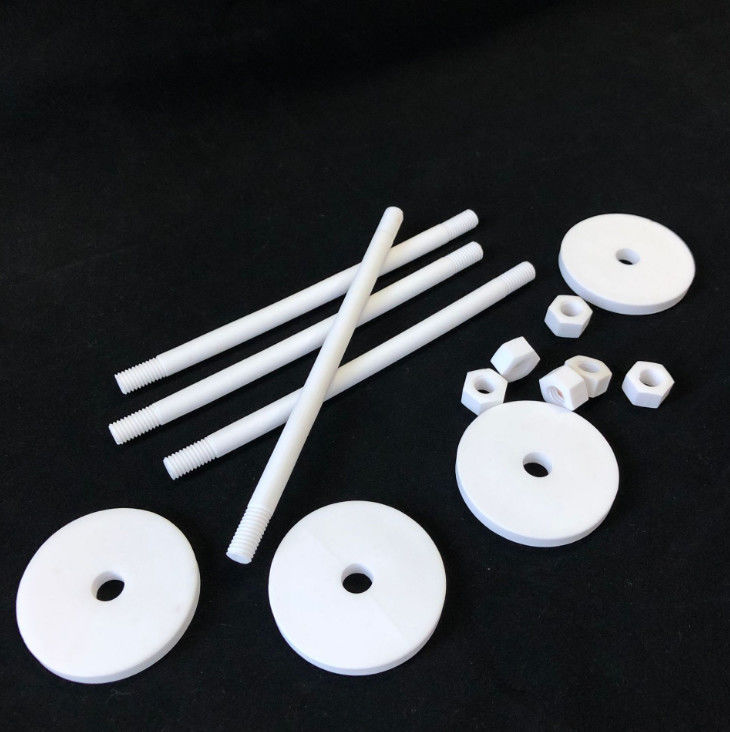

Mechanical Strength Ceramic Parts Alumina ceramic bolt rod screw
Alumina ceramic is a kind of structural ceramics, with insulation resistance, voltage resistance, high strength, good thermal conductivity, dielectric loss, stable electrical performance characteristics. Used in electronic ceramic substrates, ceramic electrical insulation, vacuum devices, devices porcelain, spark plugs and other products.
Alumina ceramic are used in shaft , plunger, sealing structure, auto mobile Industrial, oil drilling equipment, Insulation parts
in electrical equipment , ceramic knife, ceramic hair clipper spare parts, with high density, bending strength and breaking
tenacity.
| Properties | Unit | Steatite ceramic | 95% Al2O3 | 99% Al2O3 | Zirconia Ceramic |
| Density | g/cm³ | 2.8 | 3.6 | 3.8 | 5.6 |
| Flexural strength | Mpa | 145 | 300 | 300 | 354 |
| Max Working Temperature | ℃ | 1100 | 1400 | 1600 | 1400 |
| Sintering temperature | ℃ | 1350 | 1700 | 1750 | 1550 |
| Heat resistance | T(℃) | 200 | 220 | 200 | 350 |
| Hardness | Gpa | 5.7 | 7 | 10.7 | 12.3 |
| Elastic modulus | Gpa | 120 | 275 | 320 | 205 |
| Poissons ratio | - | 0.21 | 0.22 | 0.22 | 0.30 |
| Linear expansion coefficient | x 10-6/℃ | 7.9 | 7.1 | 7.8 | 9 |
| Insulation breakdown Intensity | KT/mm | 10 | 16 | 18 | 15 |
| Thermal conductivity | w/(m.k) | 2.5 | 20 | 25 | 2.5 |
| Specific Heat | *10-3J/(kg*K) | 0.75 | 0.78 | 0.78 | 0.4 |
