Product Details
Place of Origin: China
Brand Name: MH
Certification: ROHS ISO9001
Model Number: MH-916
Payment & Shipping Terms
Minimum Order Quantity: 2000PCS
Price: 0.2-3USD/PCS
Packaging Details: export carton
Delivery Time: 10-15days
Payment Terms: D/A, D/P, T/T, D/A
Supply Ability: 5000 PCS /Per week
Material: |
Steatite Ceramic |
Color: |
White |
Size: |
Size Customized |
Usage: |
Industrial Ceramic |
Working Temperature: |
800 ℃ |
Sample: |
Free Sample |
MOQ: |
2000 |
Density: |
2.8 G/cm3 |
Origin: |
China |
OEM,ODM: |
Accept |
Material: |
Steatite Ceramic |
Color: |
White |
Size: |
Size Customized |
Usage: |
Industrial Ceramic |
Working Temperature: |
800 ℃ |
Sample: |
Free Sample |
MOQ: |
2000 |
Density: |
2.8 G/cm3 |
Origin: |
China |
OEM,ODM: |
Accept |

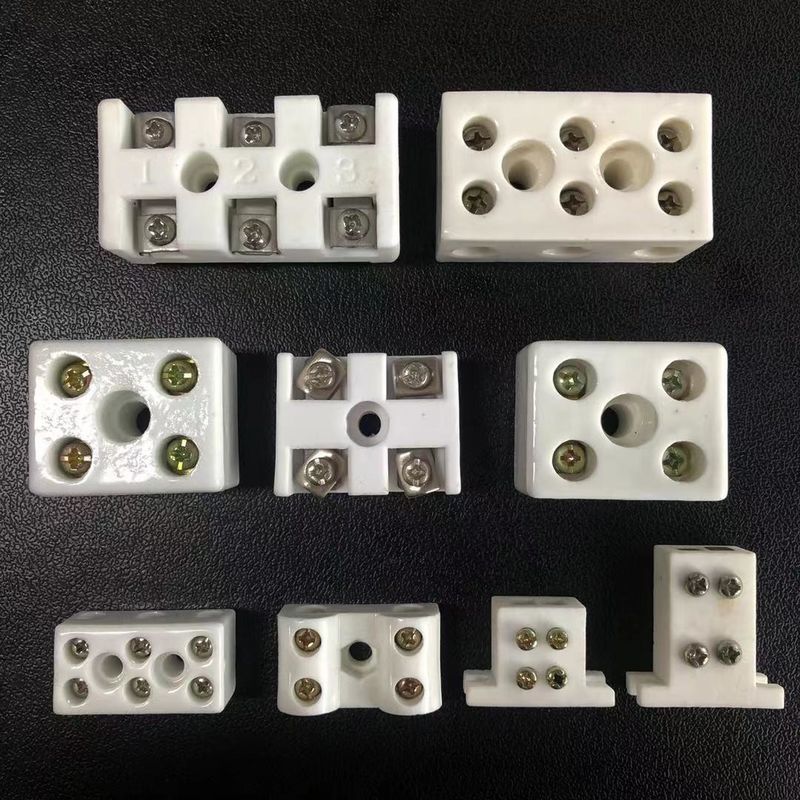

2 pin 3 pin electric ceramic terminal screw block connector
Steatite Ceramic
Steatite is an inorganic material based on natural raw materials consisting predominantly of magnesium silicate. It is marked by a high heat resistance, resistance to leakage current and dielectric strength. It is recommended as an insulation material in electrical engineering.
Structural ceramics have the characteristics of wear resistance,superior strength, hardness, insulation, heat conduction, high temperature resistance, corrosion resistance, high temperature refractory, etc.
| Properties | Unit | Steatite ceramic | 95% Al2O3 | 99% Al2O3 | Zirconia Ceramic |
| Density | g/cm³ | 2.8 | 3.6 | 3.8 | 5.6 |
| Flexural strength | Mpa | 145 | 300 | 300 | 354 |
| Max Working Temperature | ℃ | 1100 | 1400 | 1600 | 1400 |
| Sintering temperature | ℃ | 1350 | 1700 | 1750 | 1550 |
| Heat resistance | T(℃) | 200 | 220 | 200 | 350 |
| Hardness | Gpa | 5.7 | 7 | 10.7 | 12.3 |
| Elastic modulus | Gpa | 120 | 275 | 320 | 205 |
| Poissons ratio | - | 0.21 | 0.22 | 0.22 | 0.30 |
| Linear expansion coefficient | x 10-6/℃ | 7.9 | 7.1 | 7.8 | 9 |
| Insulation breakdown Intensity | KT/mm | 10 | 16 | 18 | 15 |
| Thermal conductivity | w/(m.k) | 2.5 | 20 | 25 | 2.5 |
| Specific Heat | *10-3J/(kg*K) | 0.75 | 0.78 | 0.78 | 0.4 |
