Product Details
Place of Origin: CHINA
Brand Name: MH
Certification: ISO9001 ROHS
Model Number: MH01
Payment & Shipping Terms
Minimum Order Quantity: 100 pcs
Price: USD 0.1-0.25/PCS
Packaging Details: Export carton
Delivery Time: 15-20DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 PCS WEEK
Material: |
Steatite Ceramic |
Color: |
White |
Density: |
2.8g/cm³ |
Working Temperature: |
1000℃ |
OEM,ODM: |
Acceptable |
Origin: |
China |
MOQ: |
100 Pcs |
Package: |
Carton |
Material: |
Steatite Ceramic |
Color: |
White |
Density: |
2.8g/cm³ |
Working Temperature: |
1000℃ |
OEM,ODM: |
Acceptable |
Origin: |
China |
MOQ: |
100 Pcs |
Package: |
Carton |

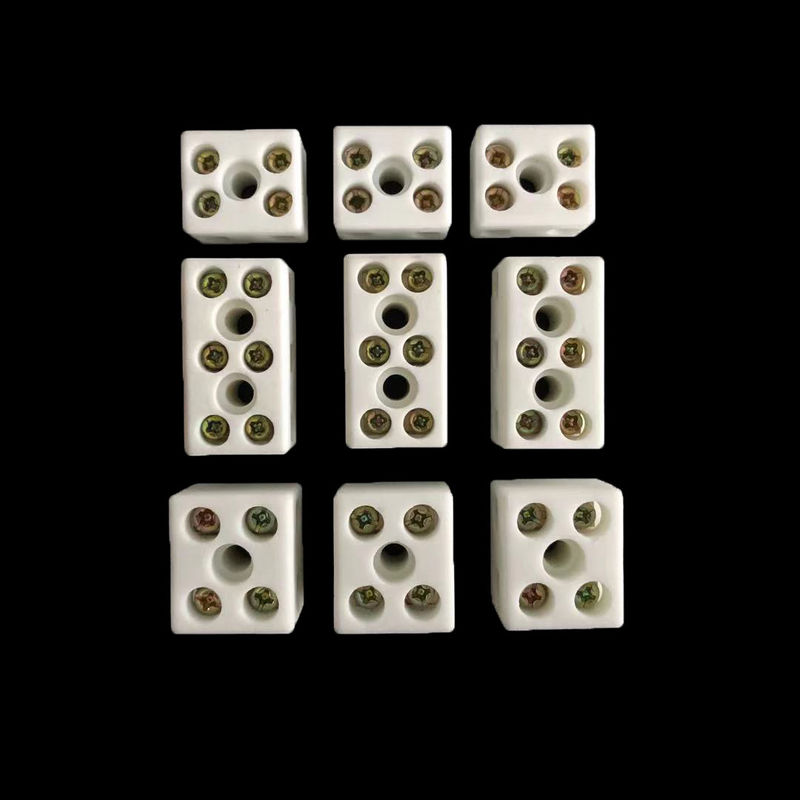

Electrical Steatite Ceramic Terminal Block Heat Resistant Ceramic Connector
Steatite Ceramic
Steatite is an inorganic material based on natural raw materials consisting predominantly of magnesium silicate. It is marked by a high heat resistance, resistance to leakage current and dielectric strength. It is recommended as an insulation material in electrical engineering.
Features & Advantages
1. Good dielectric strength
2. Heat resistance and form stability up to 1000°C
3. High mechanical strength
4. Non-combustible
5. Resistant to UV radiation
Advantages of High Quality Electric Ceramic Connector
Anti aging, fire protection and heat-resistance , good insulation property, strong mechnical property, good steady property. It can be used in different enviroment, also can meet mechnical device connection of severe working temperature etc.
Application of Industrial Electric Ceramic Connector
Electric Ceramic Connector is widely used in high temperature enviroment, kinds of connection terminal space of severe demand.
| Properties | Unit | Steatite ceramic | 95% Al2O3 | 99% Al2O3 | Zirconia Ceramic |
| Density | g/cm³ | 2.8 | 3.6 | 3.8 | 5.6 |
| Flexural strength | Mpa | 145 | 300 | 300 | 354 |
| Max Working Temperature | ℃ | 1100 | 1400 | 1600 | 1400 |
| Sintering temperature | ℃ | 1350 | 1700 | 1750 | 1550 |
| Heat resistance | T(℃) | 200 | 220 | 200 | 350 |
| Hardness | Gpa | 5.7 | 7 | 10.7 | 12.3 |
| Elastic modulus | Gpa | 120 | 275 | 320 | 205 |
| Poissons ratio | - | 0.21 | 0.22 | 0.22 | 0.30 |
| Linear expansion coefficient | x 10-6/℃ | 7.9 | 7.1 | 7.8 | 9 |
| Insulation breakdown Intensity | KT/mm | 10 | 16 | 18 | 15 |
| Thermal conductivity | w/(m.k) | 2.5 | 20 | 25 | 2.5 |
| Specific Heat | *10-3J/(kg*K) | 0.75 | 0.78 | 0.78 | 0.4 |
