1000℃ Steatite Ceramic Screw Terminal Block Connector

Product Details

Place of Origin: CHINA

Brand Name: MH

Certification: ISO9001 ROHS

Model Number: MH01

Payment & Shipping Terms

Minimum Order Quantity: 500pcs

Price: USD 0.1-0.2/PCS

Packaging Details: Export carton

Delivery Time: 15-20DAYS

Payment Terms: L/C, T/T, Western Union

Supply Ability: 5000 PCS WEEK

Get Best Price
High Light:

1000℃ Steatite Ceramic

,

hard Steatite Ceramic

,

Electric screw terminal block connector

Material:
Steatite Ceramic
Color:
White
Density:
2.8g/cm³
Working Temperature:
1000℃
OEM,ODM:
Acceptable
Origin:
China
Package:
Carton
Material:
Steatite Ceramic
Color:
White
Density:
2.8g/cm³
Working Temperature:
1000℃
OEM,ODM:
Acceptable
Origin:
China
Package:
Carton

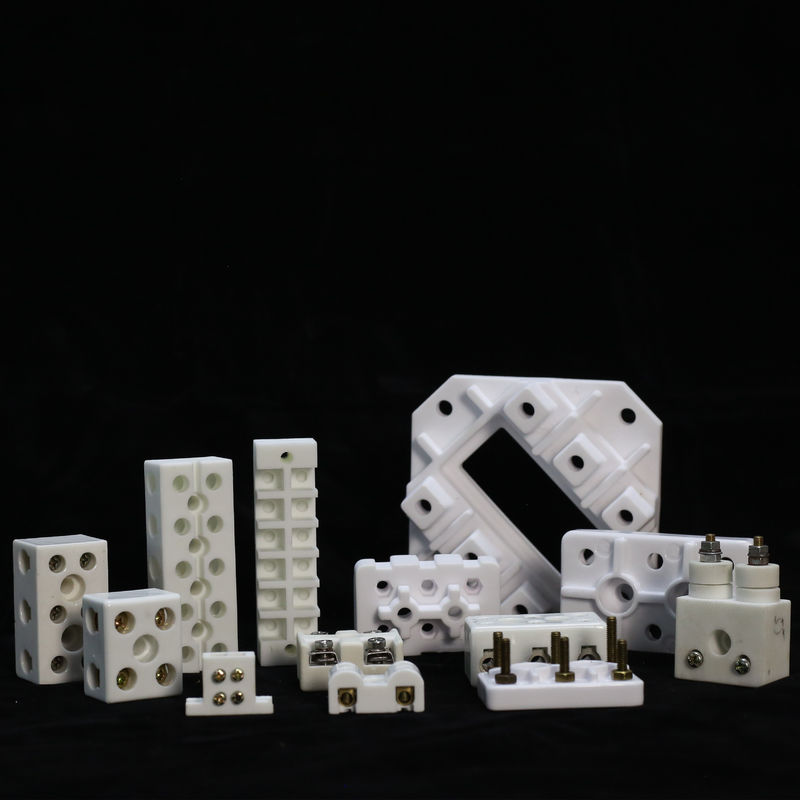

1000℃ Steatite Ceramic Screw Terminal Block Connector

Steatite Ceramic Porcelain Wire Terminal Block Connector Ceramic Connectors Heat Resistant



Application of Industrial Electric Ceramic Connector

Electric Ceramic Connector is widely used in high temperature enviroment, kinds of connection terminal space of severe demand.





Advantages of High Quality Electric Ceramic Connector

Anti aging, fire protection and heat-resistance , good insulation property, strong mechnical property, good steady property. It can be used in different enviroment, also can meet mechnical device connection of severe working temperature etc.





Properties Unit Steatite ceramic 95% Al2O3 99% Al2O3 Zirconia Ceramic
Density g/cm³ 2.8 3.6 3.8 5.6
Flexural strength Mpa 145 300 300 354
Max Working Temperature 1100 1400 1600 1400
Sintering temperature 1350 1700 1750 1550
Heat resistance T(℃) 200 220 200 350
Hardness Gpa 5.7 7 10.7 12.3
Elastic modulus Gpa 120 275 320 205
Poissons ratio - 0.21 0.22 0.22 0.30
Linear expansion coefficient x 10-6/℃ 7.9 7.1 7.8 9
Insulation breakdown Intensity KT/mm 10 16 18 15
Thermal conductivity w/(m.k) 2.5 20 25 2.5
Specific Heat *10-3J/(kg*K) 0.75 0.78 0.78 0.4
