1400C 15KT/Mm Zirconia Ceramic Zirconia Plate Hard Wearing Yttria Stabilized Zirconia Ysz

Place of Origin CHINA
Brand Name MH
Certification ISO9001 RoHS
Minimum Order Quantity 100 pcs
Price USD 0.1-6 PCS
Packaging Details CARTON/WOODEN BOX
Delivery Time 15-20DAYS
Payment Terms L/C, T/T, Western Union
Supply Ability 5000 PCS WEEK

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Zirconia Ceramic Color White Or Black
Density 5.9g/cm³ Working Temperature 1400 ℃
OEM,ODM Acceptable Sample Available
Hardness 12.3 Gpa Insulation Breakdown Intensity 15 KT/mm
High Light

1400C Zirconia Ceramic

,

15KT/mm Zirconia Ceramic zirconia plate

,

Hard Wearing yttria stabilized zirconia ysz

Leave a Message
Product Description

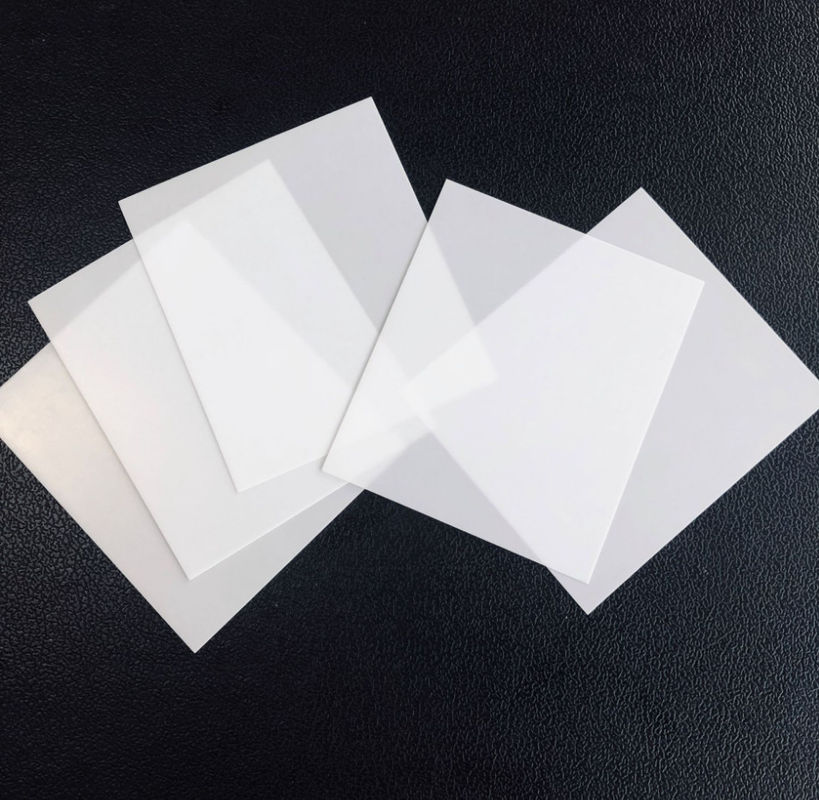

Hard wearing zirconia ceramic substrate yttria-stabilized zirconia plate



Zirconium oxide ceramics are white, yellow or gray when containing impurities, and generally contain HfO 2, which is not easily separated. Pure ZrO2 has three crystal states under normal pressure. The production of zirconia ceramics requires the preparation of high-purity, good dispersion properties, ultra-fine particles, narrow particle size distribution, zirconia ultrafine powder preparation methods, zirconia purification mainly chlorination and thermal decomposition, alkali metal Oxidative decomposition method, lime melting method, plasma arc method, precipitation method, colloid method, hydrolysis method, spray pyrolysis etc.



Features & Advantages
1. High strength
2. High hardness
3. Wear resistance
4. Non-magnetic
5. Electrical insulation
6. Corrosion resistance in acids and alkalis
7. Modulus of elasticity similar to steel
8. Coefficient of thermal expansion similar to iron





Properties Unit Steatite ceramic 95% Al2O3 99% Al2O3 Zirconia Ceramic
Density g/cm³ 2.8 3.6 3.8 5.6
Flexural strength Mpa 145 300 300 354
Max Working Temperature 1100 1400 1600 1400
Sintering temperature 1350 1700 1750 1550
Heat resistance T(℃) 200 220 200 350
Hardness Gpa 5.7 7 10.7 12.3
Elastic modulus Gpa 120 275 320 205
Poissons ratio - 0.21 0.22 0.22 0.30
Linear expansion coefficient x 10-6/℃ 7.9 7.1 7.8 9
Insulation breakdown Intensity KT/mm 10 16 18 15
Thermal conductivity w/(m.k) 2.5 20 25 2.5
Specific Heat *10-3J/(kg*K) 0.75 0.78 0.78 0.4
