Product Details
Place of Origin: China
Brand Name: MH
Certification: ROHS
Model Number: MH-88152
Payment & Shipping Terms
Minimum Order Quantity: 1000 PCS
Price: usd 18-25 KG
Packaging Details: export carton
Delivery Time: 15-20
Supply Ability: 10000 kg month
Material: |
Zirconia Ceramic |
Color: |
White |
Product Name: |

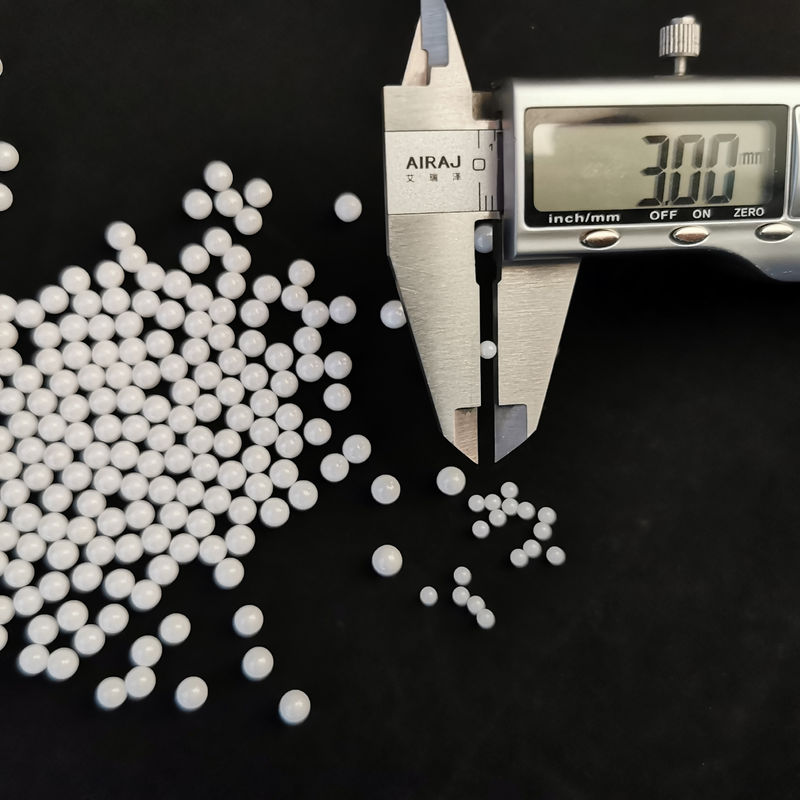

Zirconia Ceramic Ball |
Size: |
3mm, 4mm, 5mm |
Sample: |
Free Sample |
Usage: |
Grinding |
Working Temperature: |
1400 ℃ |
OEM,ODM: |
Accept |
Material: |
Zirconia Ceramic |
Color: |
White |
Product Name: |
Zirconia Ceramic Ball |
Size: |
3mm, 4mm, 5mm |
Sample: |
Free Sample |
Usage: |
Grinding |
Working Temperature: |
1400 ℃ |
OEM,ODM: |
Accept |
Zirconia ceramic zro2 tubes are widely used in Welding pins, Positioning tools, Machine components including shaft, plunger, high-pressure cleaning machines, sealing structure, auto mobile industry, oil drilling equipment, insulation parts in electrical equipment, ceramic knife, ceramic hair clipper spare parts, with high density, bending strength and breaking tenacity.
Features & Advantages
1. High strength
2. High hardness
3. Wear resistance
4. Non-magnetic
5. Electrical insulation
6. Corrosion resistance in acids and alkalis
7. Modulus of elasticity similar to steel
8. Coefficient of thermal expansion similar to iron
| Properties | Unit | Steatite ceramic | 95% Al2O3 | 99% Al2O3 | Zirconia Ceramic |
| Density | g/cm³ | 2.8 | 3.6 | 3.8 | 5.6 |
| Flexural strength | Mpa | 145 | 300 | 300 | 354 |
| Max Working Temperature | ℃ | 1100 | 1400 | 1600 | 1400 |
| Sintering temperature | ℃ | 1350 | 1700 | 1750 | 1550 |
| Heat resistance | T(℃) | 200 | 220 | 200 | 350 |
| Hardness | Gpa | 5.7 | 7 | 10.7 | 12.3 |
| Elastic modulus | Gpa | 120 | 275 | 320 | 205 |
| Poissons ratio | - | 0.21 | 0.22 | 0.22 | 0.30 |
| Linear expansion coefficient | x 10-6/℃ | 7.9 | 7.1 | 7.8 | 9 |
| Insulation breakdown Intensity | KT/mm | 10 | 16 | 18 | 15 |
| Thermal conductivity | w/(m.k) | 2.5 | 20 | 25 | 2.5 |
| Specific Heat | *10-3J/(kg*K) | 0.75 | 0.78 | 0.78 | 0.4 |
