Product Details
Place of Origin: CHINA
Brand Name: MH
Certification: ISO9001 RoHS
Model Number: MH01
Payment & Shipping Terms
Minimum Order Quantity: 100 PCS
Price: USD 0.1-2.5 PCS
Packaging Details: Export carton
Delivery Time: 15-20DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 PCS PER WEEK
Material: |
Zirconia Ceramic |
Color: |
White |
Density: |
5.9 G/cm³ |
Certifications: |
ROHS ISO9001 |
Size: |
Customized |
OEM,ODM: |
Acceptable |
Origin: |
China |
Forming: |
Casting |
Working Temperature: |
1400°C |
MOQ: |
100 PCS |
Material: |
Zirconia Ceramic |
Color: |
White |
Density: |
5.9 G/cm³ |
Certifications: |
ROHS ISO9001 |
Size: |
Customized |
OEM,ODM: |
Acceptable |
Origin: |
China |
Forming: |
Casting |
Working Temperature: |
1400°C |
MOQ: |
100 PCS |

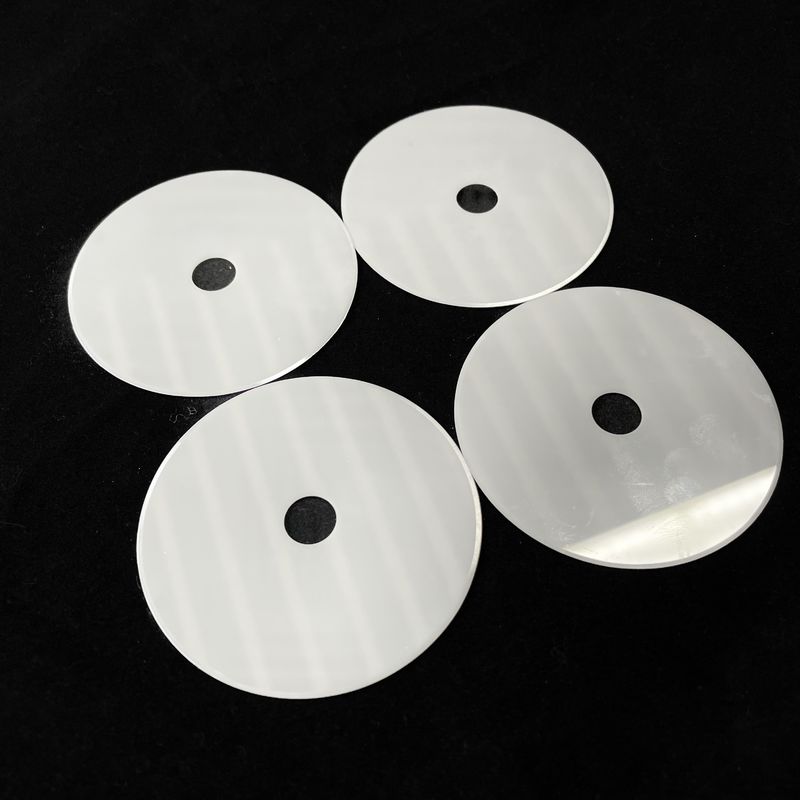

Round shape zirconia ceramic blade long service life ceamic razor blade
Zirconia Ceramic
In terms of structural ceramics, zirconia ceramics are widely used in the field of structural ceramics because of their high toughness, high flexural strength and high wear resistance, excellent thermal insulation properties, and thermal expansion coefficient close to that of steel. Mainly: Y-TZP grinding ball, dispersion and grinding media, nozzle, ball valve ball seat, zirconia mold, micro fan shaft, fiber pin, fiber sleeve, wire drawing die and cutting tool, wear-resistant tool, clothing button, Cases and straps, bracelets and pendants, ball bearings, golf ball hitters and other room temperature wear-resistant components.
Features & Advantages
1. High strength
2. High hardness
3. Wear resistance
4. Non-magnetic
5. Electrical insulation
6. Corrosion resistance in acids and alkalis
7. Modulus of elasticity similar to steel
8. Coefficient of thermal expansion similar to iron
| Properties | Unit | Steatite ceramic | 95% Al2O3 | 99% Al2O3 | Zirconia Ceramic |
| Density | g/cm³ | 2.8 | 3.6 | 3.8 | 5.6 |
| Flexural strength | Mpa | 145 | 300 | 300 | 354 |
| Max Working Temperature | ℃ | 1100 | 1400 | 1600 | 1400 |
| Sintering temperature | ℃ | 1350 | 1700 | 1750 | 1550 |
| Heat resistance | T(℃) | 200 | 220 | 200 | 350 |
| Hardness | Gpa | 5.7 | 7 | 10.7 | 12.3 |
| Elastic modulus | Gpa | 120 | 275 | 320 | 205 |
| Poissons ratio | - | 0.21 | 0.22 | 0.22 | 0.30 |
| Linear expansion coefficient | x 10-6/℃ | 7.9 | 7.1 | 7.8 | 9 |
| Insulation breakdown Intensity | KT/mm | 10 | 16 | 18 | 15 |
| Thermal conductivity | w/(m.k) | 2.5 | 20 | 25 | 2.5 |
| Specific Heat | *10-3J/(kg*K) | 0.75 | 0.78 | 0.78 | 0.4 |
