Product Details
Place of Origin: CHINA
Brand Name: MH
Certification: ISO9001 RoHS
Model Number: MH-99415
Payment & Shipping Terms
Minimum Order Quantity: 300 pcs
Price: USD 0.3-6 PCS
Packaging Details: CARTON/WOODEN BOX
Delivery Time: 15-20DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 PCS WEEK
Material: |
Zirconia Ceramic |
Color: |
White Or Black |
Density: |
5.9g/cm³ |
Working Temperature: |
1400 ℃ |
OEM,ODM: |
Acceptable |
Sample: |
Available |
Hardness: |
12.3 Gpa |
Insulation Breakdown Intensity: |
15 KT/mm |
Size: |
Customized |
Material: |
Zirconia Ceramic |
Color: |
White Or Black |
Density: |
5.9g/cm³ |
Working Temperature: |
1400 ℃ |
OEM,ODM: |
Acceptable |
Sample: |
Available |
Hardness: |
12.3 Gpa |
Insulation Breakdown Intensity: |
15 KT/mm |
Size: |
Customized |

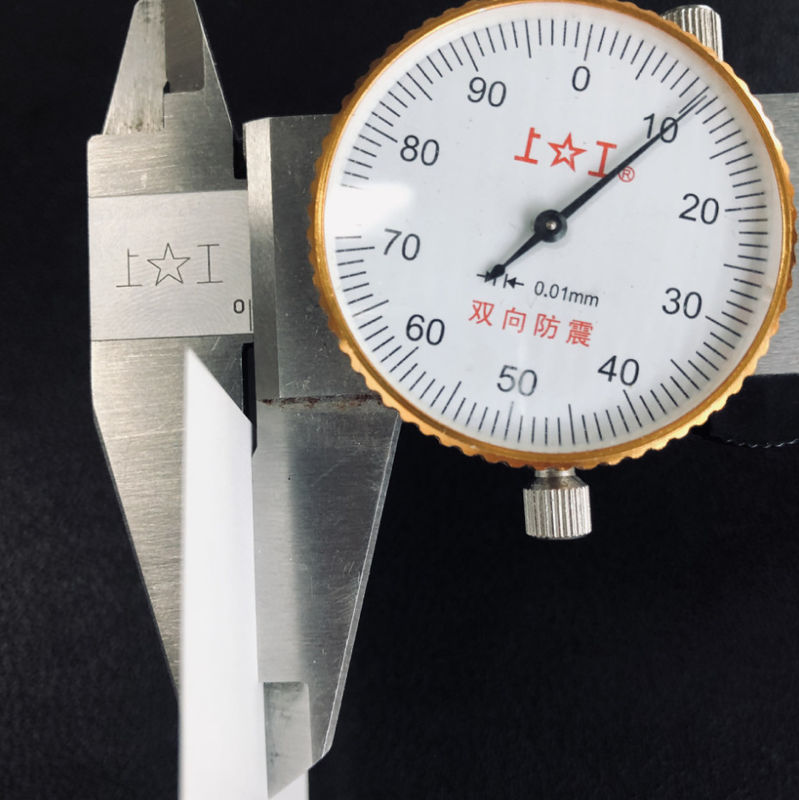

Zirconia ceramic substrate hard wearing yttria-stabilized zirconia plate
Features & Advantages
1. High strength
2. High hardness
3. Wear resistance
4. Non-magnetic
5. Electrical insulation
6. Corrosion resistance in acids and alkalis
7. Modulus of elasticity similar to steel
8. Coefficient of thermal expansion similar to iron
Zirconia Ceramic
Zirconia offers the traditional ceramic benefits of hardness,wear resistance and corrosion resistance,without the characteristic ceramic property of absolute brittleness.
| Properties | Unit | Steatite ceramic | 95% Al2O3 | 99% Al2O3 | Zirconia Ceramic |
| Density | g/cm³ | 2.8 | 3.6 | 3.8 | 5.6 |
| Flexural strength | Mpa | 145 | 300 | 300 | 354 |
| Max Working Temperature | ℃ | 1100 | 1400 | 1600 | 1400 |
| Sintering temperature | ℃ | 1350 | 1700 | 1750 | 1550 |
| Heat resistance | T(℃) | 200 | 220 | 200 | 350 |
| Hardness | Gpa | 5.7 | 7 | 10.7 | 12.3 |
| Elastic modulus | Gpa | 120 | 275 | 320 | 205 |
| Poissons ratio | - | 0.21 | 0.22 | 0.22 | 0.30 |
| Linear expansion coefficient | x 10-6/℃ | 7.9 | 7.1 | 7.8 | 9 |
| Insulation breakdown Intensity | KT/mm | 10 | 16 | 18 | 15 |
| Thermal conductivity | w/(m.k) | 2.5 | 20 | 25 | 2.5 |
| Specific Heat | *10-3J/(kg*K) | 0.75 | 0.78 | 0.78 | 0.4 |
