Product Details
Place of Origin: CHINA
Brand Name: MH
Certification: ISO9001 ROHS
Model Number: MH01
Payment & Shipping Terms
Minimum Order Quantity: 200 pcs
Price: USD 0.9-1.2/PCS
Packaging Details: Export carton
Delivery Time: 15-20DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 PCS mounth
Material: |
Zirconia Ceramic |
Color: |
White |
Density: |
5.9g/cm³ |
Working Temperature: |
1400℃ |
OEM,ODM: |
Acceptable |
Origin: |
China |
MOQ: |
200 Pcs |
Package: |
Carton |
Material: |
Zirconia Ceramic |
Color: |
White |
Density: |
5.9g/cm³ |
Working Temperature: |
1400℃ |
OEM,ODM: |
Acceptable |
Origin: |
China |
MOQ: |
200 Pcs |
Package: |
Carton |

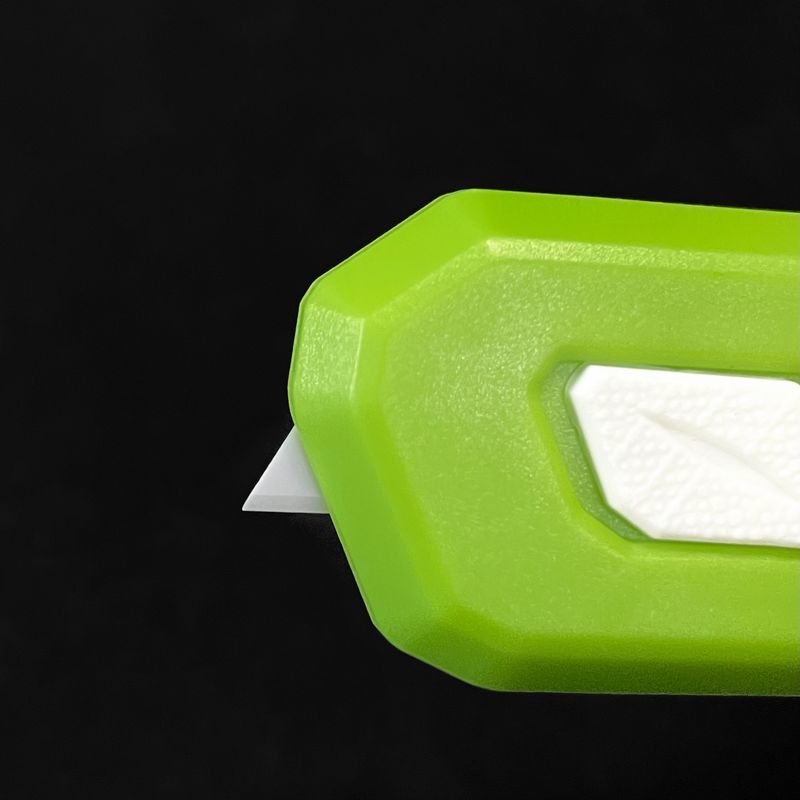

Wholesale zirconia Ceramic custom mini utility ceramic knife box cutter
Zirconia Ceramic blades are very suitable for fibers, tapes, film, leather, paper cutting machine application. Our material is yttrium stabilizes zirconia ceramic. Unlike other ceramic matetials, Zirconia ceramic is a material with high flexural roughness.Therefore it is not fragile and proper for producing blades. Another advantage is very sharp. Cutting performace is better than Tungsten carbide.
Applications:
> Ceramic Capsule Cutters
> Ceramic Exacto-style Blades and Cutters
> Large Ceramic Trimmer Blades
> Ceramic Blades and Components used in Medical Devices
> Ceramic Receipt Cutters and Blades
> Close up view of Receipt Cutters
| Properties | Unit | Steatite ceramic | 95% Al2O3 | 99% Al2O3 | Zirconia Ceramic |
| Density | g/cm³ | 2.8 | 3.6 | 3.8 | 5.6 |
| Flexural strength | Mpa | 145 | 300 | 300 | 354 |
| Max Working Temperature | ℃ | 1100 | 1400 | 1600 | 1400 |
| Sintering temperature | ℃ | 1350 | 1700 | 1750 | 1550 |
| Heat resistance | T(℃) | 200 | 220 | 200 | 350 |
| Hardness | Gpa | 5.7 | 7 | 10.7 | 12.3 |
| Elastic modulus | Gpa | 120 | 275 | 320 | 205 |
| Poissons ratio | - | 0.21 | 0.22 | 0.22 | 0.30 |
| Linear expansion coefficient | x 10-6/℃ | 7.9 | 7.1 | 7.8 | 9 |
| Insulation breakdown Intensity | KT/mm | 10 | 16 | 18 | 15 |
| Thermal conductivity | w/(m.k) | 2.5 | 20 | 25 | 2.5 |
| Specific Heat | *10-3J/(kg*K) | 0.75 | 0.78 | 0.78 | 0.4 |
