YSZ Zro2 High Temperature Ceramic Tube Brazing Ceramic Tube For Furnace

Place of Origin CHINA
Brand Name MH
Certification ISO9001 ROHS
Model Number MH063
Minimum Order Quantity 100 pcs
Price USD 0.5-5/PCS
Packaging Details Export carton
Delivery Time 15-20DAYS
Payment Terms L/C, T/T, Western Union
Supply Ability 5000 PCS WEEK

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Zirconia Ceramic Color White
Density 5.9g/cm³ Working Temperature 1400℃
OEM,ODM Acceptable Origin China
MOQ 100 Pcs Package Carton
High Light

YSZ high temperature ceramic tube

,

zro2 high temperature ceramic tube

,

brazing ceramic tube for furnace

Leave a Message
Product Description

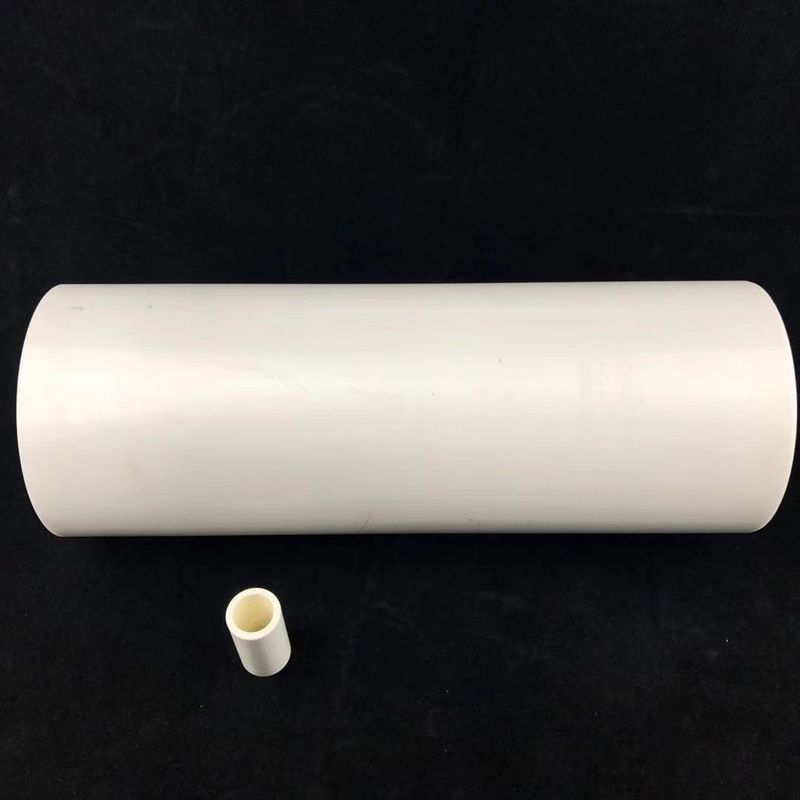

YSZ zirconia ceramic tube in vacuum brazing furnace



Zirconia ceramic are widely used in Welding pins, Positioning tools, Machine components including shaft, plunger, high-pressure cleaning machines, sealing structure, auto mobile industry, oil drilling equipment, insulation parts in electrical equipment, ceramic knife, ceramic hair clipper spare parts, with high density, bending strength and breaking tenacity.



Advantage
1 High hardness
2 High toughness
3 good Corrosion resistance
4 Low friction coefficient

5 good wear resistance





Properties Unit Steatite ceramic 95% Al2O3 99% Al2O3 Zirconia Ceramic
Density g/cm³ 2.8 3.6 3.8 5.6
Flexural strength Mpa 145 300 300 354
Max Working Temperature 1100 1400 1600 1400
Sintering temperature 1350 1700 1750 1550
Heat resistance T(℃) 200 220 200 350
Hardness Gpa 5.7 7 10.7 12.3
Elastic modulus Gpa 120 275 320 205
Poissons ratio - 0.21 0.22 0.22 0.30
Linear expansion coefficient x 10-6/℃ 7.9 7.1 7.8 9
Insulation breakdown Intensity KT/mm 10 16 18 15
Thermal conductivity w/(m.k) 2.5 20 25 2.5
Specific Heat *10-3J/(kg*K) 0.75 0.78 0.78 0.4





YSZ Zro2 High Temperature Ceramic Tube  Brazing Ceramic Tube For Furnace 0YSZ Zro2 High Temperature Ceramic Tube  Brazing Ceramic Tube For Furnace 1YSZ Zro2 High Temperature Ceramic Tube  Brazing Ceramic Tube For Furnace 2



YSZ Zro2 High Temperature Ceramic Tube  Brazing Ceramic Tube For Furnace 3





YSZ Zro2 High Temperature Ceramic Tube  Brazing Ceramic Tube For Furnace 4YSZ Zro2 High Temperature Ceramic Tube  Brazing Ceramic Tube For Furnace 5
