Product Details
Place of Origin: CHINA
Brand Name: MH
Certification: ISO9001 RoHS
Payment & Shipping Terms
Minimum Order Quantity: 200 pcs
Price: USD 0.1-6 PCS
Packaging Details: CARTON/WOODEN BOX
Delivery Time: 15-20DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 PCS WEEK
Material: |
Zirconia Ceramic |
Color: |
White Or Black |
Density: |
5.9g/cm³ |
Working Temperature: |
1400 ℃ |
OEM,ODM: |
Acceptable |
Sample: |
Available |
Hardness: |
12.3 Gpa |
Insulation Breakdown Intensity: |
15 KT/mm |
Material: |
Zirconia Ceramic |
Color: |
White Or Black |
Density: |
5.9g/cm³ |
Working Temperature: |
1400 ℃ |
OEM,ODM: |
Acceptable |
Sample: |
Available |
Hardness: |
12.3 Gpa |
Insulation Breakdown Intensity: |
15 KT/mm |

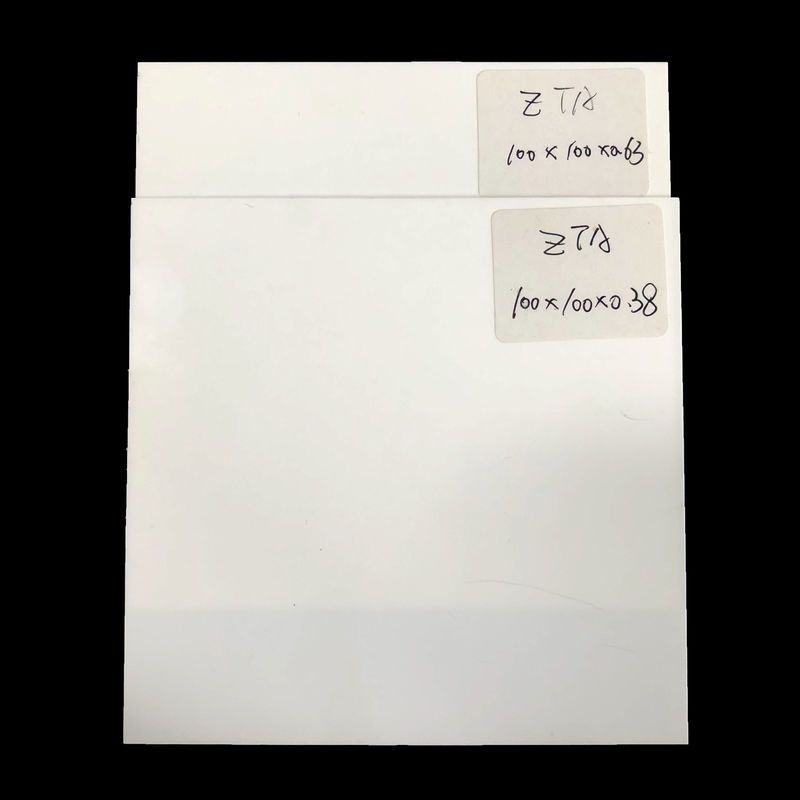

Polished YSZ ZTA Zirconia Ceramic substrate
Zirconia-toughened alumina ceramics, a particle size composition of the main component of alumina in the preparation of
ceramiccylinder liners for drilling pumps, with an average particle size of 60-70 wt% in the range of 0.8-1.0 μm and an averageparticlesize of 30-40 wt% of 1.0 -2.8μm range of two types of alumina. Add 15vol% of zirconia (containing 2 ~ 3mol% of yttriumoxide), addappropriate amount of dispersant, mix by ball milling, spray granulation, isostatic pressing, and fire in the temperature range of1550 ~ 1620 C, it can be prepared for more than 2000 hours ceramic cylinder liner,and the formingand firing yield is high, and the raw material and process costs are low. The performance of zirconia-toughened alumina ceramics is better than 99 aluminaceramics, and the price is much lower than that of zirconia ceramics.Many occasions where alumina ceramics are incompetent show a better performance-price ratio than zirconia ceramics.
Features & Advantages
1. High strength
2. High hardness
3. Wear resistance
4. Non-magnetic
5. Electrical insulation
6. Corrosion resistance in acids and alkalis
7. Modulus of elasticity similar to steel
8. Coefficient of thermal expansion similar to iron
| Properties | Unit | Steatite ceramic | 95% Al2O3 | 99% Al2O3 | Zirconia Ceramic |
| Density | g/cm³ | 2.8 | 3.6 | 3.8 | 5.6 |
| Flexural strength | Mpa | 145 | 300 | 300 | 354 |
| Max Working Temperature | ℃ | 1100 | 1400 | 1600 | 1400 |
| Sintering temperature | ℃ | 1350 | 1700 | 1750 | 1550 |
| Heat resistance | T(℃) | 200 | 220 | 200 | 350 |
| Hardness | Gpa | 5.7 | 7 | 10.7 | 12.3 |
| Elastic modulus | Gpa | 120 | 275 | 320 | 205 |
| Poissons ratio | - | 0.21 | 0.22 | 0.22 | 0.30 |
| Linear expansion coefficient | x 10-6/℃ | 7.9 | 7.1 | 7.8 | 9 |
| Insulation breakdown Intensity | KT/mm | 10 | 16 | 18 | 15 |
| Thermal conductivity | w/(m.k) | 2.5 | 20 | 25 | 2.5 |
| Specific Heat | *10-3J/(kg*K) | 0.75 | 0.78 | 0.78 | 0.4 |
